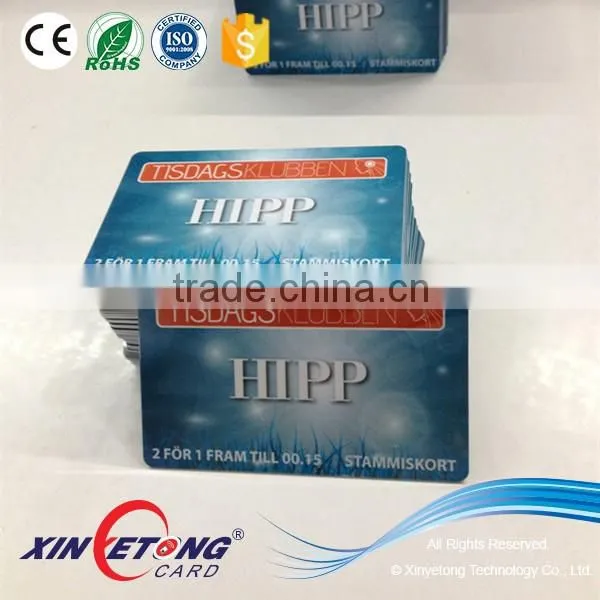

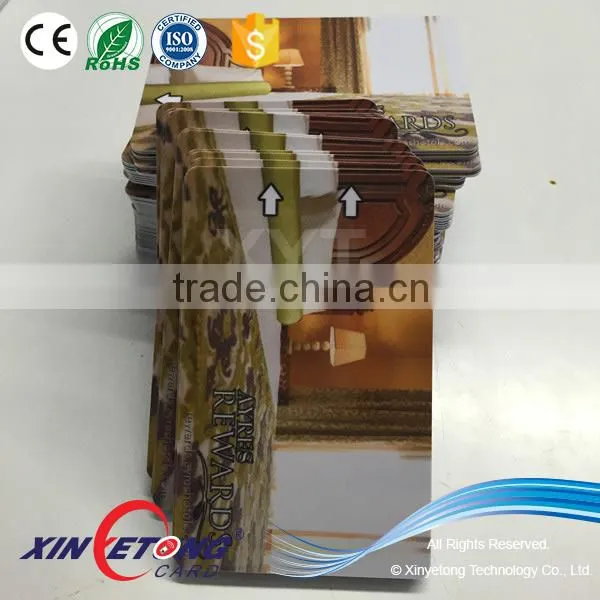

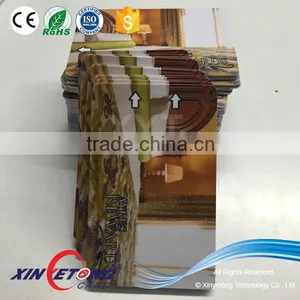

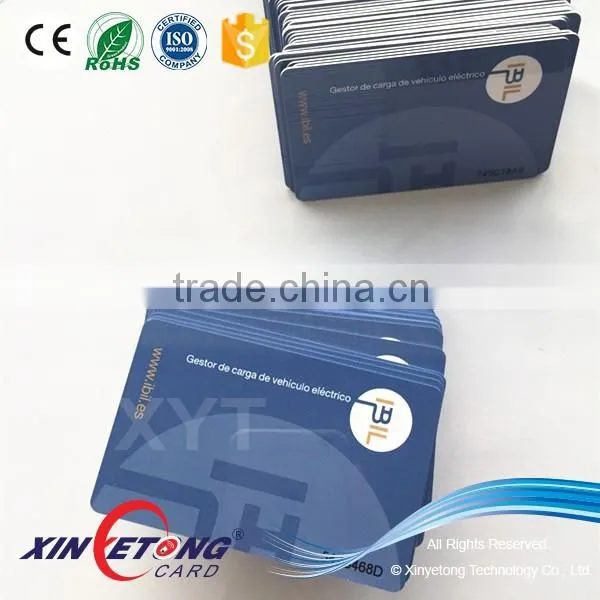

Low Cost of 1K Compatible F08 RFID Card Printable
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Commodity: Compatible 1k RFID Cards
1.Material:Paper ,PVC ,PET,ABS.
2.Size:85*54mm or customize
3.Thickness:0.6mm ,0.84mm
4.Blank white or Logo Printing
5.Available Chip:S50 / F08
6.Artwork:CMYK printing ,Chip encoding.
Running number ,Signature panel
Magetic Stripe ,Barcode .........
-------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------
2.1 MI ‚ RF Interface (ISO/IEC 14443 A)
1.Contactless transmission of data and supply energy (no battery needed)
2.Operating distance: Up to 100mm (depending on antenna geometry)
3.Operating frequency: 13.56 MHz
4. Data transfer: 106 kbit/s
5.Data integrity: 16 Bit CRC, parity, bit coding, bit counting
6.Anticollision
7.Typical ticketing transaction: < 100 ms (including backup management)
2.2 EEPROM
1.1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of
16 byte)
2.User definable access conditions for each memory block
3.Data retention of 10 years.
4. Write endurance 100.000 cycles
2.3 Security
1. Mutual three pass authentication (ISO/IEC DIS 9798-2)
2. Individual set of two keys per sector (per application) to support multi-application with
key hierarchy
3.Unique serial number for each device
2.4Key applications
• Public transportation
• Access control
• Event ticketing
• Gaming & identity
-------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------
Packaging & Delivery
Packaging Detail:200pcs inner box ,10boxes inner carton,carton size:520*250*160mm
Weight:1000pcs /7kg
-------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------
