We manufacture a comprehensive range of livestock panel, from portable to permanent yards for for Sheep, Cattle, Goat & Alpaca,

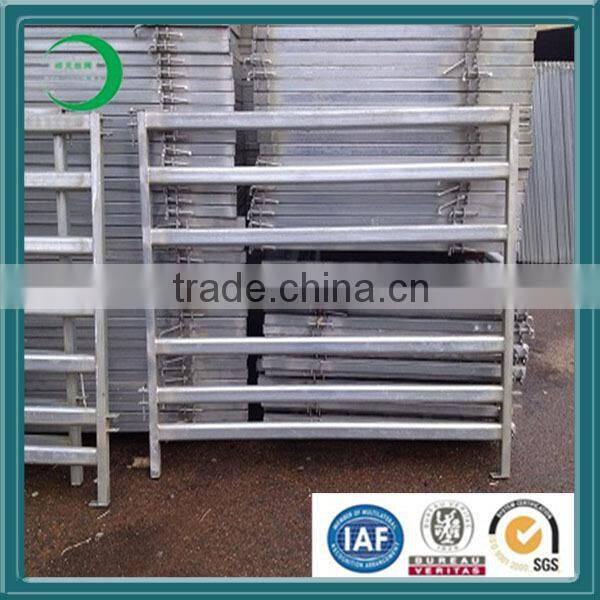

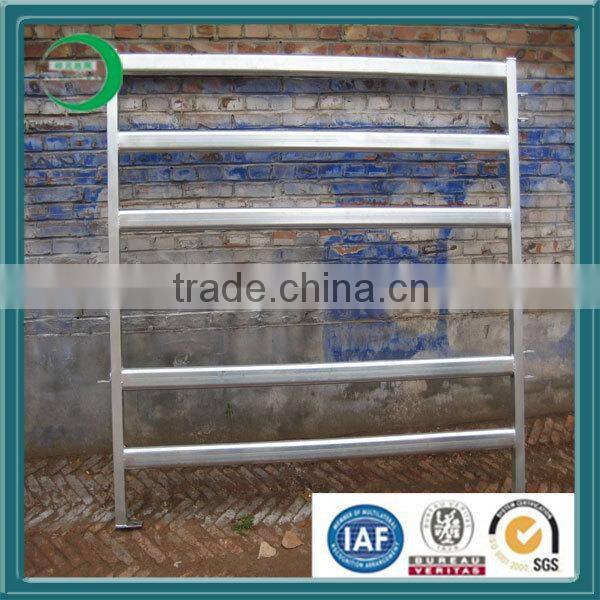

Can be used as a portable or permanent fencing solution for livestock. The Panels are perfect for uneven or steep terrain and the measure 2.1m x 1.8m high and are made out of 32mm heavy duty hot dipped galvanised pipe to the Ausralia standard 42 microns.
Being held together by heavy duty pins the strength of these panels together will make a safe and secure livestock holding yard or arena. Each panel has six rails, post caps, and feet and are great for small family pastures or your large equestrian centers.
Hot dipped galvanized sheep yard panel
Horse yard are safety and durability, All hardware including hinges, lugs are galvanized
Specifications
Cattle Panels
1.OEM accept
2.Small sample is free
3.Hot dipped galvanized,80-120g/m2
4.China factory with low price
1. Briefy introduction of cattle panels:
All products are manufactured using high quality pregalvanized RHS&pipe. We also supply swing
gate in frames that can be joined to the yard panels with the use of pins.
If required we can also manufacturer panels&all other yard accessories to individual requirements,
design, drawings or your ideas. This include all sizes&weight of RHS, oval& pipe steel.
2.Materials: high quality carbon steel tube or pipe, Q235 grade.
3.Anti corrosion form:
pre hot dipped galvanized, zinc coated: 80-120g/m²
4. Regular specifications of cattle panels:
Three different types of cattle panel can be supplied, say, round pipe cattle panels, square tube cattle panels& oval rails cattle panels.
panels size: 1800mm height x 2100mm width
2 vertical pipes and 6 horizontal pipes.
Both vertical& horizontal rails are O.D.32mm pips or O.D.42mm pipe at client’s request.
1 set panels includes: 2 top caps, lugs, pins and foot plate

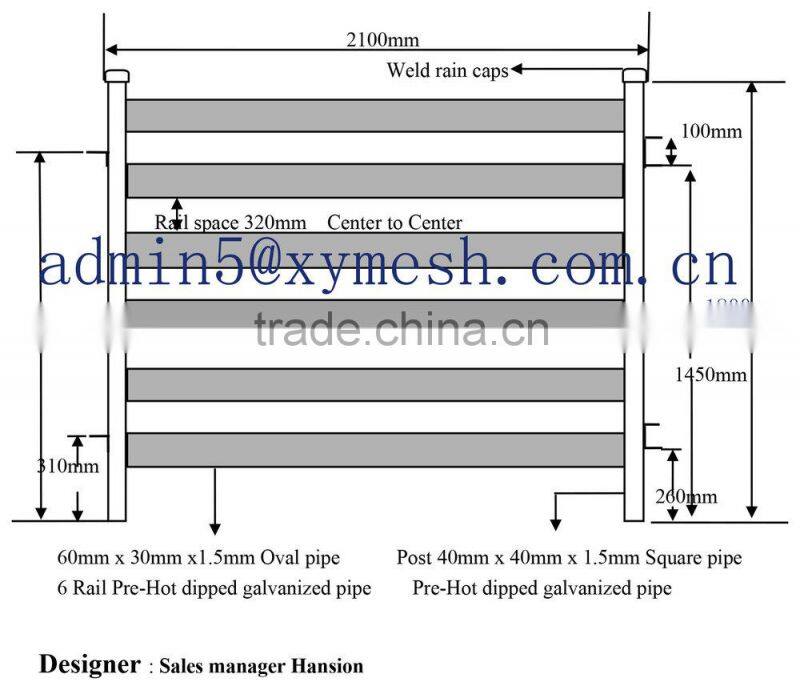

Specification1:
panels size: 1800mm height x 2100mm width
Vertical square rails: 40x40mm RHS, 2 bars
Horizontal oval rails: 60x30mm, 6 bars
1 set includes: 2 rain caps, 2 U lugs, 2 L lugs, 2 pins and foot plate.
Specification 2:
panels size: 1800mm height x 2100mm width
Vertical square rails: 50x50mm RHS, 2 bars
Horizontal oval rails: 80x40mm, 6 bars
1 set includes: 2 rain caps, 2 U lugs, 2 L lugs, 2 pins and foot plate
Our factory:
