High Purity 240 Class Anodized Oxidative Aluminum Wire Manufacturers
- Qingdao Shanghao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | MG | |
| Model Number | anodized aluminum wire | Type | Insulated | |
| Application | Other, lifting electromagnet | Conductor Material | Aluminum | |
| Conductor Type | Solid | Insulation Material | Other, anodized aluminum wire |
Product Description
high purity 240 class anodized oxidative aluminum wire manufacturers

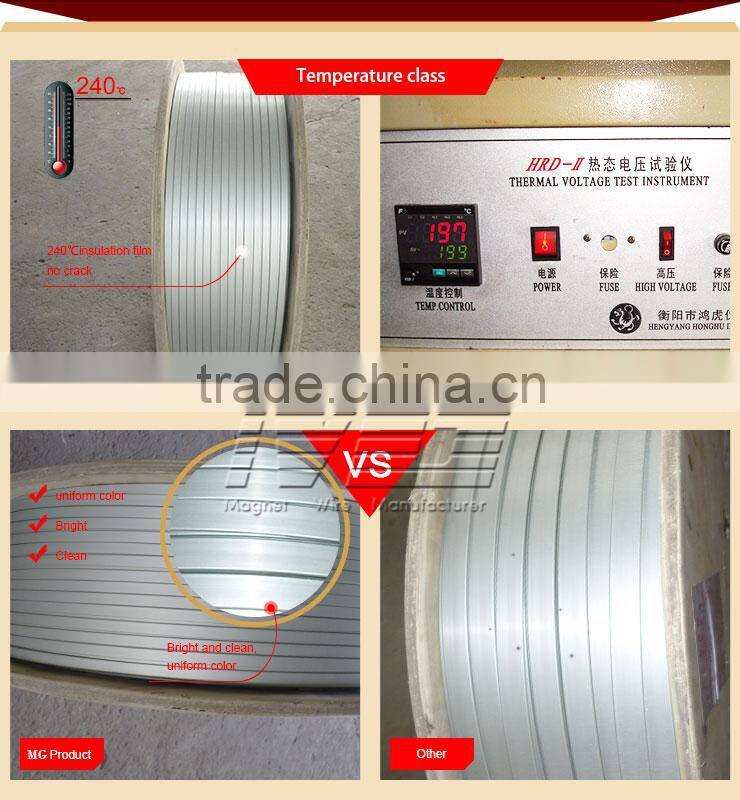

1. Features of anodized aluminum wire

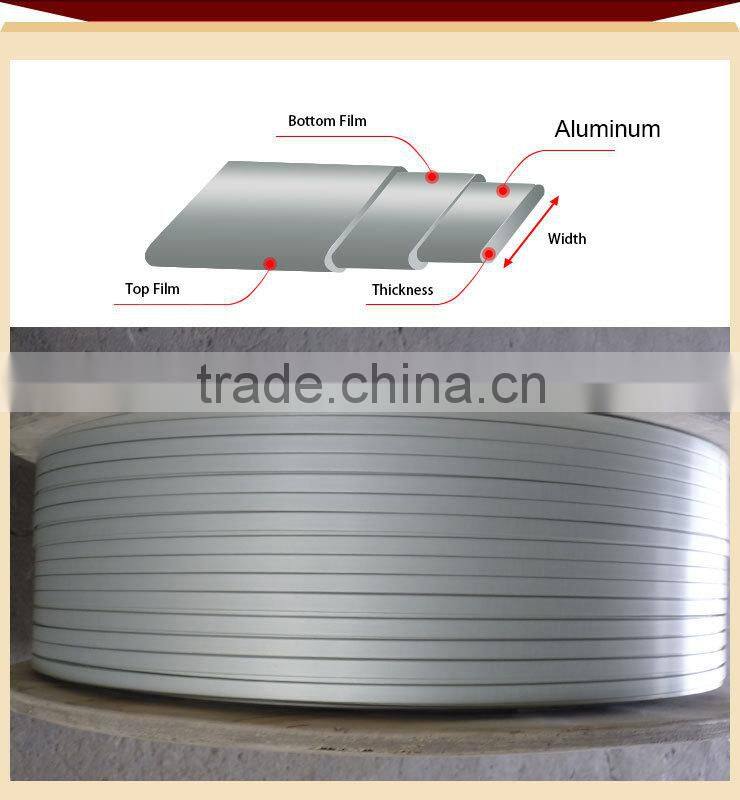

- Our Oxidative Round/Flat Aluminum Wire(Strip)’s insulation layer is AL2O3. The layer has smooth surface, no abrasion and uniform color.
- Our Oxidative Round/Flat Aluminum Wire(Strip) uses special technology and can reduce cost.
- Our Oxidative Round/Flat Aluminum Wire(Strip) can apply for low-voltage windings which uses with high temperature, bad environment and heat dissipation difficulty.
- Our Oxidative Round/Flat Aluminum Wire(Strip) has fine insulation layer, good heat resistance and stable insulation.
2. Adwantages of anodized aluminum wire
♦ Square Wire are available
♦ Varieties of wires,Stable quality
♦ Timely, continuous after-sales service
♦ Professional Tech and sales Work Team
♦ Safe and variety packing terms are available
♦ Double or Three Type Insultaions covered wires are available
♦ NEMA/IEC/JIS/GB and any Local Standards base on requirements

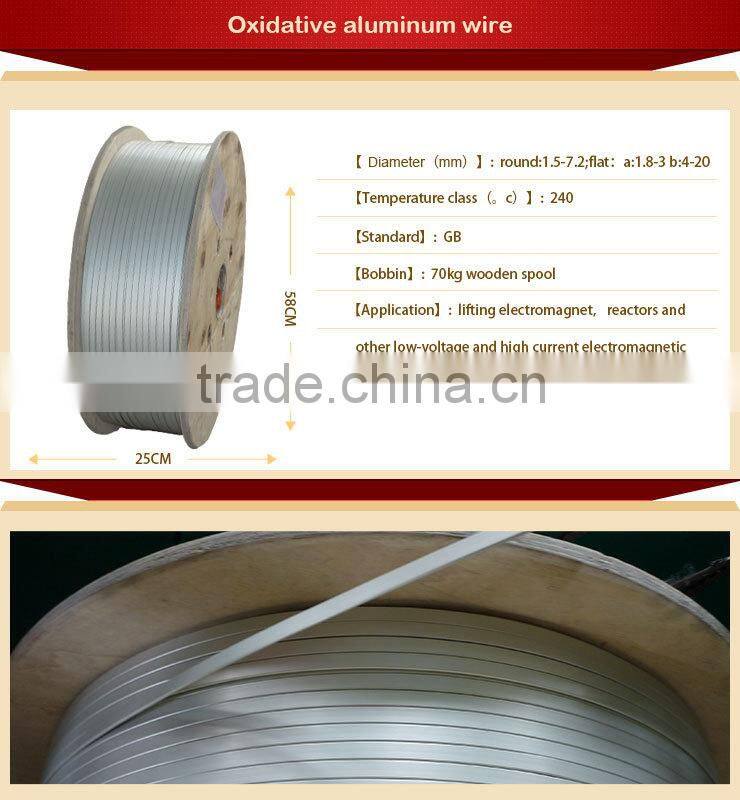

3. Reference parameter anodized aluminum wire as follows:
Diameter: 3.00mmx 15.0mm
Standard: GB/T7672.3-2008
No | Test Item | Unit | Technical Requirement | Test Result | |
1 | Appearance |
| Smoothly, evenly | PASS | |
2 | Conductor Diameter | a | mm | ±0.03 | 3.001mm |
b | mm | ±0.07 | 15.00mm | ||
3 | insulation Thickness | mm | ≥0.005mm | 0.009mm | |
4 | Anti-abrasion | times | Minimum ≥40times | PASS | |
Average ≥50 times | PASS | ||||
5 | Resistance (20℃) | Ω/mm2m | <0.02785 | 0.02777 | |
6 | Winding Test |
| Φ 150mm testing rod. ,No crack | PASS | |
7 | Breakdown Voltage | V | ≥160v | 350, 290, 390, 410 | |
8 | Package |
| Meet Export Standards | PASS | |
| Quality Control Result |
| Pass | ||
We are a enterprise which is widely known in the industry for the excellent range of anodized aluminum wire products, which we offer to our customers. We are a high profile supplier, manufacturer and an exporter of a wide range of oxidative flat aluminum wire ,which are made using a superior range.Our products are made available to the customers at very reasonable rates in the market.Main application including:
♦ Lifting electromagnet
♦ Reactors
♦ Other low-voltage and high current electromagnetic winding and so on.

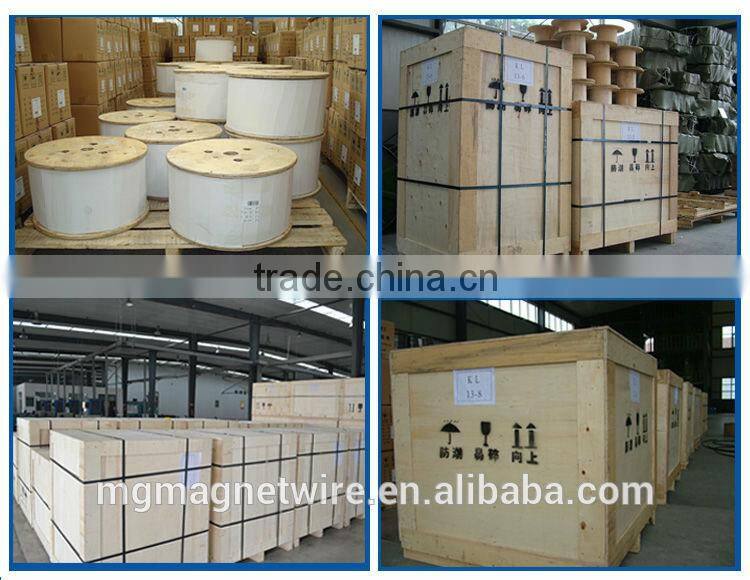

We will try our best to send the Oxidative Flat Aluminum Wire to your city as soon as possible. Carton and wooden box will be used as double protection to protect the product from wear and tear during transport.

HENAN MG MAGNET WIRE.,LTD. is a professional supplier of magnet wires and electrical materials. From the company founded till now, our company has been committed to providing professional Enameled Magnet wires , winding Magnet Wires and Electrical materials for customers.

An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing enameled magnet wire and winding magnet wire market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, sureness and steadiness,providing best service,devotion and dedication".Please feel free to contact us at any time.

- Enameled Square Copper Wire
- Enameled Square Aluminum Wire
- Enameled Round Aluminum Wire
- Enameled Flat Aluminum Wire
- Enameled Flat Copper Wire
- Fiber Glass Covered Wire
- Paper Covered Wire
- Enameled Round Copper Wire
- Acetal(polyvinyl formal) Enameled Wire
- Kapton Copper Wire
- Enameled Copper Clad Aluminum Wire
- Oxidative Aluminum Wire
- Nomex Paper Covered Wire

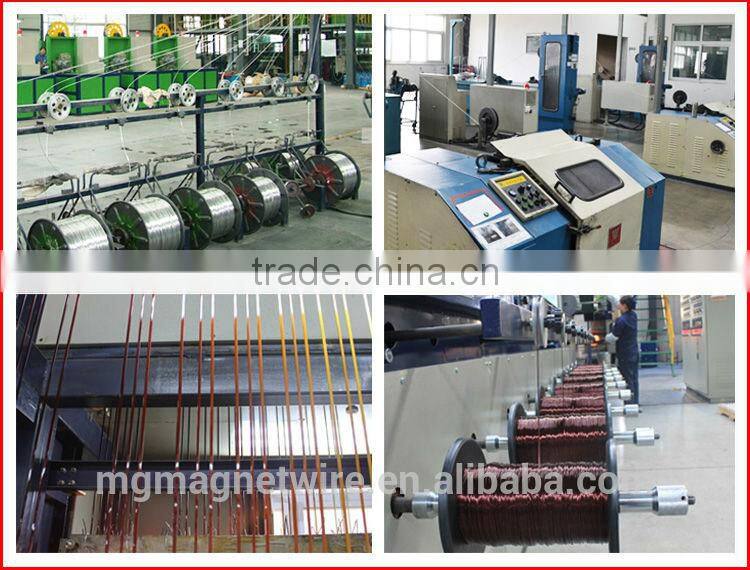

Our Company’s annual production is about 8,000 tons.
Our Company covers almost 100,000 square meters, including plant area of 80,000 square meters.
we have many kinds of products ,such as enameled aluminum wire, enameled copper wire, paper covered magnet wire, fiber glass covered magnet wire and so on.
We produce the thermal class of anodized aluminum wire from 240 Centigrade.
Gauge of enameled aluminum wire:Enameled round aluminum wire: 0.2mm-8.0mm Enameled flat aluminum wire: a: 1-10mm, b: 3-16mm
