Home > Products > Spanish Roof tiles > PVC Decorative Sheet Resin Roof Sheet With Same Corrugated as Gavanized Corrugated Materials

PVC Decorative Sheet Resin Roof Sheet With Same Corrugated as Gavanized Corrugated Materials

FOB Price

US$ 5 - 6 / Square Meter

500 Square Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

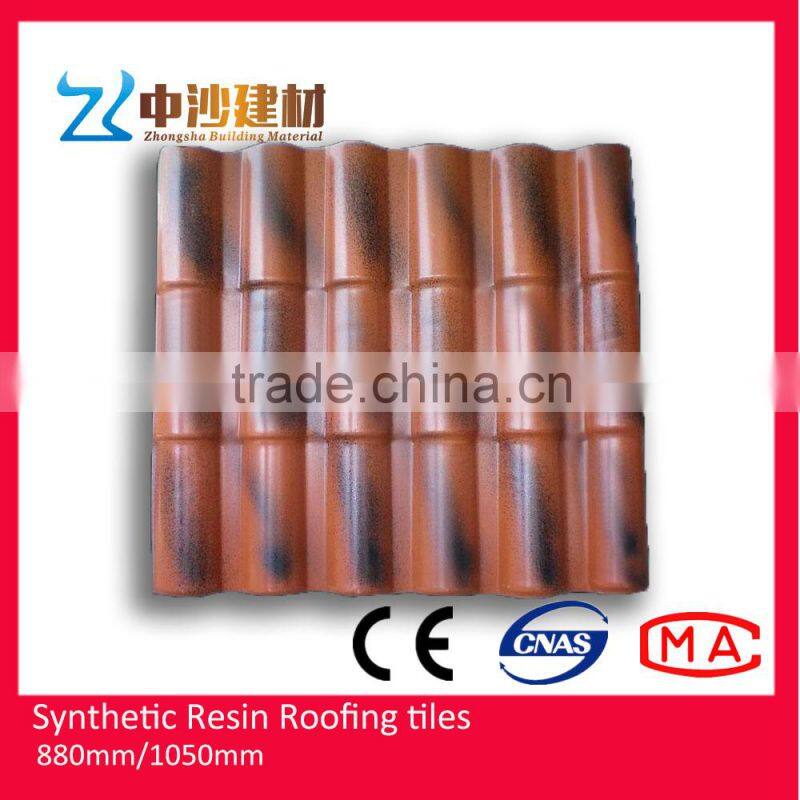

PVC decorative sheet resin roof sheet with same corrugated as gavanized corrugated materials

Product Description

We have width 880mm&1050mm,and length for customized,roof installation with interlocking,steable.

Items	Spec
RRT-880	Width	880mm( effective length is 800mm)	2.5MM =4.8kg/m²
	Wave height	30mm
	Wave Space	160mm
	Pitch length	219mm
	Surface material	ASA coated,color stable.	3.0MM=5.8kg/m²
	Length	Customized according to the times of pitch
	Thickness	2.5mm and 3mm
	Regular Colors	Red,Brown,Grey, Blue,Customized
	Packing	PE bag or pallet accroding length
Container load capcity	Thickness	SQ.M/20FCL(21 Tons)	SQ.M/40FCL(26Tons)
	2.5mm	4300M²	5400M²
	3.0mm	3600M²	4500M²

RRT-1050	Width	1050mm( effective length is 960mm)	2.5MM =4.8kg/m²
	Wave height	30mm
	Wave Space	160mm
	Pitch length	219mm
	Surface material	ASA coated,color stable.	3.0MM=5.8kg/m²
	Length	Customized according to the times of pitch
	Thickness	2.5mm and 3mm
	Regular Colors	Red,Brown,Grey, Blue,Customized
	Packing	PE bag or pallet accroding length
Container load capcity	Thickness	SQ.M/20FCL(21 Tons)	SQ.M/40FCL(26Tons)
	2.5mm	4300M²	5400M²
	3.0mm	3600M²	4500M²

We are the factory!All the samples would be free for you!

Features and Advantage:

1.High Weatherability and Enduring Colorfulness

2.Good Sound Insulation Effect

3.Good Thermal Insulation Effect

4.Low Temperature Endurance and Resistance Against Lashes

5.Excellent Anticorrosive Property

6.Outstanding Waterproof Property

7.Fire Resistance:Self extinguish off fire

8.Self-cleaning

9.Easy installation

10.Enviroment-friendly

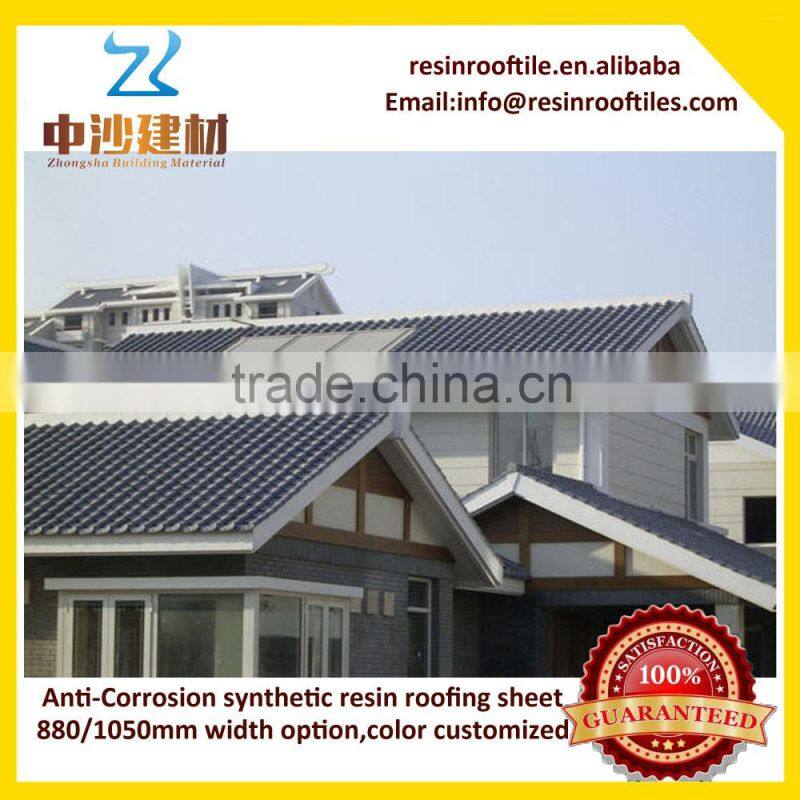

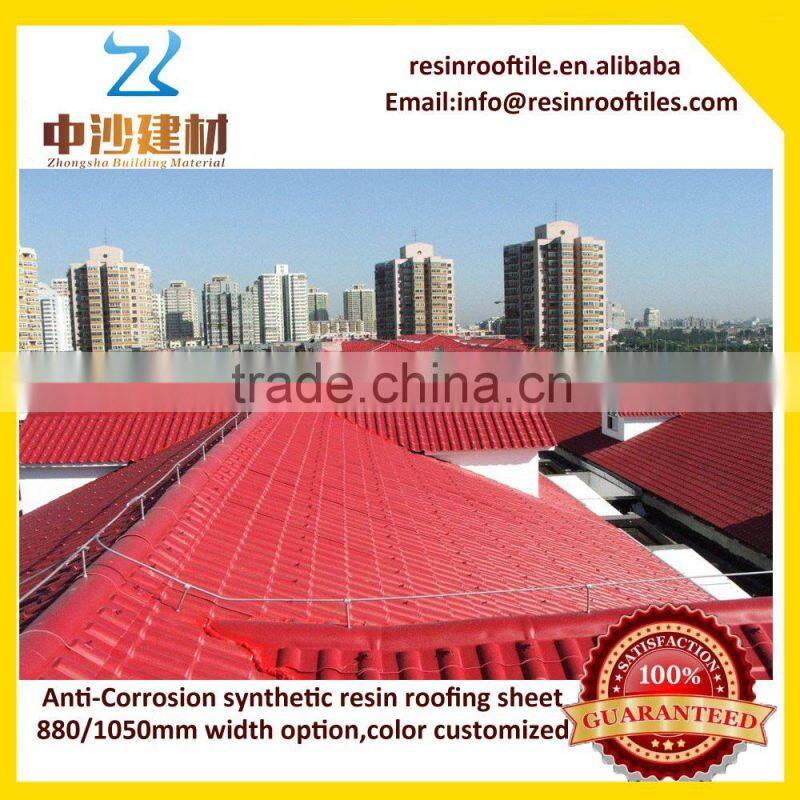

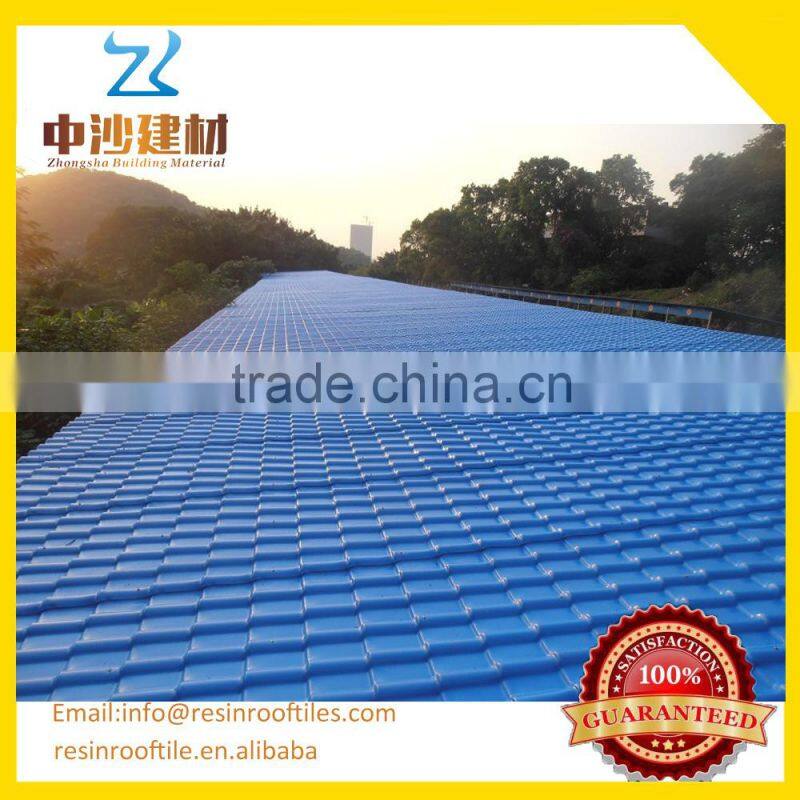

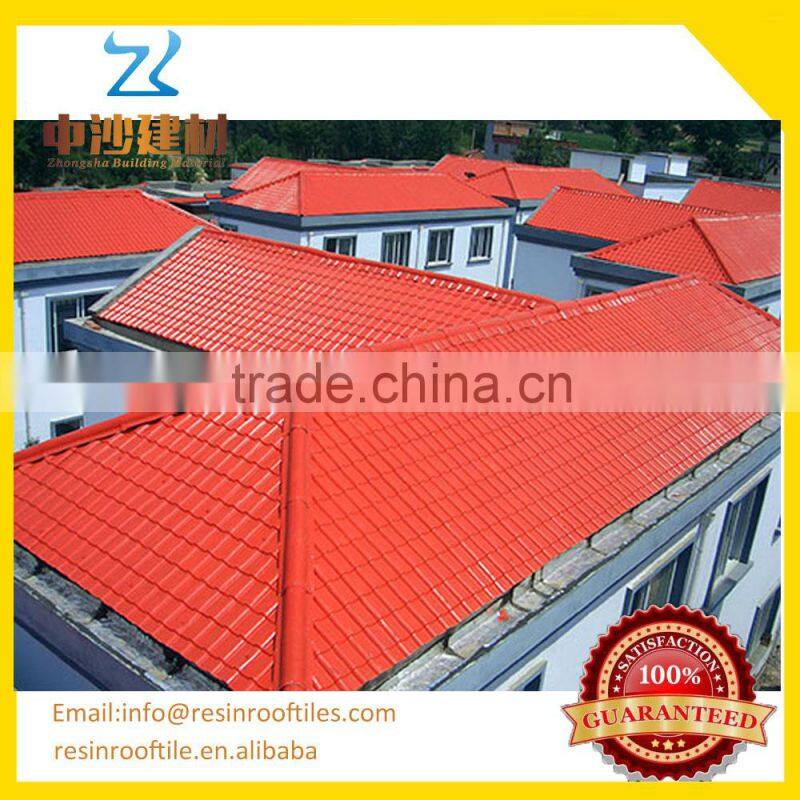

Application:Villa,Residential house,Sheds,Carports,Stadiums,Holiday villages,Mobile homes,Prefabricated houses,Garden Pavilion

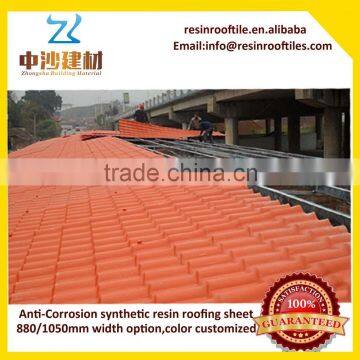

Install’s regulation &Process

Purline can choose square tube (60 × 40 × 3 mm) or steel (100 × 50 × 20 × 3 mm) or anti-corrosion wooden (60 × 40 mm).
Purline spacing is 660 mm, arranged from bottom to to
When main tile installed in accordance with local wind direction, reverse to install. Overlap a vapor, on both sides at the same time
Installing the main ridge tile is after cutting one section from the first ridge tile
Positive, oblique ridge tile installation lap department should saw in line, install three-way tile is after installing positive, oblique ridge.
fixed pieces is dedicated accessories. As fixing, firstly is use electric drill to drill, large diameter than the screw hook screw 2 mm.
Suggeste to select self-tapping screw of diameter is 6.3 mm

Our Services

Easy and fast Installation,the video can be send after the order confirmed.

Packaging & Shipping

FAQ

1.Are you Manufacture?

Yes,we have our own factory located in Changsha,and our office is in the same place.

2.What's the MOQ?

1 Meter

3.Can I get a free sample?

Yes,the sample is always available.

4.What's your main products?

We produce Synthetic resin roof tiles,ASA PVC sheet,APVC Sheet,and UPVC sheet,the price and quality and guarrantee are different.

5.I have a drawing for the project,can you let me know how much roof tiles we need to purchase?

Of course,we have unique department who can caculate your cost and the quantity for roof tiles and accessories.
