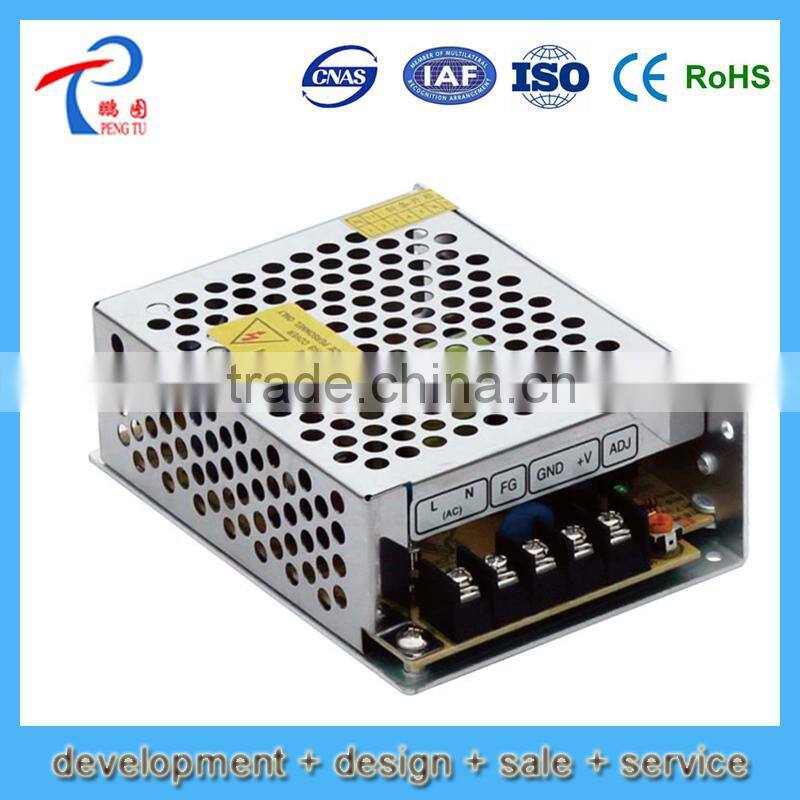

48vdc input switching power supply P25-B series
Product Description
Features
l Output overload, overvoltage, short circuit protection; Overtemperature protection for option
l With reference to the international safety regulation: UL/TUV/CB/CE
l Cooling by free air convection
l 100% full load burn-in test
l Three years warranty
Input Characteristic
l Inputvoltage range……………………90~130 VAC/ 176 ~ 264 VAC/ 85~264 VAC/ 210-370 VDC
l Input Frequency.....................................47~63Hz
l Inrush current.........................................Cold start 40A/230VAC
l Leakage current.....................................<0.5mA/240VAC
Output Characteristic
l Rated Power …….................………….25W
l Voltage adj. range ………………........±10% (Rated output voltage)
l Line Regulation............... …………....<0.5%
l Set up time...................... ………….......≤50ms/230VAC (Full load)
l Hold up time............. …………………≥20ms/230VAC (Full load)
General Characteristic
l Overload protection …… Above 105% rated output power/ Automatically recovers after fault conditions removed
l Overvoltage protection …Above 110% rated output voltage/ Automatically recovers after fault conditions removed
l Isolation characteristic … I/P-O/P: 1.5KVAC 1Min, I/P-FG: 1.5KVAC 1Min, O/P-FG: 0.5KVAC 1Min
l Anti-vibratility.......................10-500Hz, 5G 10min/ cycle, period for 60min, each axes
l Safety Regulation.................. Refer to UL60950-1, TUV EN60950-1
l EMC standard........................Refer to EN55022(CISPR22) class B. EN-61000-4-2,3,4,5,6,8,11
l Environmental Characteristic
Working temperature …………………… -10-+50℃
Storage temperature ……………….. -20~ +85℃
l Size...................................... 110*78*36mm
Models
Model |
Output Lines |
Power (W) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (%) |
P25S3.3-B |
Single |
25 |
3.3 |
5 |
50 |
70 |
P25S05-B |
5 |
5 |
50 |
73 |
||
P25S09-B |
9 |
2.8 |
100 |
76 |
||
P25S12-B |
12 |
2 |
100 |
78 |
||
P25S15-B |
15 |
1.5 |
120 |
79 |
||
P25S24-B |
24 |
1 |
150 |
79 |
||
P25S48-B |
48 |
0.5 |
150 |
81 |
||
P25D-A-B |
Dual |
5 |
0.4~4 |
100 |
70 |
|
(5V/5V) |
5 |
0.1~1 |
100 |
|||
P25D-B-B |
5 |
0.3~3 |
100 |
71 |
||
(5V/12V) |
12 |
0.1~1 |
100 |
|||
P25D-C-B |
5 |
0.3~2.5 |
100 |
71 |
||
(5V/24V) |
24 |
0.1~0.5 |
150 |
|||
P25D-D-B |
12 |
0.2~2 |
100 |
72 |
||
(12V/5V) |
5 |
0.1~1 |
100 |
|||
|
P25T-A-B (5V/12V/-5V) |
Triple |
5 |
0.3~3 |
100 |
69 |
|
12 |
0.1~1 |
120 |
||||
-5 |
0.1~1 |
100 |
||||
|
P25T-B-B (5V/12V/-12V) |
5 |
0.3~3 |
100 |
69 |
||
12 |
0.1~1 |
120 |
||||
-12 |
0.1~1 |
120 |
||||
|
P25T-C-B (5V/15V/-15V) |
5 |
0.3~2.5 |
100 |
70 |
||
15 |
0.1~0.8 |
150 |
||||
-15 |
0.1~0.8 |
150 |
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Remark: Custom-made specifications are acceptable.

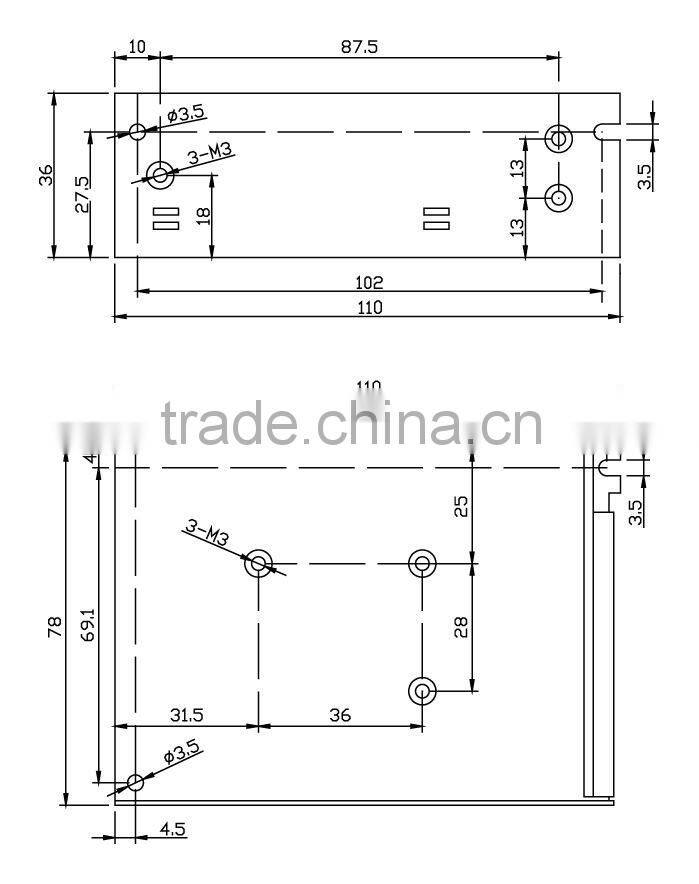

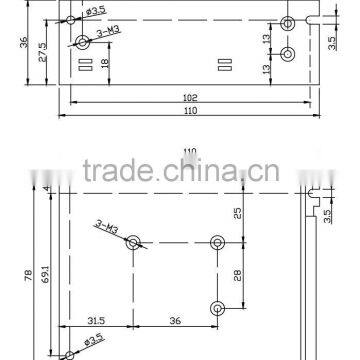

Mechanical drawing and pin definition
