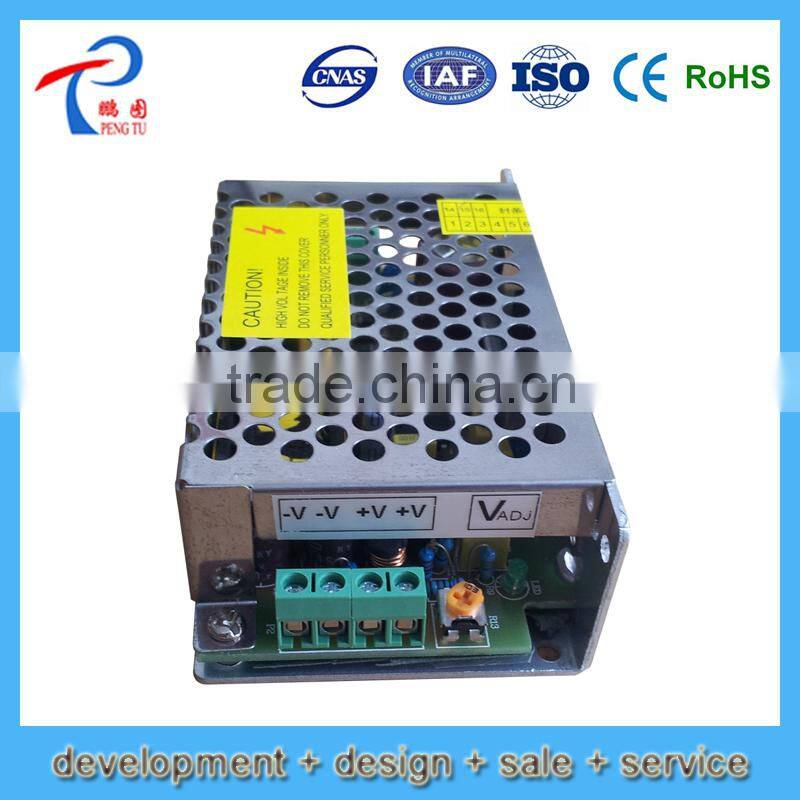

9v ac dc Power Spply Switched 220vac to 9v 15w P10-15-A Series

9v ac dc Power Spply Switched 220vac to 9v 15w P10-15-A Series thumbnail-1
9v ac dc Power Spply Switched 220vac to 9v 15w P10-15-A Series thumbnail-2
9v ac dc Power Spply Switched 220vac to 9v 15w P10-15-A Series photo-1
9v ac dc Power Spply Switched 220vac to 9v 15w P10-15-A Series photo-2
US$ 1 - 5.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
PengTu
Model Number:
P15S09-A
Contact Supplier Request Quote Chat Now
Nanjing Pengtu Power Supply Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name PengTu
Model Number P15S09-A
Output Power Other, 15W
Output Type Single
Input Voltage Other, 176-264VAC/85-264VAC/210-370VDC
Output Voltage 9VDC
Output Frequency 47-63KHz
Output Current 2A

9v ac dc power spply switched 220vac to 9v 15w    P10-15-A series






9v ac dc power spply switched 220vac to 9v 15w P10-15-A series





Product Description





Features



l     Output overload, overvoltage, short circuit protection; Overtemperature protection for option

l       With reference to the international safety regulation: UL/TUV/CB/CE

l       Cooling by free air convection

l       100% full load burn-in test

l       Three years warranty



Input Characteristic



l    Inputvoltage range……………………90~130 VAC/ 176 ~ 264 VAC/ 85~264 VAC/ 210-370 VDC

l    Input Frequency.....................................47~63Hz

l    Inrush current.........................................Cold start 40A/230VAC

l Leakage current.....................................<0.5mA/240VAC



Output Characteristic



l       Rated Power …….................………….....10-15W

l       Voltage adj. range ……………….............±10% (Rated output voltage)

l       Load regulation(main) …………….......…±0.4%

l       Line Regulation............... …………........…<0.5%

l       Set up time...................... ………….........… ≤50ms/230VAC (Full load)

l       Hold up time............. ……………………… ≥20ms/230VAC (Full load)





General Characteristic



l      Overload protection …… Above 105% rated output power/ Automatically recovers after fault conditions removed

l      Overvoltage protection.....Above 110% rated output voltage/ Automatically recovers after fault conditions removed

l      Isolation characteristic … I/P-O/P: 1.5KVAC 1Min, I/P-FG: 1.5KVAC 1Min, O/P-FG: 0.5KVAC 1Min

l      Anti-vibratility.......................10-500Hz, 5G 10min/ cycle, period for 60min, each axes

l      Safety Regulation.................. Refer to UL60950-1, TUV EN60950-1

l      EMC standard........................Refer to EN55022(CISPR22) class B. EN-61000-4-2,3,4,5,6,8,11

l      Environmental Characteristic

       Working temperature …………………… -10-+50℃

       Storage temperature ……………….. -20~ +85℃

l Size.............................................................. 100*58*31mm





Models



Model

Output Lines

Power (W)

Output V.(V)

Output Curr.(A)

Ripple (mv)

Efficieency (%)

P10S05-A

Single

10

5

2

80

72

P10S09-A

9

1.1

80

73

P12S12-A

12

1

100

76

P10S24-A

24

0.5

150

79

P10S48-A

48

0.2

150

80

P10D-A-A (5V/5V)

Dual

5

0.2~1.8

80

68

5

0.1~1

80

P10D-B-A  (5V/12V)

5

0.2~1.8

80

70

12

0.1~0.5

120

P10D-C-A (5V/24V)

5

0.2~1.8

80

72

24

0.05~0.3

150

P10T-A-A (5V/12V/-12V)

Triple

5

0.2~1.5

80

70

12

0.05~0.3

120

-12

0.05~0.3

120

P10T-B-A (5V/15V/-15V)

5

0.2~1.5

80

71

15

0.05~0.3

120

-15

0.05~0.3

120

P10T-C-A (5V/12V/-5V)

5

0.2~1.5

80

70

12

0.05~0.3

120

-5

0.1~0.5

80

P15S3.3-A

Single

15

3.3

3

80

65

P15S05-A

5

3

80

72

P15S09-A

9

1.7

80

73

P15S12-A

12

1.3

100

76

P15S15-A

15

1

120

78

P15S24-A

24

0.7

150

80

P15S48-A

48

0.3

150

81

P15D-A-A (5V/5V)

Dual

5

0.4~3.0

80

68

5

0.2~1.5

80

P15D-B-A (5V/12V)

5

0.4~3.0

80

69

12

0.05~1.0

120

P15D-C-A (5V/15V)

5

0.4~3.0

80

70

15

0.05~1.0

120

P15D-D-A (5V/24V)

5

0.4~3.0

80

71

24

0.1~0.7

150

P15T-A-A (5V/12V/-12V)

Triple

5

0.2~2

100

71

12

0.02~0.2

120

-12

0.02~0.2

120

P15T-B-A (5V/15V/-15V)

5

0.2~2

100

72

15

0.02~0.2

150

-15

0.02~0.2

150












If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.





 Remark: Custom-made specifications are acceptable.

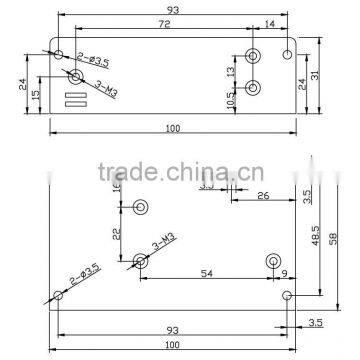

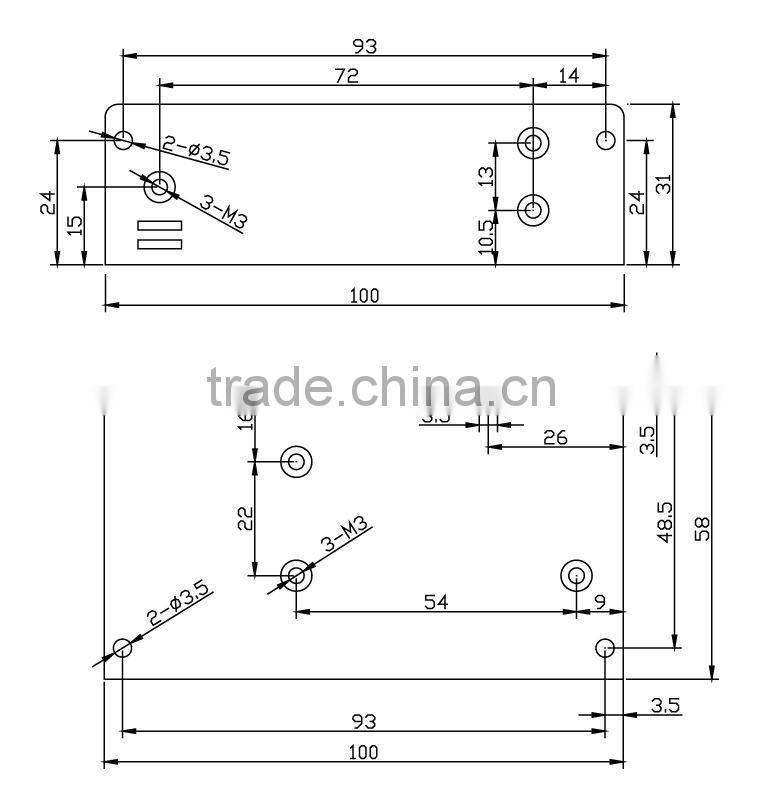

Mechanical drawing and pin definition





9v ac dc power spply switched 220vac to 9v 15w P10-15-A series
