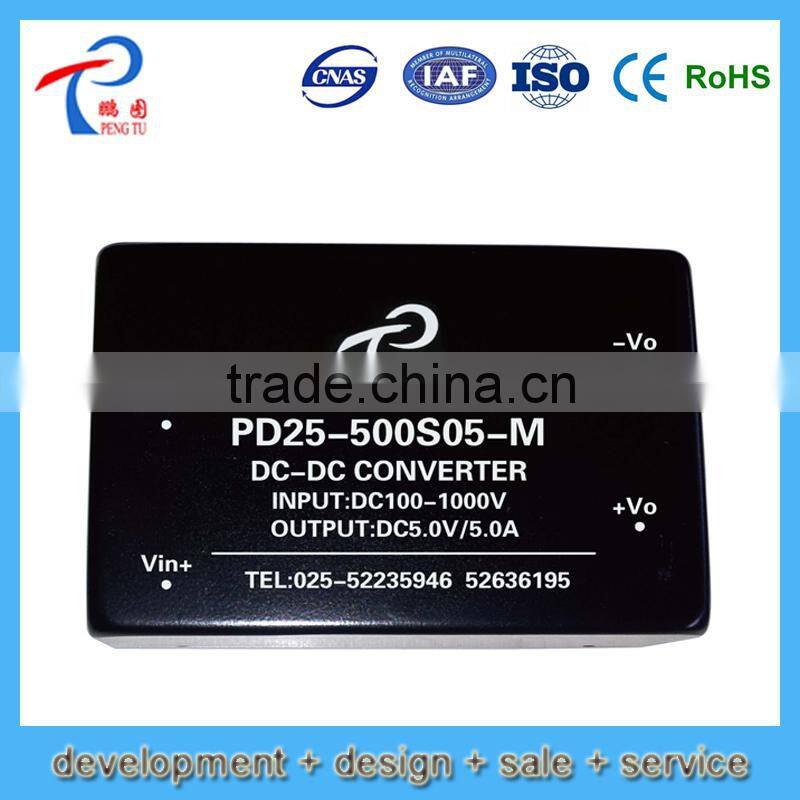

20w dc dc power converter 600v to 5v for solar pv
Features
l DC wide input voltage 100-1000V
l Design for high reliability, long lifetime
l High efficiency
l Industrial products technical design
l Excellent output short circuit & over temperature protection function
Input Characteristic
l Inputvoltage range…………………… 100~1000 VDC
Output Characteristic
l Output voltage seet-point accuracy……… ±1%
l Line regulation …………………………… ±0.5% (typ)
l Load regulation(10%~100%) …………… ±2% (typ)
l Minimum load …………………………… 0%
l Output ripple & noise (peak-peak) ……… 100mV (typ) (20MHz Bandwidth)
l Short circuit protection ………………… Continuous / automatic resume
l Output current limiting threshold ……… ≥1.1 times
General Characteristic
l Switching frequency …………………… 65~100 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output: >2000 VDC
Input-case: >2000 VDC
Output-case: >500 VDC
l Environmental Characteristic
Operation temperature ……………… Industry: -25-+60℃; MilitaryⅠ: -40~ +70℃; Military II: -40-+85℃
Storage temperature …………………… Industry: -45~ +105℃; Military: -55~ +105℃

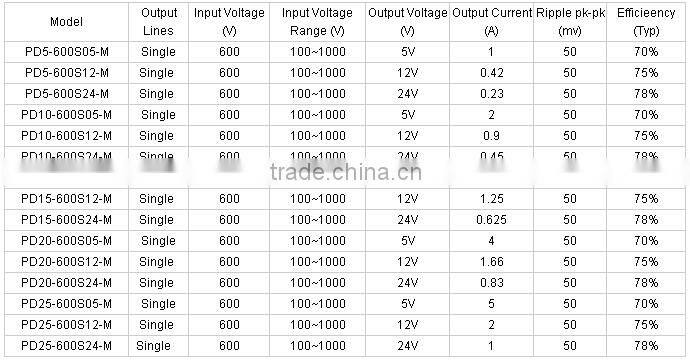

Models
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Remark: Custom-made specifications are acceptable.
Mechanical Drawing & Pin definition
Shipping:
Warranty and Guarantee:
Other Policies:
