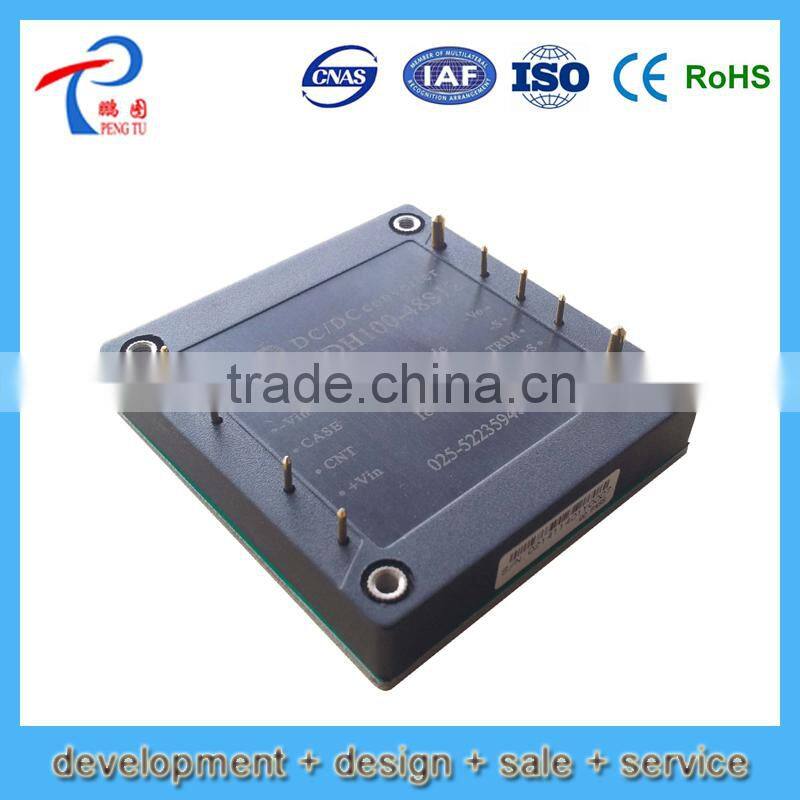

100w dc to dc power converter 5v 20a with factory price
Features
l Industry standard half brick
l Wide input voltage
l High voltage isolation
l Telecontrol and adjusted output available
Input Characteristic
l Inputvoltage range…………………… 18 ~ 36 VDC Rated value: 24VDC
36 ~ 75 VDC Rated value: 48VDC
66 ~ 160 VDC Rated value: 110VDC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage set-point accuracy ……………… ±1%
l Line regulation(main) ……….........……… ±0.3%
l Load regulation(main) ………........……… ±0.1%
l Temperature coefficient …………… ±0.01%/℃
l Output current limiting …………… 150%(Typ)
l Dynamic response ……………………… 400μs
l Power …………………………………… 50~200W
General Characteristic
l Switching frequency …………………… 300 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
l Environmental Characteristic
Operation temperature ……………… Industry: -25-+60℃; MilitaryⅠ: -40~ +70℃
Storage temperature …………………… Industry: -45~ +105℃; Military: -55~ +105℃
Models
| Model | Output Lines | Input V. (V) | Input V. Range (V) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (Typ) |
| PDH Series 50-200W | |||||||
| PDH100-24S3.3 | Single | 24 | 18-36 | 3.3 | 30 | 100 | 86% |
| PDH100-24S05 | 24 | 18-36 | 5 | 20 | 100 | 87% | |
| PDH100-24S12 | 24 | 18-36 | 12 | 8.3 | 100 | 87% | |
| PDH100-24S24 | 24 | 18-36 | 24 | 4.16 | 100 | 88% | |
| PDH100-48S3.3 | 48 | 36-75 | 3.3 | 30 | 150 | 82% | |
| PDH100-48S05 | 48 | 36-75 | 5 | 20 | 150 | 87% | |
| PDH150-48S12 | 48 | 36-75 | 12 | 12.5 | 150 | 87% | |
| PDH150-48S24 | 48 | 36-75 | 24 | 6.2 | 150 | 87% | |
| PDH200-110S05 | 110 | 66-160 | 5 | 40 | 150 | 87% | |
| PDH150-110S12 | 110 | 66-160 | 12 | 12.5 | 150 | 87% | |
| PDH150-110S24 | 110 | 66-160 | 24 | 6.2 | 150 | 87% | |
| PDH200-110S48 | 110 | 66-160 | 48 | 4.2 | 150 | 88% | |
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Remark: Custom-made specifications are acceptable.

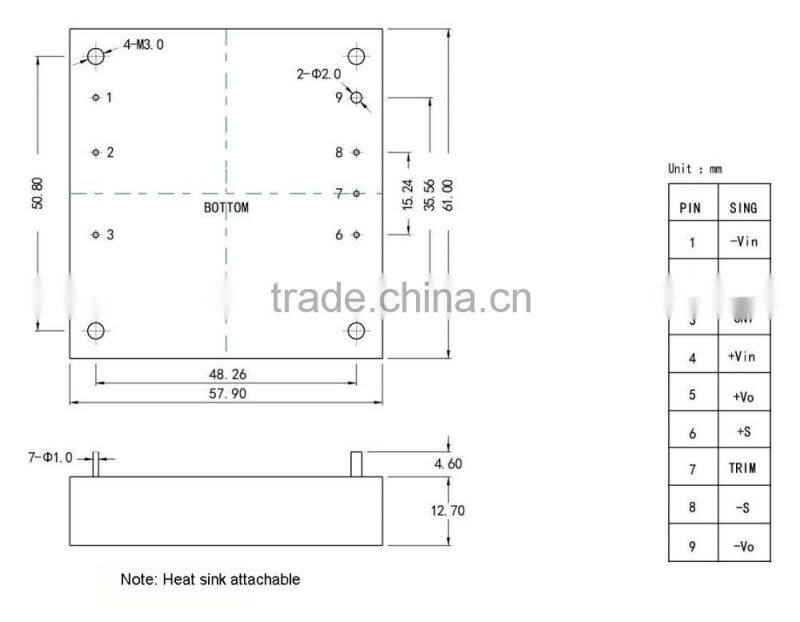

Mechanical Drawing & Pin definition
