ac dc 220v to 5v Power Supply for Pcb Mount PA-D Series

ac dc 220v to 5v Power Supply for Pcb Mount PA-D Series thumbnail-1
ac dc 220v to 5v Power Supply for Pcb Mount PA-D Series thumbnail-2
ac dc 220v to 5v Power Supply for Pcb Mount PA-D Series photo-1
ac dc 220v to 5v Power Supply for Pcb Mount PA-D Series photo-2
US$ 1 - 9.2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
PengTu
Model Number:
PA5-220S24-D
Contact Supplier Request Quote Chat Now
Nanjing Pengtu Power Supply Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name PengTu
Model Number PA5-220S24-D
Output Power Other, 5W
Output Type Single
Input Voltage Other, 220VAC
Output Voltage 24VDC
Output Frequency 40-60KHz
Output Current 0.208A

ac dc 220v to 5v power supply for pcb mount   PA-D series




                  ac dc 220v to 5v power supply for pcb mount PA-D series















Product Description



Features



l       Wide input voltage

l       Broadband noise filter of input

l       Comply with UL1950, IEC950 safety regulation

l       Nice shape design

l       Pin function compatible

l       Fast dynamic response



Input Characteristic



l       Inputvoltage range……………………85 ~ 264 VAC Rated value: 220VAC





         Reverse Protection

         Fuse Outside



Output Characteristic



l       Voltage accuracy …….................…………±2%

l       Line regulation(main) ………………........±0.2%

l       Load regulation(main) …………….......…±0.4%

l       Temperature coefficient …………........…±0.01%/℃

l       Output current limiting ………….........… 120%(Typ)

l       Dynamic response ……………………… 400μs

l       Output current …………………………… 0.2-2A

l       Output voltage …………………………… 3.3-48V

l       Power  …………………………………… 5-10W





General Characteristic



l       Switching frequency …………………… 40-60 KHz

l       Isolation resistance ……………………  200 MΩ

l       MTBF …………………………………  >500000H

l       Isolation voltage

        Input-output:>2000 VAC/Min (Leakage current<5mA)

        Input-case: >2000 VAC /Min (Leakage current<5mA)

        Output-case: >500 VAC/Min

l       Environmental Characteristic

       Case temperature …………………… Industry: -25-+85℃

       Storage temperature ……………….. Industry: -45~ +105℃

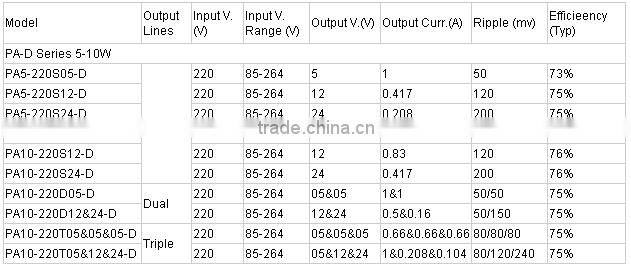

Models









If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.





 Remark: Custom-made specifications are acceptable.











Mechanical drawing and pin definition

 ac dc 220v to 5v power supply for pcb mount PA-D series
