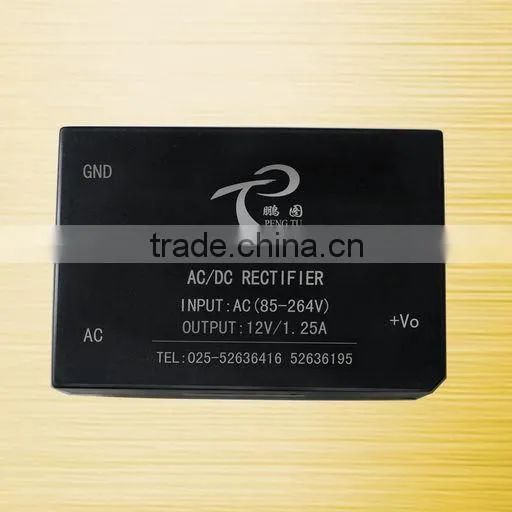

PA-B Series 3-6W ac-dc rectifier
Notice:
We do have enough ability to produce custom-made order.
Samples are available
High quality and low price .
If need samples, Kindly contact us
2 years warranty
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Features
l Wide input voltage
l Broadband noise filter of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Pin function compatible
l Fast dynamic response
Input Characteristic
l Inputvoltage range……………………85 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy …….................…………±2%
l Line regulation(main) ………………........±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………........…±0.01%/℃
l Output current limiting ………….........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 0-2A
l Output voltage …………………………… 3.3-48V
l Power …………………………………… 3-6W
General Characteristic
l Switching frequency …………………… 40-60 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>2000 VAC/Min (Leakage current<5mA)
Input-case: >2000 VAC /Min (Leakage current<5mA)
Output-case: >500 VAC/Min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃
Storage temperature ……………….. Industry: -45~ +105℃
Models
Model |
Output Lines |
Input Voltage (V) |
Input Voltage Range (V) |
Output Voltage (V) |
Output Current (A) |
Ripple pk-pk (mv) |
Efficieency (Typ) |
PA6-220S3.3-B |
Single |
220 |
85-264 |
3.3 |
1.8 |
50 |
77% |
PA6-220S05-B |
Single |
220 |
85-264 |
5 |
1.2 |
120 |
77% |
PA6-220S09-B |
Single |
220 |
85-264 |
9 |
0.66 |
200 |
78% |
PA6-220S12-B |
Single |
220 |
85-264 |
12 |
0.5 |
50 |
79% |
PA6-220S15-B |
Single |
220 |
85-264 |
15 |
0.4 |
120 |
81% |
PA6-220S24-B |
Single |
220 |
85-264 |
24 |
0.24 |
200 |
80% |
PA6-220D3.3-B |
Dual |
220 |
85-264 |
±3.3 |
±0.9 |
50 |
77% |
PA6-220D05-B |
Dual |
220 |
85-264 |
±05 |
±0.6 |
120 |
77% |
PA6-220D09-B |
Dual |
220 |
85-264 |
±09 |
±0.33 |
200 |
78% |
PA6-220D12-B |
Dual |
220 |
85-264 |
±12 |
±0.25 |
50 |
79% |
PA6-220D15-B |
Dual |
220 |
85-264 |
±15 |
±0.2 |
120 |
81% |
PA6-220D24-B |
Dual |
220 |
85-264 |
±24 |
±0.12 |
200 |
80% |
Remarks: Custom-made specifications are acceptable.
Mechanical drawing and pin definition
230v ac input 12v dc output
