Cable trunking metal Waterproof wiring trunking

Specifications

1 fast heat dispersion
2 flexible , easy and fast installation
3 nice appearance

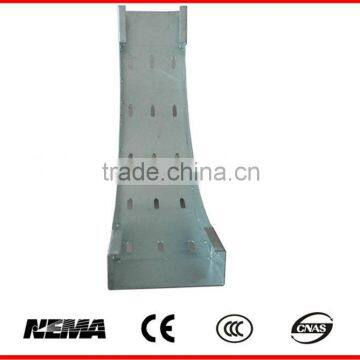

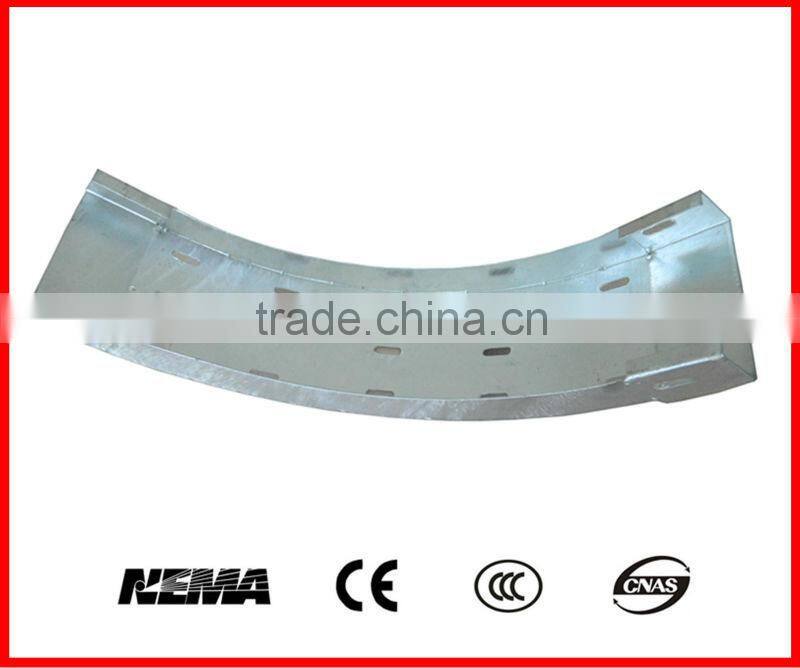

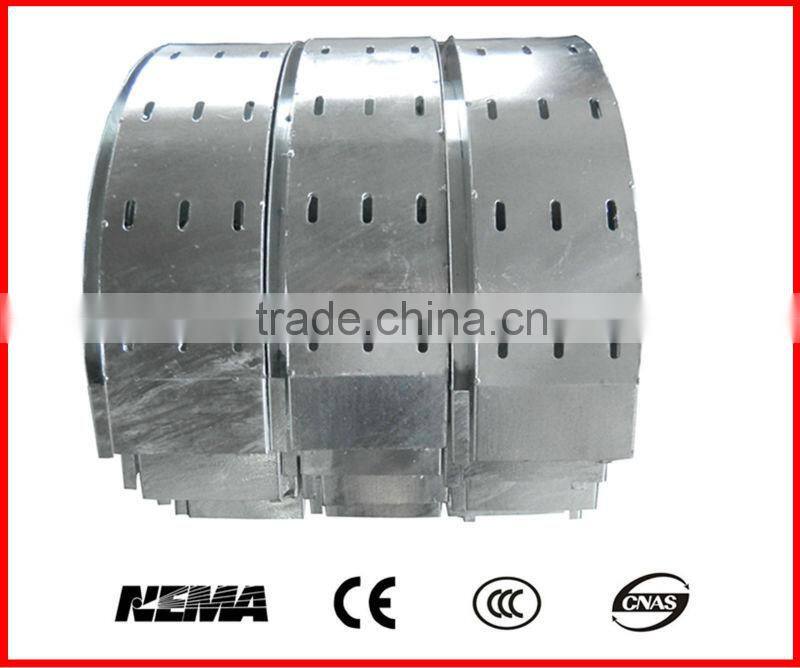

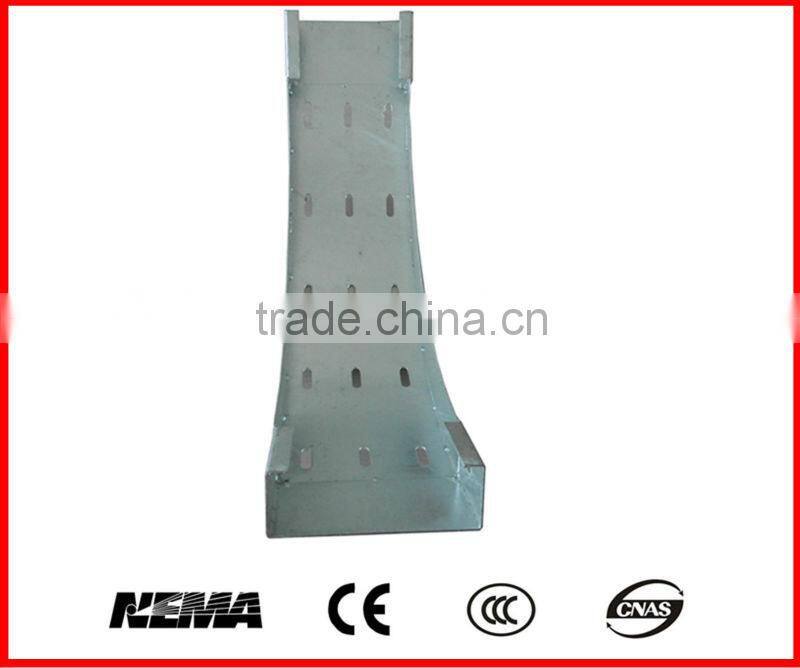

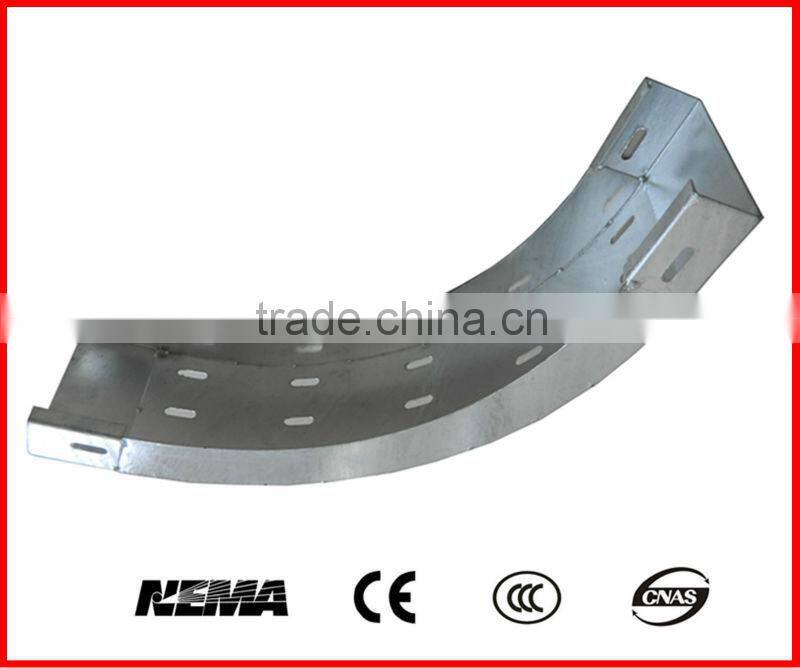

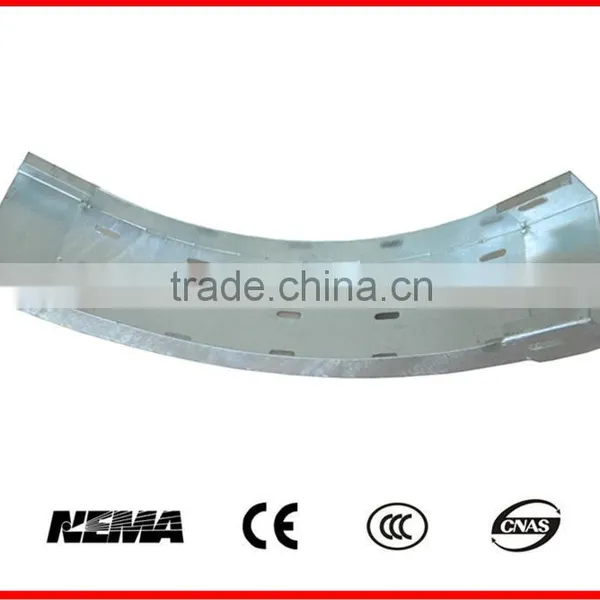

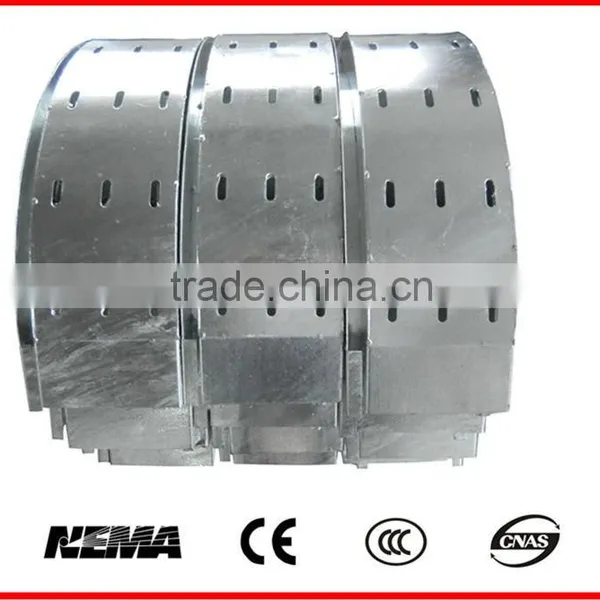

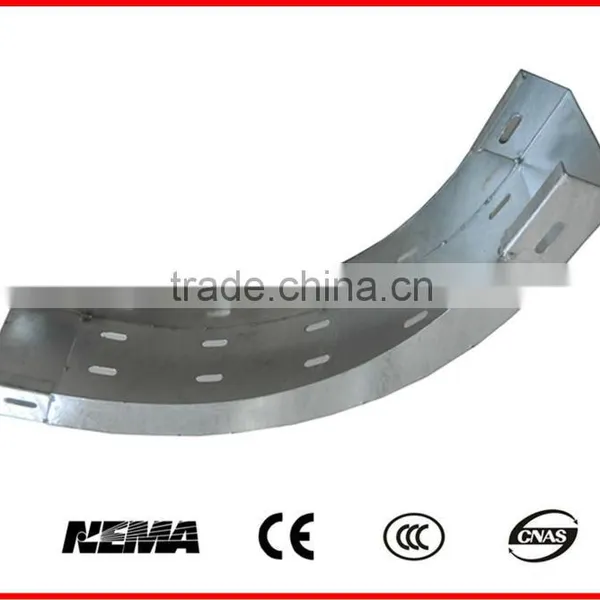

HDG perforated cable tray



Use steel plate stamping & bending molding, and surface treatment is hot dipped galvanization .Vent holes are distributed on the bottom and side rail of cable tray. Cable tray is with good heat dissipating capacity and for the convenience of installation on site.



Material

Q235B



Width

600mm - 50mm



Height

25mm/ 50mm/ 75mm/ 100mm



Length

2000mm-3000mm



Thickness

1.0mm/ 1.2mm/ 1.5mm/ 2.0mm/ 2.5mm



Surface treatment and related exective standard

Hot dipped galvanised and EN ISO1461/ ASTM A123



Loading capacity

H 100mm, L 3000mm, loading capacity 60kg/m

H 50mm, L 3000mm, loading capacity 29kg/m



Deflection

H 100mm, L 3000mm , deflection 15mm

H 50mm, L 3000mm , deflection 23mm



Applicable site

Heavey corresive environment and outdoor instrument cable



























Factory









Warehouse
