New SUPER MINI ELM327 Bluetooth OBD2 V1.5 White Smart Car Diagnostic Interface ELM 327 Wireless Scan Tool

The White & Black version of the Hottest Blue ELM327

Support OEM & ODM

• If your car's  Check  Engine Light is on, you need this device. This interface is a pc device  for reading and erasing trouble code in your vehicles. It can also  display live data for your vehicle. Competitive in price and easy to  use.

• Even if you don't repair the vehicle yourself, knowing the Diagnostic  Trouble Code number before taking the vehicle in for repair the less  likely you will be ripped off. Once the vehicle is repaired, the  Diagnostic Trouble Code (s) can be erased and the Check Engine light  extinguished using this scan tool.

• In area that requires a smog test, an illuminated Check Engine light  fails the emission test, even if the repaired vehicle might otherwise  pass inspection. This OBD II Scan Tool extinguishes the Check Engine  light.

Product Specifications:

Color: White & Black

Voltage: 9~16V

Dimensions:30mmx45mmx22mm

Weight:0.05kg

Working Current:25mA

Packing: Anti Plastic Bag

Compatible OS and Apps:

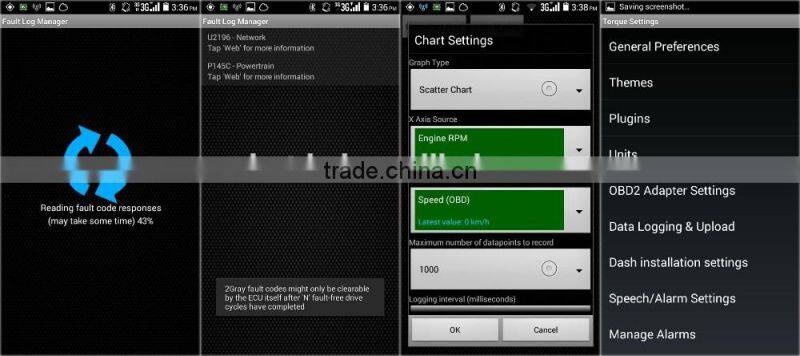

For Android Device: Torque Pro, DashCommand, OBD Car Doctor;

For Windows Device: ScanMaster, Scantool, PCMSCAN.


Support OBD2 Protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)



Item Description
100% Brand new and high quality
The newly developed wireless scan tool.
It supports multi OBD-II protocols.
It is the version 1.5
Bluetooth connection, no Batteries, Cables, or Switches.
Wireless (Bluetooth) 5~10 meter
Retrieve Fault Codes (DTCs) and clear Check Engine lights.
Can also be used with a PC with a Bluetooth Card.

Features:

100% Brand New.
Function: Pocket-sized Super Mini ELM327 V1.5 Bluetooth OBD2 Car  Diagnostic Tool
Bluetooth Paircode: 1234
Main Control Chip:PIC18F2480
Vehicle Interface:16pin (2 x 8)

Read diagnostic trouble codes, both generic and manufacturer-specific , and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Set the maximum number of responses to obtain
Remove spaces from ECU responses (to speed data transmission)
Store a unique identifier in EEPROM
Set the CAN mask and filter with one command
Easily switch between variable and fixed CAN message lengths
Send CAN remote frames (RTRs) r
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others...

Package contents:
1 x ELM327 OBD-II Bluetooth Scanner
1 x CD-ROM
