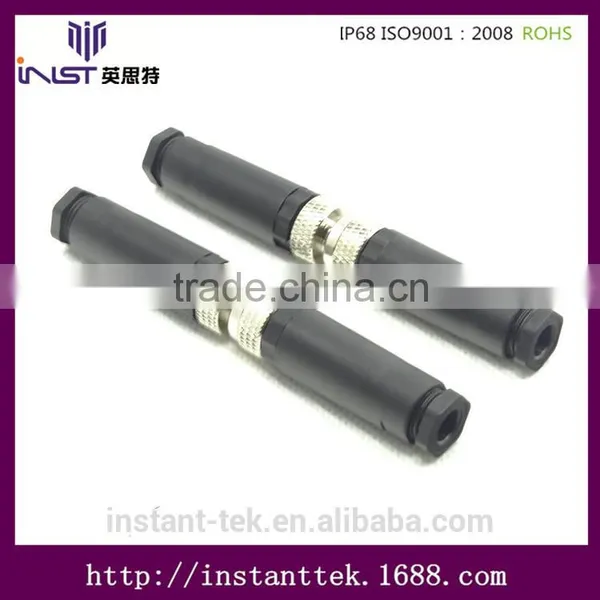

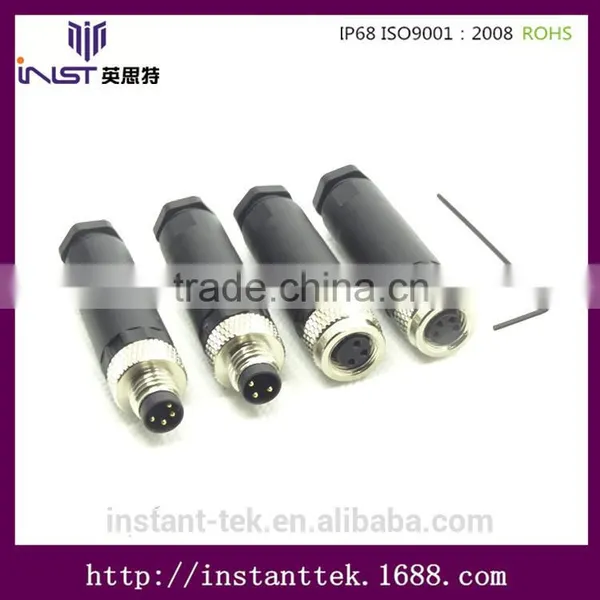

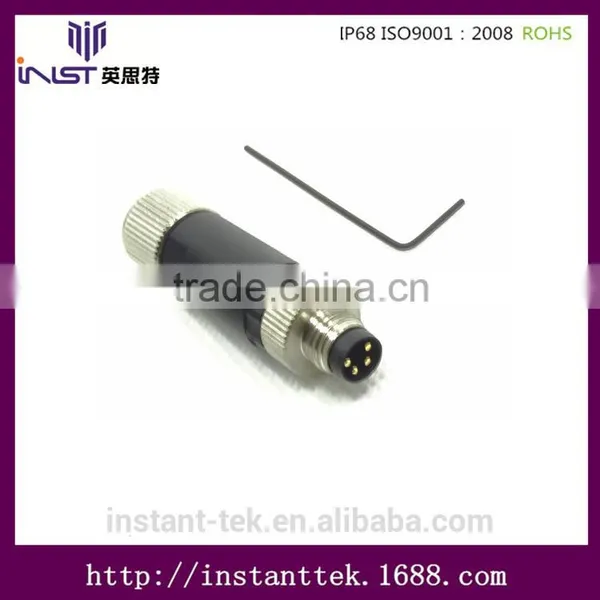

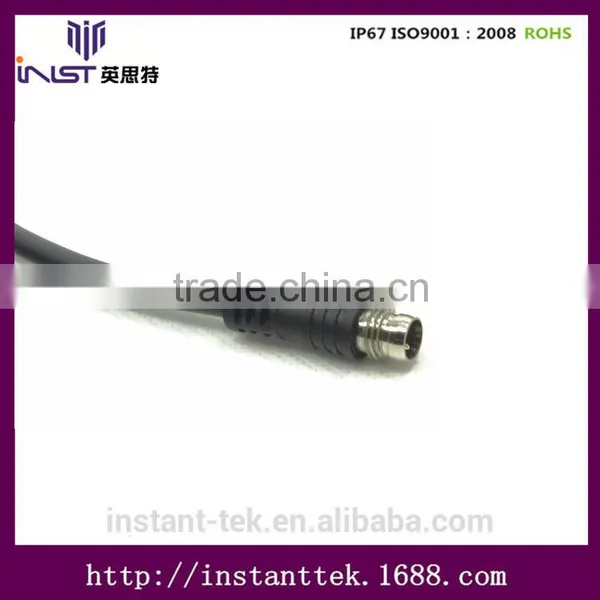

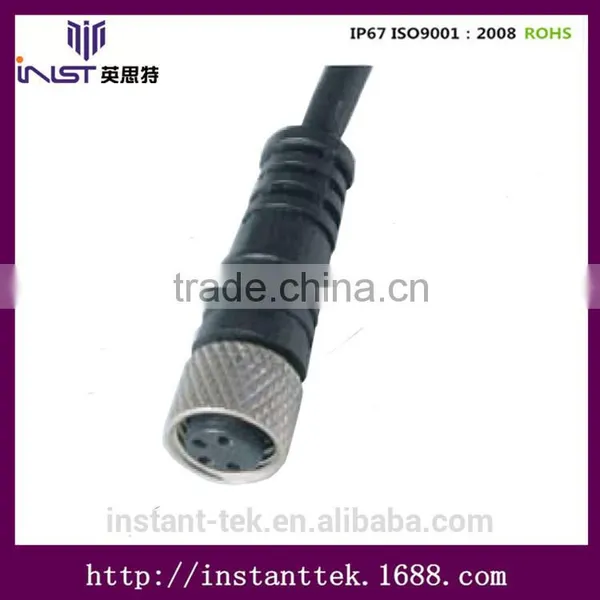

INST M8 Sensor 180degree Screw Mating (Molded with Cable) Connector

Name: INST M8 Sensor 180degree Screw Mating (Molded with Cable) Connector
Brand: INST
Price: USD $1 - 3 / Piece

FOB Price

USD $1 - $3 / Piece

50 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	INST	Model Number:	M8
Type:	RCA	Application:	Power	Gender:	Male

Product Description

INST M8 Sensor 180degree Screw Mating (Molded with Cable) Connector

Description	Details	Code
1. Connector Size	INST-M8	M8
2. Current Rating	7A	7
3. Number of Contacts	3,4	3,4
4. Connector Type	Without SR	B
5. Connector Gender	Male,Female	M,F
6. Contact Gender	Male,Female	M,F
7. Assembly Style	Field Installation	M
8. Mating Style	Screw	S
9. Backs hell	Straight	L
10. Waterproof Rating	IP68	8
Material: Core Material: PA6+30%GF UL94V0 Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45℃~+105℃ Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.

Company Profile:

Shenzhen Instantware Information Technology Co., Ltd. specializes in designing and manufacturing of waterproof connectors and plastic mold(including connector precision mold ) with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in aerospace, automotive, industry and research, medical, railway, energy, military and other industries. Since 2009, the company has passed ISO9001:2008 international quality system certification, some of which successfully passed the TUV, CE and IP68 certification. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. Our vision is to be the most respected manufacturer. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

Related Certificates:

INST M8 Sensor 180degree Screw Mating (Molded with Cable) Connector

Contact Us

Shenzhen Instantware Information Technology Co., Ltd.: Contact nameAndy Chao; Phone0086-755-82968170; AddressB5F3, Shenzhen City Xili Tongfuyu Industrial Town, China Shenzhen,Guangdong
