INST 8, 16 ports wdm edfa, catv channel combiner, couple catv EDFA

Name: INST 8, 16 ports wdm edfa, catv channel combiner, couple catv EDFA
Brand: INST
Availability: InStock

FOB Price

USD $1 - $1,500 / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	INST
Model Number	EDFA

Product Description

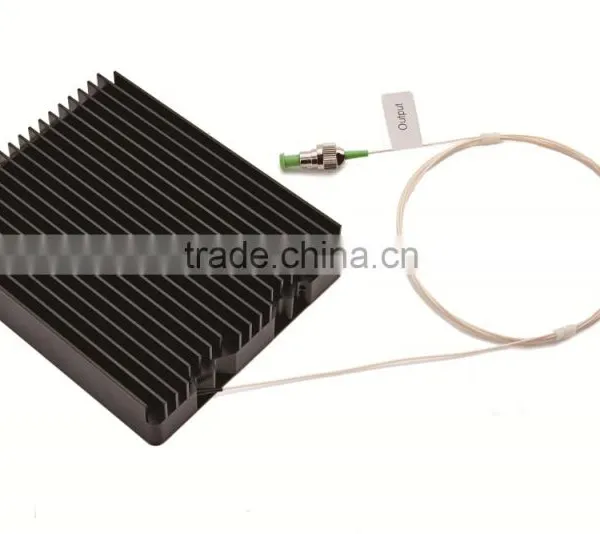

INST 8, 16 ports wdm edfa, catv channel combiner, couple catv EDFA

Product Description

parameters	unit	Min.	typical	Max.
Wave length range	nm	1528		1560
Input peak power	dBm	-	0	0
Output peak power*	dBm	-		27
input/output light isolation	dB	45	-	-

Input isolation	dB	45.0
Output isolation	dB	45.0
Operating temperature	℃	-20		+65
Operating humidity	%			90
Noise figure	dB	<5.0
Storage temperature	℃	-40		+85
Power supply		DC+5V GND(Module)
Optical connector		FC/APC or customization
In&out pigtail fiber		SMF28

Packaging & Shipping

Company Information

Shenzhen instantware company is a professional research and development, production and sales of optical passive devices, optical fiber amplifier EDFA, high stability light source and ASE broadband light source and other optical communications test equipment and other products joint venture high-tech enterprises. Since its set up in 2009, INST always adhere to the leading business philosophy, in the optical, mechanical, electronic and computer software, and other fields with rich experience in the professional development of personnel composition, the company has a very good competition force.

Main products: light stability, coarse wavelength division multiplexer, optical amplifiers, single-mode fiber coupler

FAQ

Q1: What kind of guarantee do you provide ?
A1:   1.100% high quality, all failed parts get free warranty within 30 days after received.
        2.Accept 10 years warranty upon customer requirement.
        3.Repairs parts are available within 10years; We will inform the EOL products to you from time to time.

Q2:  What if the amplifier which we need have some differences on specifications from yours?
A2:  Any difference, we can design and produce according to your requests, which includecolor, material, processing requirement etc.

Q3: How can I get a sample to check your quality?
A3: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
