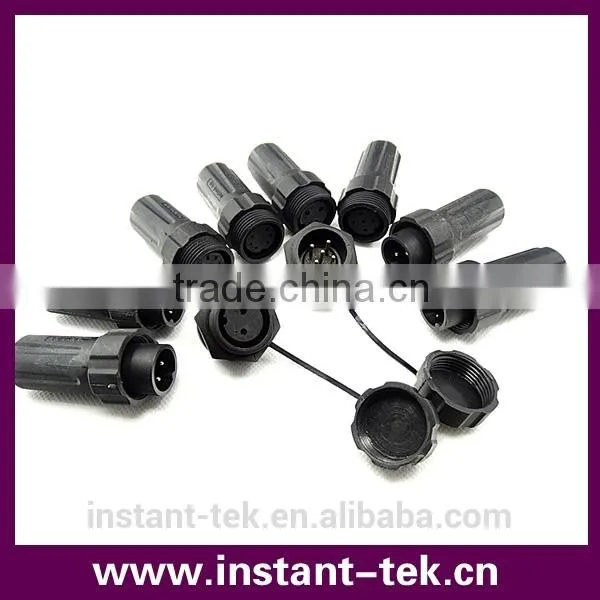

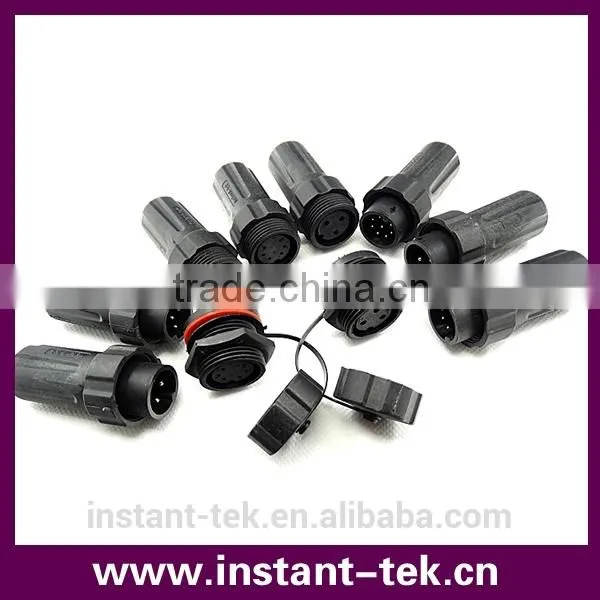

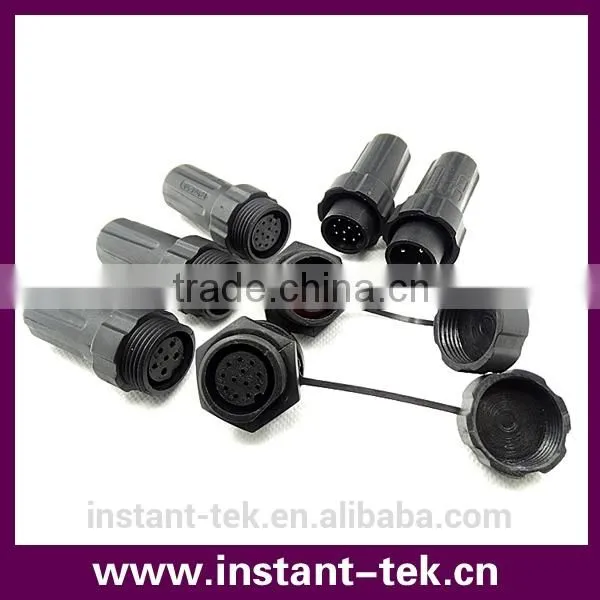

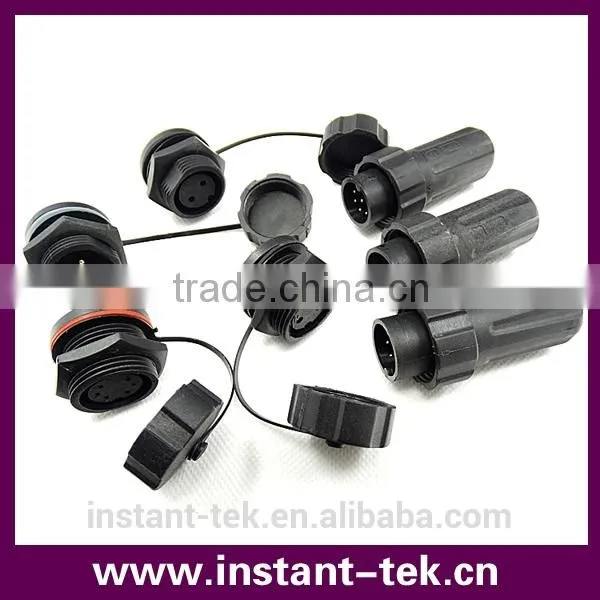

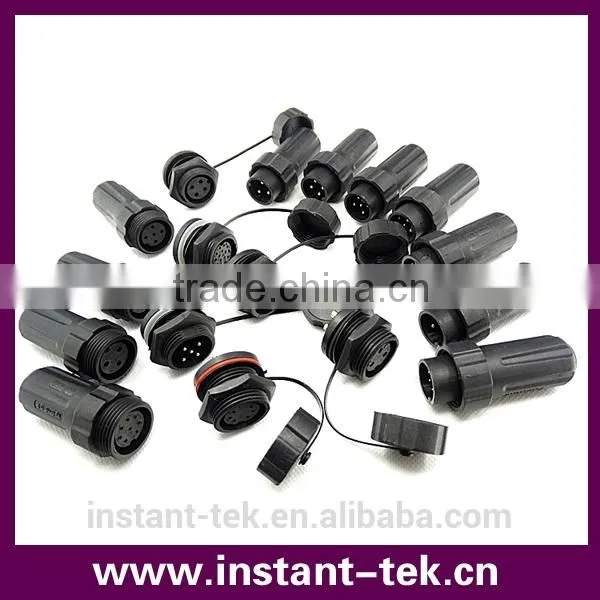

INST M22 IP68 6pin waterproof electronical connector
- 50000 Piece / Pieces per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | INST | Model Number: | M8 |
Type: | RCA | Application: | Power | Gender: | Male |
Product Description
INST M22 IP68 6pin waterproof electronical connector
Description | Details | Code |
1. Connector Size | INST-M8 | M8 |
2. Current Rating | 7A | 7 |
3. Number of Contacts | 3,4 | 3,4 |
4. Connector Type | Without SR | B |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation | M |
8. Mating Style | Screw | S |
9. Backs hell | Straight | L |
10. Waterproof Rating | IP68 | 8 |
Material: Core Material: PA6+30%GF UL94V0 Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45℃~+105℃ Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
|
Company Profile:
Shenzhen Instantware Information Technology Co., Ltd. specializes in designing and manufacturing of waterproof connectors and plastic mold(including connector precision mold ) with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in aerospace, automotive, industry and research, medical, railway, energy, military and other industries. Since 2009, the company has passed ISO9001:2008 international quality system certification, some of which successfully passed the TUV, CE and IP68 certification. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. Our vision is to be the most respected manufacturer. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Related Certificates:
INST M22 IP68 6pin waterproof electronical connector
INST M22 IP68 6pin waterproof electronical connector
INST M22 IP68 6pin waterproof electronical connector
