20x4 Character Blue LCD Module Monochrome Lcd SPLC780D
- SZ/HK
- T/T
You May Like
-
LCD Module Monochrome Lcd 16x2 Character Lcd Display
-
Monochrome Blue Type Character Type 16x2 Alphanumeric Lcd Display Module
-
Character LCD Display LCM 1602C 16X2 LCD Module Blue Monochrome
-
3.3v Lcd 16 x 2 Character Screen LCD Display Module With Blue Display
-
Character Type Monochrome 2004 LCD 20x4 Display LCD Module Character Screen Blue Backlight
-
STN Lcd Display Module Blue Screen 1602
Product Details
| Place of Origin | Guangdong, China | Brand Name | SAEF | |
| Model Number | SF2004A-B | Type | Character |
Product Description

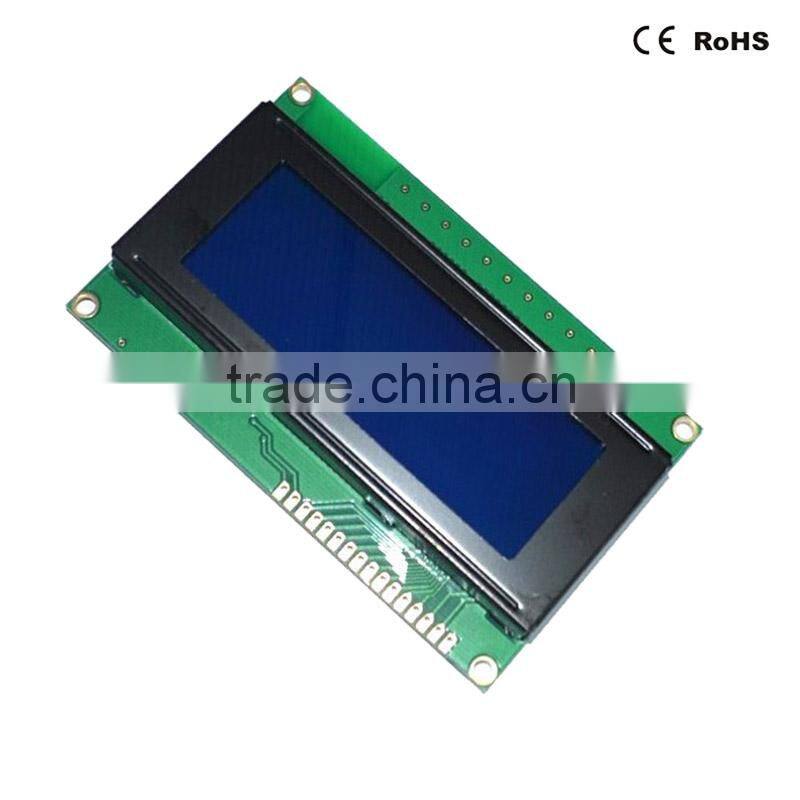

20x4 Character Blue LCD Module Monochrome Lcd SPLC780D
1. Display Type: | 20x4 LCD |
2. LCD Type: | STN,NEGATIVE(BLUE),TRANSMISSIVE |
3. Outline Dimension : | 98(L) * 60(W) * Max 13.2(T) mm |
4. Driver IC: | SPLC780D |
5.Viewing Area : | 77(L) * 25.2( W) mm |
6.Dot size | 0.56(W) x 0.56(H) |
7. Interface Type: | 8-bit MPU interface |
8. Backlight Type : | SIDE WHIET |
9. Operating voltage: | +3.3V~5V |
10. Viewing Angle: | 6 O'clock |
11. Operating Temp: | -20°C~+70°C |
12. Storage Temp: | -30°C~+80°C |
1. ISO9001 certificated, Factory Direct Supplied
2.RoHS Compliant, Lead Free, Reach Compliant
3.Competitive Price and Short Lead-time

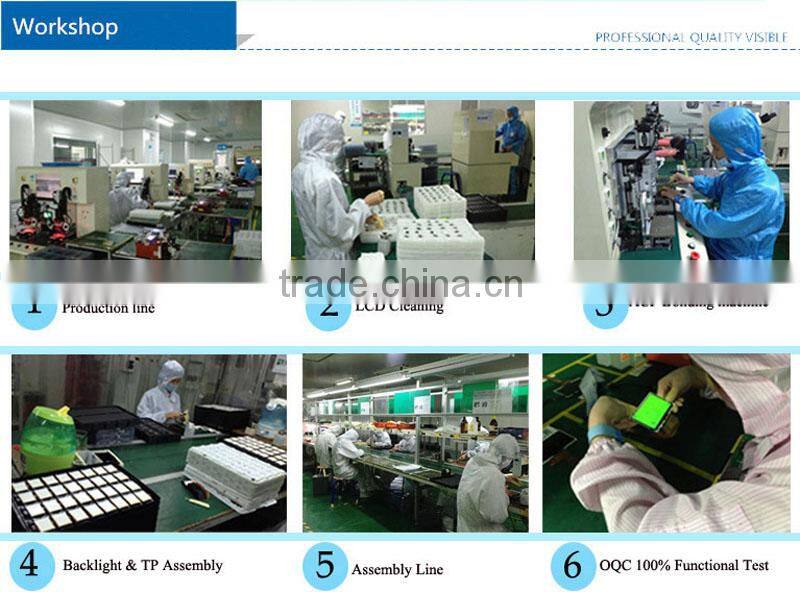

4.Professional Team with Rich Experiences in Design/Mfg/Quality Control
5.Small MOQ Support & Fast Response to Customers
6.Long Product Life Time
Shenzhen SAEF Technology Ltd. is a manufacturer of LCD display modules and touch panel devices with well-equipped testing facilities and strong technical force.
With an experienced and professional team, we have exported our products to many countries and regions all over the world. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
