Compatible Symbol Barcode Reader

Name: Compatible Symbol Barcode Reader
Brand: Aibao/BIASH
SKU: 115454341
Availability: InStock

Negotiable MOQ: 200 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Aibao/BIASH

Model Number:

1606T

Guangzhou Heshi Office Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Aibao/BIASH

Model Number 1606T

Specifications

Set from your PC keyboard or scanning barcode
Over 180 parameter option
Over 20 different Countries' keyboard

Feature:

Basic key setting/ serial port/simulation port

Advance keyboard port/ compatible NOVELL

Set from your PC keyboard or scanning barcode

Over 180 parameter option

Choose output Computer automatically

Over 20 different Countries' keyboard

Set barcode date to any key by keyboard

Support editing(edit including string, filter, changing form )

Set prefix, suffix and field terminator

Read/ not read indicator(buzzer and LED)

Use advance decode algorithm

Oversized ASCII Code support Code 128

Low power consumption

Technical paremeters

Input voltage	DC 5V ±5%
Power	258mw(work); 100mw(task state); 380mw(MAX. Peak)
Source	host machine supply keyboard interface; RS-232 external or host machine supply
Current	50ma(work);30mw(task state); 100mw(MAX. Peak)
Light source	Visible laser 650nm
Static electricity	15kv
Laser grade	State secondary laser safety standard
Depth of Field	2-9cm(0.1mm bar width); 3-40cm(0.3mm bar width)
Scan width	5cm~30cm
Decode speed	120 times/S
Readable bar width	Min. 0.1mm(4miles)
Decode Capacity	UPC-A, UPC-E, EAN-13, ISBN/ISSN, Code 39, Codabar, interleaved 25 Code, Matrix 25 Code, Code 128, Code11, MSI/PIESSEY, UK/PLES SEY, UCC/EAN128 Code, China post Code Etc.
Notice method	Indicator LED, buzzer
System interface	IBM PS/2 keyboard, IBM PC/XT/AT, RS-232 serial interface; Standard 2.0USB port
Trigger method	Manual operation; Continuous scan automatically; infrared scanning automatiCally, holder scanning automatically(selectable)
Dimension	9.80cm×6.80cm×15.80cm (LWH)
Weight	135G

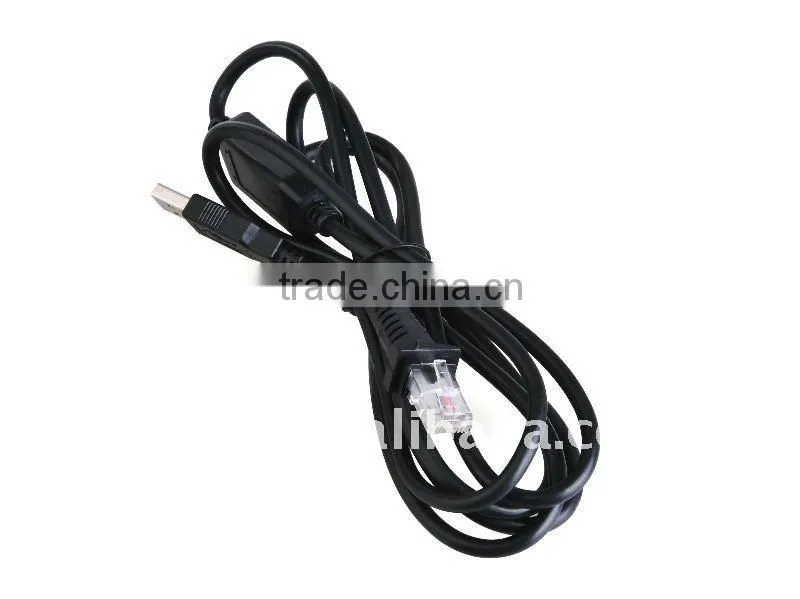

Electric cable standard	Straight line 2m
Interface type	RJ-45
Jacket material	ABS+PC+PVC
Working temperature	-10°C~60°C
Storage temperature	-20°C~60°C
Operation humidity	0~95%
Shock resistance	1.5m free falling body test
Language	Multi-language
