Specifications
high quality U clevis/forged clevisprofessional manufacturer
high strength and well durable
99%exportation
Thank you for you to pay attention to my product ,If you want to now more about ,pls see under;If you have any reuqires,pls without hesitate contact me

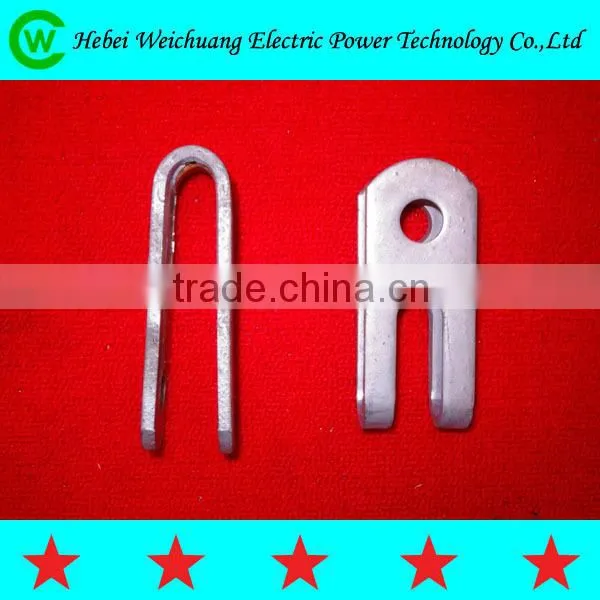

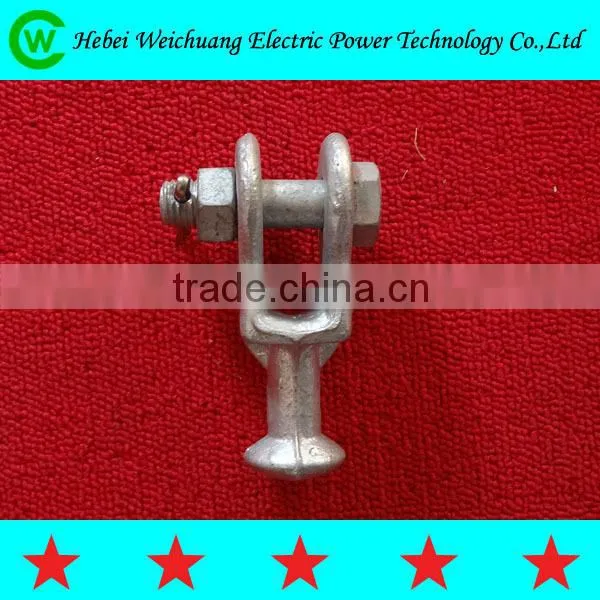

manufacturer high quality U clevis/forged clevis
1.The body is made of High-strength forged
2.Smooth surface long servile life
3.Easy installation
4.No waste electric energy

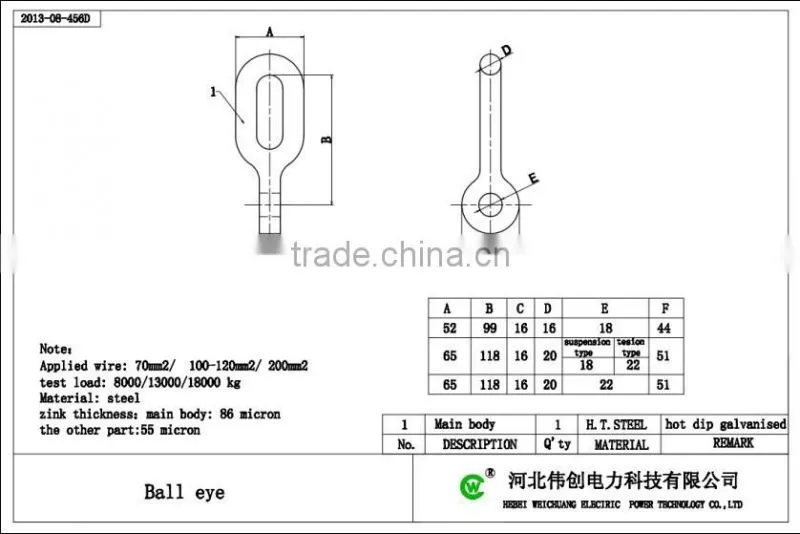

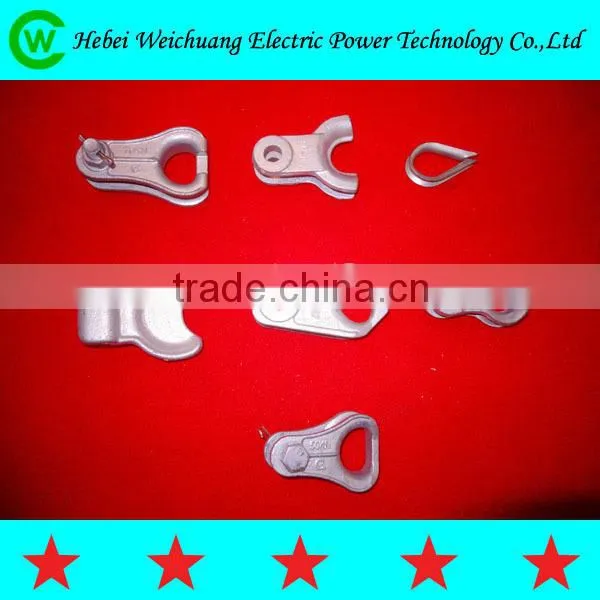

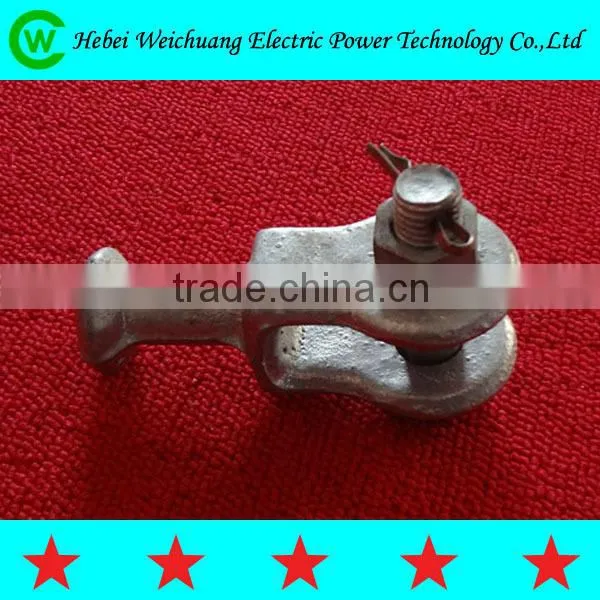

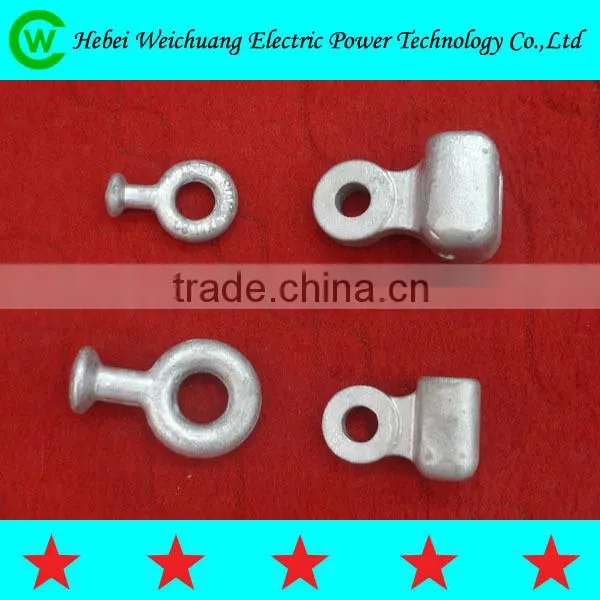

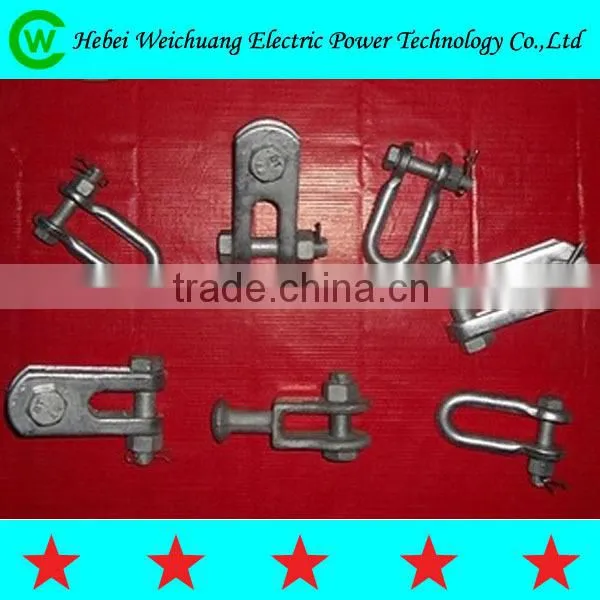

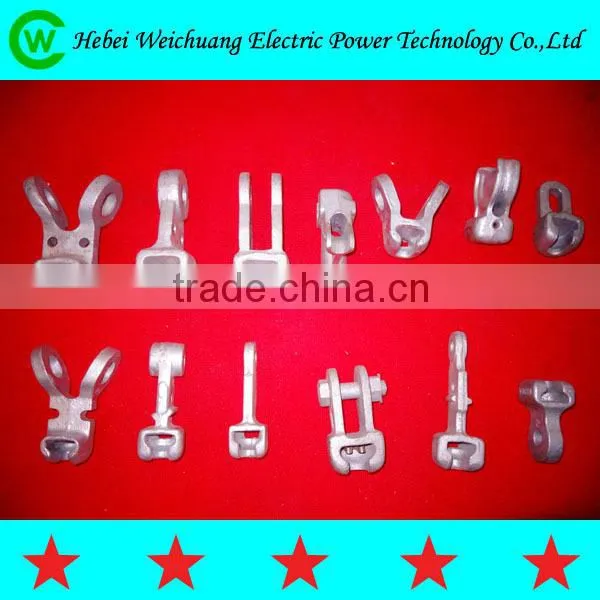

Link fitting are used to link clamps to insulator,or to link insulator and ground wire clamp to tower arms or subjection structures.Link fitting have special type and common type in accordance with mounting condition.The special type includes the ball-eye and socket-clevis linking with insulator.
The fittings shall be delivered hot dip galvanized according to the following specifications:
- The Zinc that shall be used shall have the quality of minimum category prime western according to the category Zn 98.5 according to ISO-1461.
- Then washed out with water and then flux treated and dried out.
- The hot dip galvanization shall be made in a Zinc bath of temperature 450°C and of Zn-composition min. 98,5%.
- The galvanization thickness shall be in average 86μm thick! On an isolated piece or on a small part of the surface the thickness can be a little lower, however on all pieces and on all surfaces the minimum thickness shall be 78μm and the average weight in relation to the galvanized area shall be 610 gr/m2.
- The pieces shall be after HDG free from black stains, enclosures of dirt, knobs, bubbles or any other surface defects. The HDG shall be smooth and uniform in the entire piece without any spots with too small or too big galvanization thickness otherwise the pieces will be rejected.
The galvanization shall stick very well on the steel structure; it shall not be removed as a film but shall be as one with the steel bod
