Help CenterHDPE Geonet
US$ 0.9 - 1.2
MOQ: 5000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
OEM or ROAD
Model Number:
CE131, CE151,CE121,CE181
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Geonet for Slope ProtectionUS$ 0.5 - 6.58MOQ: 5000 Square Meters -
High-strength Geonet(CE181)NegotiableMOQ: 5000 Square Meters
-
GeonetUS$ 0.5 - 3.5MOQ: 5000 Square Meters
-
High-strength Geonet(CE131)NegotiableMOQ: 5000 Square Meters
-
High-strength Geonet for Roadway and HighwayNegotiableMOQ: 5000 Square Meters
Place of Origin
Shandong, China
Brand Name
OEM or ROAD
Model Number
CE131, CE151,CE121,CE181

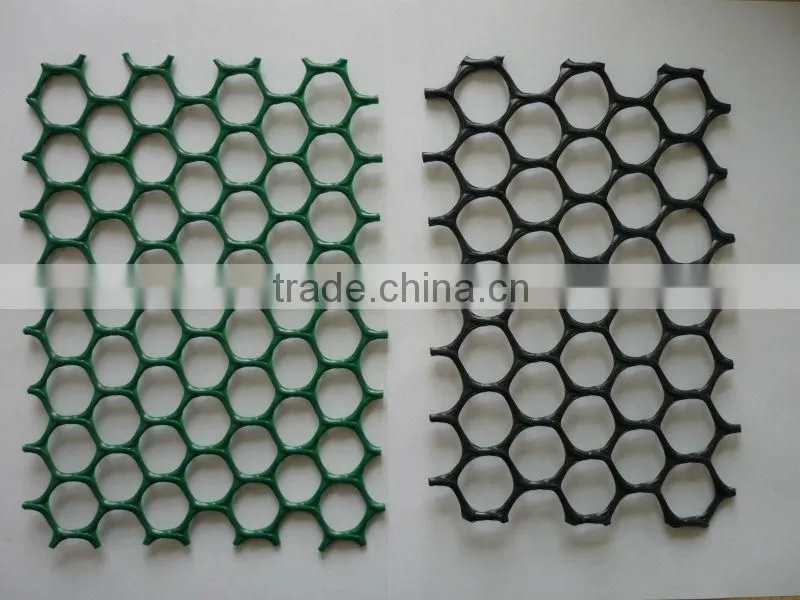

HDPE geonet
The introduction and application of the geonet:
- It is made of high-density polyethylene (HDPE) and the ultravioresistant agent with the property of aging resistance and erosion resistance.
- Using the geo-net on the roadbed of the roadway and railway can distribute the load effectively, improve the loading capacity and the stability of the roadway, and prolong its service life.
- Spreading the geo-net in the dyke protection in the reservoir and the river can protect it from the landslide.
- And with the features of good flexibility and strong erosion resistance, using it in the coast engineering can amortize the concussion and the erosion of the surf
Spec and property indexes
|
Spec Item |
CE121 |
CE131 |
CE151 |
DN1 |
HF10 |
Weight per sq.m.(g/m2) |
730±35 |
630±30 |
550±25 |
750±35 |
1240±60 |
Mseh size(mm) |
8±1X6±1 |
27±2X27±2 |
74±5X74±5 |
10±1×10±1 |
10±1×6±1 |
Net width(m) |
2.00+0.06or2.50+0.06 |
||||
Length of the reel(m) |
50.00+1or40.00+1 |
||||
Maximum drawing force≥(KN/m) |
6.2 |
5.8 |
5.0 |
6.0 |
18 |
Remark |
The special spec or size can be manufactured according to the demands of the contract or agreement |
||||
Geonet goods :

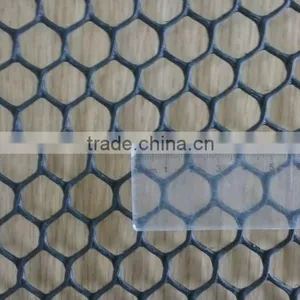

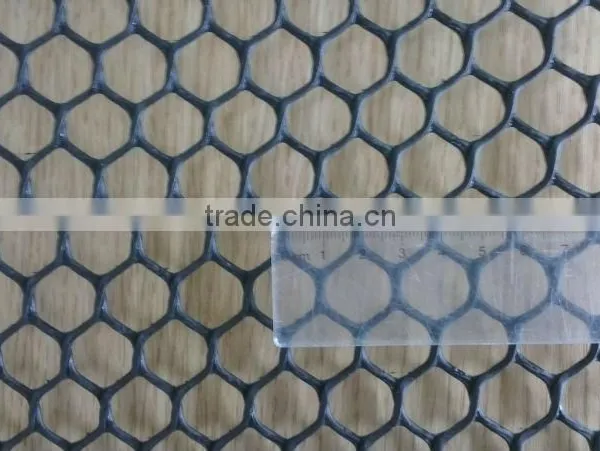

1.CE131

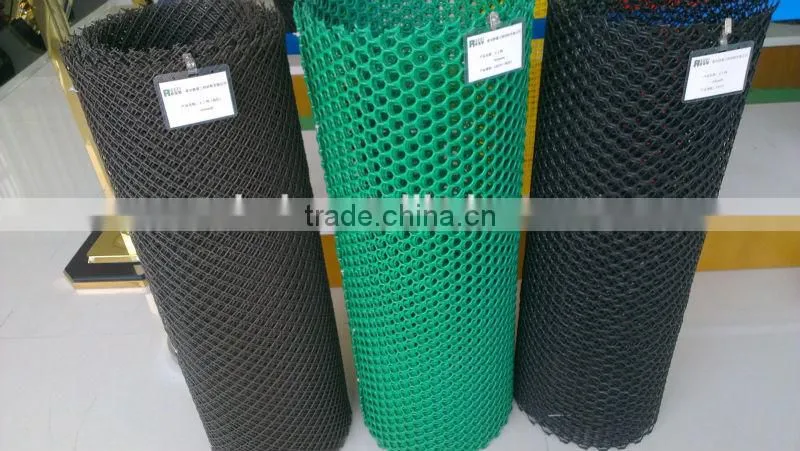

2. CE131 ROLLS
3. PACKED GOODS IN CONTAINER
