Help CenterHigh Quality Preformed Cable Suspension Clamp for Electrical Power Line Accessories
Related Products
-
Electric Power Accessories,suspension Clamps ClampUS$ 2.5 - 4.2MOQ: 500 Pieces -
Suspension Clamp for ADSS Cable ClampUS$ 2.5 - 5.5MOQ: 600 Sets
-
Hot-dip Galvanized Ball and SocketUS$ 0.65 - 1.63MOQ: 500 Sets
-
15mm-25mm Suspension Clamp,insulating MaterialUS$ 0.65 - 1.63MOQ: 500 Sets
-
Suspension Clamps 10.9-18.50 Made in Hebei WeichuangUS$ 0.65 - 1.66MOQ: 500 Sets
Specifications
preformed cable suspension clamphot-dip galvanized steel
ISO9001-2008
well insulated
Thank you for you to pay attention to my product ,If you want to know more about ,pls see under ;If you have any reuiqres ,pls without hesitate contact me

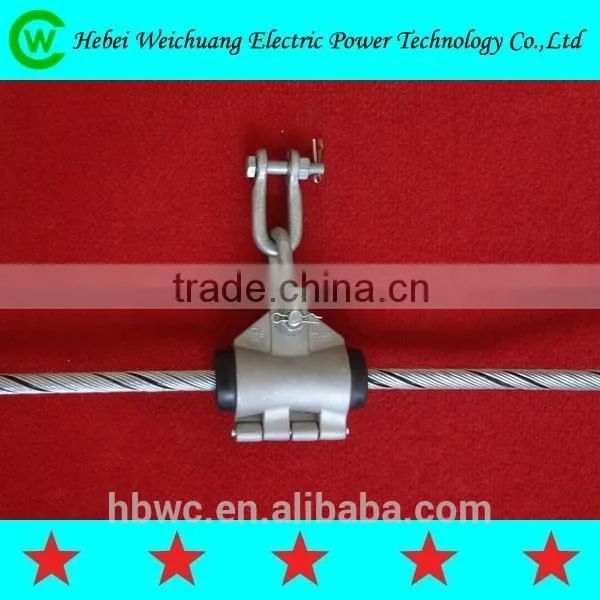

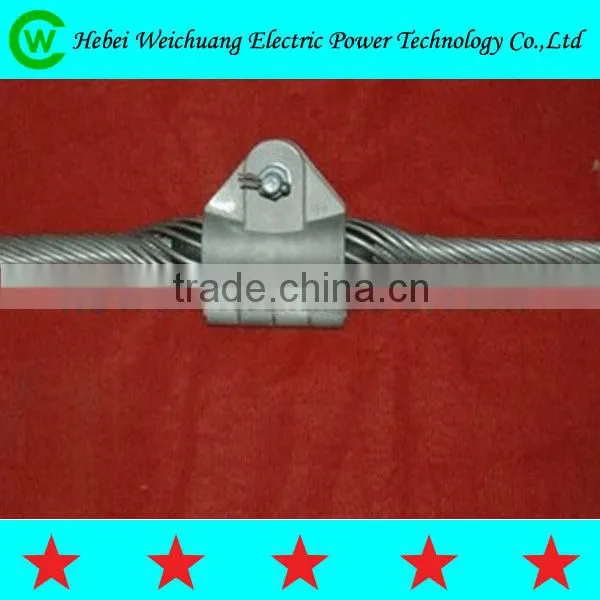

preformed cable suspension clamp for electrical power line accessories

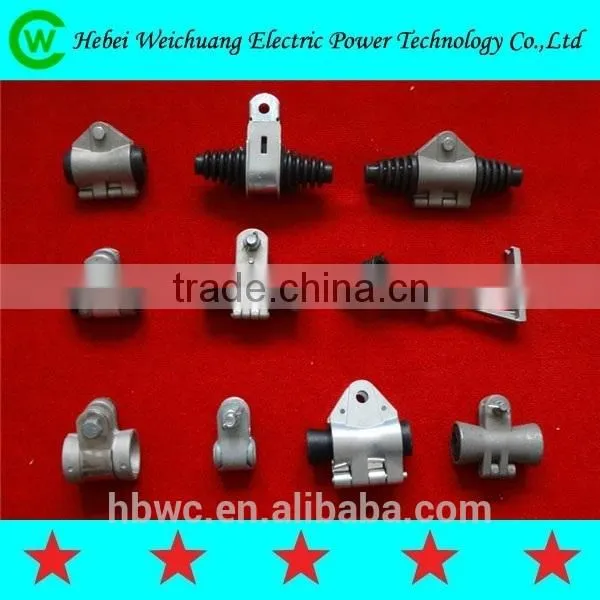

Suspension clamps are used to hang conductor or ground wire through insulators or link fitting to tower arms or substation structure. The clamps are made of malleable iron or aluminium alloy.
It has excellent fatigue resistence and auxiliary damping affect for power optical cabel.
and prolong the aervice life of optical cabel.
As the suspension clamps are used to AAC and ACSR, the conductor may be wound by aluminium tapes or preformed armour rods for protecting these taps or rods are included in the diameter of suitable conductor.The body and keeper are made of malleable iron. Cotter-pins are made of stainless steel. Other parts are made of steel. All ferrous parts are hot-dip galvanized

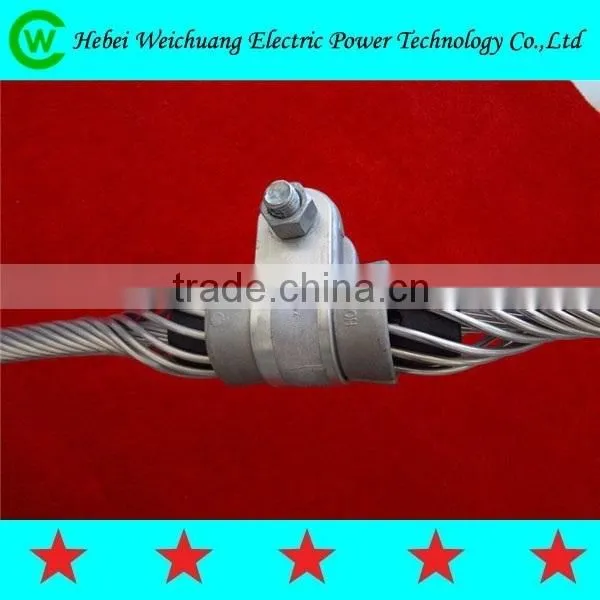

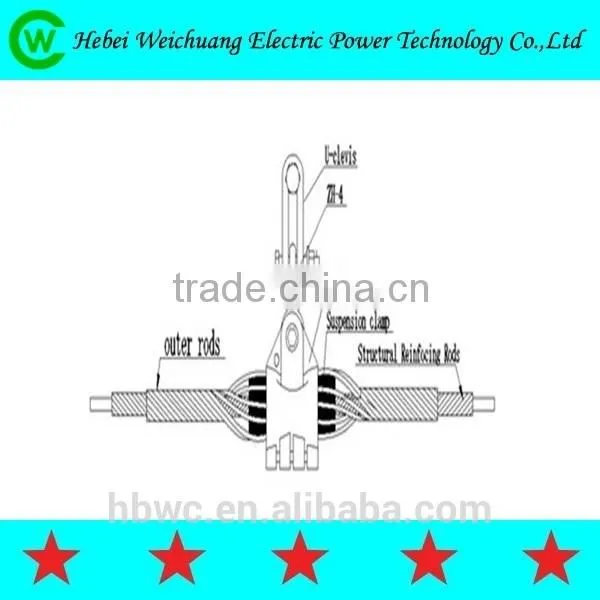

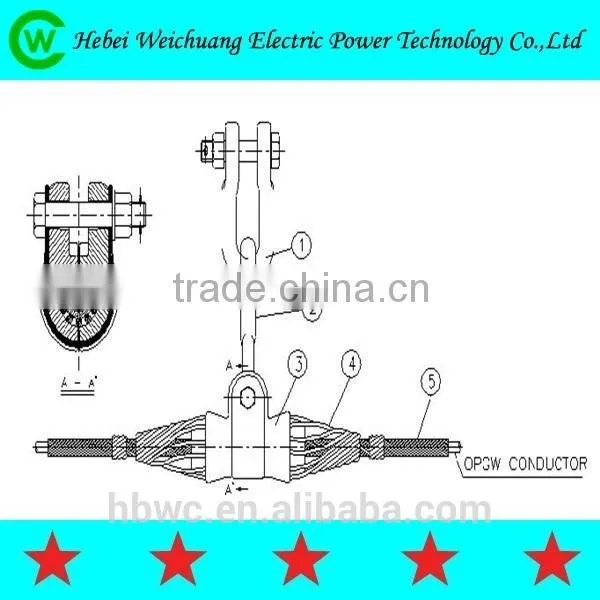

Composition: inner twisted wire,Outer twisted wire,Rubber block and cast aluminum shell.
Uses: To play a supportive role, the optical fiber composite overhead ground wire (OPGW) are hung on a straight line on the tower.
Features: a Suspension and OPGW cable has a larger contact area, stress distribution uniform, no stress concentration points, play better on cable protection, at the same time enhancing the stiffness of cables at hanging point location.
b. There is a good dynamic stress capacity, can provide sufficient grip strength (14 ~ 18% RTS) in order to maintain OPGW cables in the long run under the conditions of unbalanced load for safe operation.
c. Suspension of overhanging angle to meet the 15 ° ~ 18 °

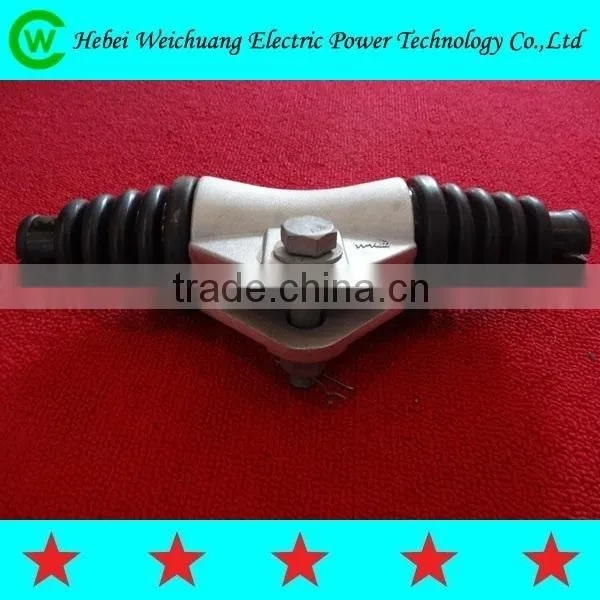

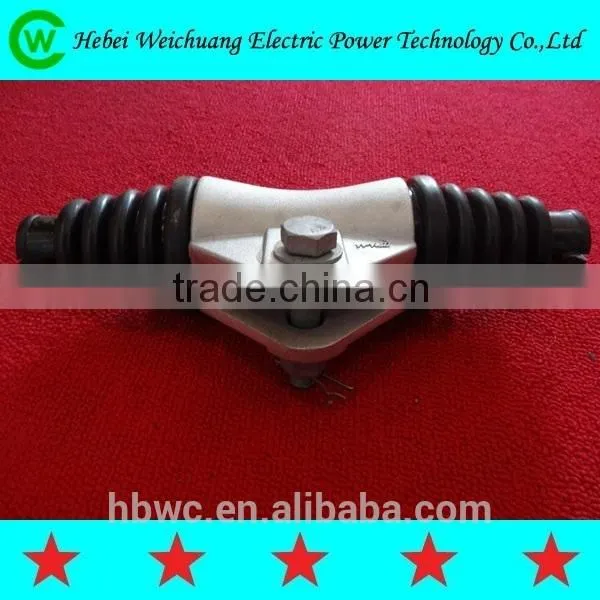

d. The structure coupled with flexible rubber clip block, enhanced self-damping to reduce abrasion.
e. rounded end processing, increased corona voltage.
f. high-quality aluminum alloy material to enhance the mechanical properties of the clamp and corrosion resistance, significantly extended service life.
Technical requirements: meet the DL / T 766-2003 optical fiber composite overhead ground wire (OPGW) with the preformed helical fittings technical requirements and test methods.
Order Notes: a. According to the diameter of OPGW cable parameters such as selection of suitable Suspension.
b. the number of configurations as follows: 1 set / line tower.
c. The lay direction of inner twisted wire is opposite with lay direction of the outer twist wire, the standard configuration: Lay direction for OPGW outer twisted wire is right, If left, it should be specified in the order contract.
d. According the mount point on the tower, select the appropriate link fittings (such as the U-screws, U-type hanging ring, UB clevis etc.).
e. Clamp Strength is divided into 70kN, 100kN , 120KN and so on.
If you are interested in our productions.pls ,don't hesitate concact us
Welcome ,to visit to our wedsite www.hbwc.en.china.cn
