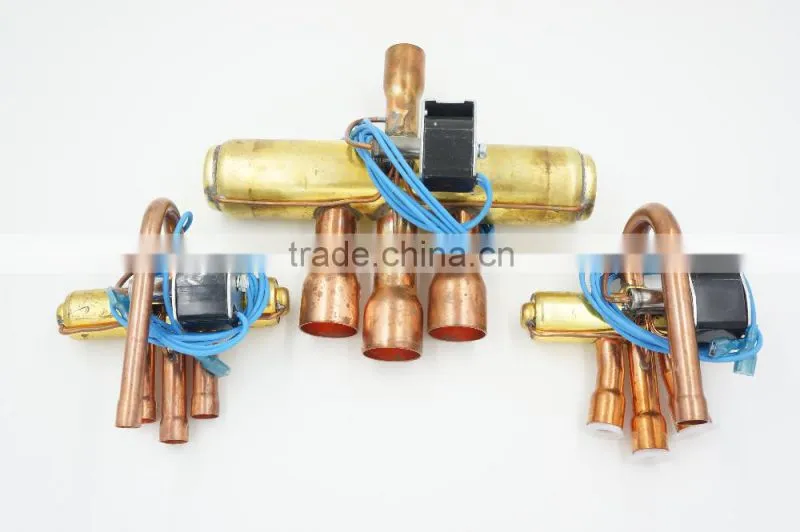

FRIEVER 4 Way Reversing Valve
US$ 5 - 10
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FRIEVER
Model Number:
4v11
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRIEVER Non-adhesive Tape/Air Conditioner Pipe Wrapping TapeUS$ 0.005 - 1MOQ: 5000 Rolls -
FRIEVER Refrigerator Latch CT-1600US$ 1 - 10MOQ: 100 Pieces
-
FRIEVER Cold-storage LatchUS$ 1 - 20MOQ: 100 Pieces
-
FRIEVER Air-Conditioner Split Valve/Service ValveUS$ 0.5 - 5MOQ: 500 Pieces
-
FRIEVER Joining Hand ValveUS$ 1 - 5MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
FRIEVER
Model Number
4v11
Type
Heating Tube
Application
Refrigeration Parts
Certification
Other, RoHS
Product Description
4 Way Reversing Valve is the component to provide heating and cooling from the system to the conditioned space.
It diverts the direction of the refrigerant flow under the electromagnetism of the pilot valve
to supply either heating in winter or cooling in summer to the conditioned place
Capacity: 4kW
Power: 3/4 to 1.5hp
Internal leakage: less than 1,000ml/min
Maximum operation pressure differential: 2.25mPa
Refrigerants: R22, R407c, R134a, and R410a
Connection at high-pressure side: 8.1mm
Connection at low-pressure side: 9.65mm
Minimum operation pressure differential: 0.25mPa
| MODEL | PAVEMENT(MM) | R22 CAPACITY(US TON) | RANGER OF CAPACITY (REFERENCE VALUE)(KW) | JOINT PIPE (MM) | |||
| R22/R407C | R410A | R134A | D PIPE | ESC PIPE | |||
| MIN/MAX | MIN/MAX | MIN/MAX | |||||
| DSF-4A23 | 8 | 1 | 1/4.9 | 1/5.5 | 1/3.9 | 5/16 | 3/8 |
| DSF-4A33 | 8 | 1 | 1/4.9 | 1/5.5 | 1/3.9 | 3/8 | 3/8 |
| DSF-4B23 | 8 | 1 | 1/4.9 | 1/5.5 | 1/3.9 | 5/16 | 3/8 |
| DSF-9A24 | 11.1 | 2 | 2.6/9.8 | 2.6/11 | 2.6/7.7 | 5/16 | 1/2 |
| DSF-9A34 | 11.1 | 2 | 2.6/9.8 | 2.6/11 | 2.6/7.7 | 3/8 | 1/2 |
| DSF-9B24 | 11.1 | 2 | 2.6/9.8 | 2.6/11 | 2.6/7.7 | 5/16 | 1/2 |
| DSF-9B34 | 11.1 | 2 | 2.6/9.8 | 2.6/11 | 2.6/7.7 | 3/8 | 1/2 |
| DSF-11C35 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 3/8 | 5/8 |
| DSF-11C45 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 1/2 | 5/8 |
| DSF-11D35 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 3/8 | 5/8 |
| DSF-11D45 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 1/2 | 5/8 |
| DSF-11E35 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 3/8 | 5/8 |
| DSF-11E45 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 1/2 | 5/8 |
| DSF-11E46 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 1/2 | 3/4 |
| DSF-20A46 | 16 | 6 | 4/19 | 5/24 | 3/15 | 1/2 | 3/4 |
| DSF-20B46 | 16 | 6 | 4/19 | 5/24 | 3/15 | 1/2 | 3/4 |
| DSF-20A47 | 16 | 6 | 4/19 | 5/24 | 3/15 | 1/2 | 7/8 |
| DSF-20A57 | 16 | 6 | 4/19 | 5/24 | 3/15 | 5/8 | 7/8 |
| DSF-35A47 | 20 | 10 | 11/38 | 13/47 | 9/29 | 1/2 | 7/8 |
| DSF-35A57 | 20 | 10 | 11/38 | 13/47 | 9/29 | 5/8 | 7/8 |
| DSF-35A67 | 20 | 10 | 11/38 | 13/47 | 9/29 | 3/4 | 7/8 |
| DSF-35A69 | 20 | 10 | 11/38 | 13/47 | 9/29 | 3/4 | 9/8 |
| DSF-35A79 | 20 | 10 | 11/38 | 13/47 | 9/29 | 7/8 | 9/8 |
| DSF-48A711 | 25 | 13 | 23/47 | 27/59 | 19/36 | 7/8 | 11/8 |
| DSF-48A911 | 25 | 13 | 23/47 | 27/59 | 19/36 | 9/8 | 11/8 |
| DSF-48F711 | 25 | 13 | 23/47 | 27/59 | 19/36 | 7/8 | 11/8 |
| DSF-48F911 | 25 | 13 | 23/47 | 27/59 | 19/36 | 9/8 | 11/8 |
| DSF-70A810 | 26 | 20 | 18/72 | 21/91 | 14/56 | 1 | 5/4 |
| DSF-70A911 | 26 | 20 | 18/72 | 21/91 | 14/56 | 9/8 | 11/8 |
| DSF-100A1012 | 35 | 30 | 26/109 | 31/137 | 22/85 | 5/4 | 3/2 |
| DSF-100A1013 | 35 | 30 | 26/109 | 31/137 | 22/85 | 5/4 | 13/8 |
| DSF-140A1214 | 41 | 40 | 35/145 | 42/183 | 29/113 | 3/2 | 7/4 |
| DSF-140A1314 | 41 | 40 | 35/145 | 42/183 | 29/113 | 13/8 | 7/4 |
| DSF-180A1217 | 46 | 50 | 35/181 | 42/228 | 29/141 | 3/2 | 17/8 |
| DSF-180A1417 | 46 | 50 | 35/181 | 42/228 | 29/141 | 7/4 | 17/8 |
