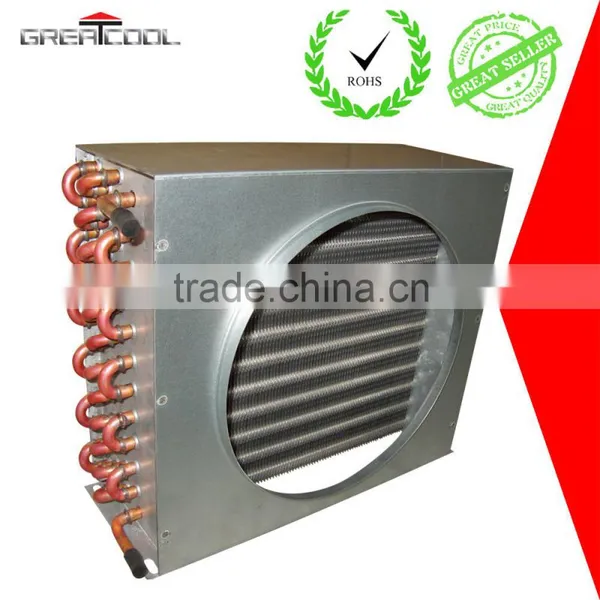

GREATCOOL Vending Machine Condenser/water Cooler Condenser

GREATCOOL Vending Machine Condenser/water Cooler Condenser thumbnail-1
GREATCOOL Vending Machine Condenser/water Cooler Condenser photo-1
US$ 3 - 1,000 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GREATCOOL
Model Number:
fc84
Contact Supplier Request Quote Chat Now
Hangzhou Greatcool Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GREATCOOL
Model Number fc84
Type Condenser
Application Refrigeration Parts
Certification Other, RoHS
Specifications of water cooler condenser
Product Description





copper tube diameter: 5/16 and 3/8

type of copper tube:inner screw thread/inner grooved pipe or bare/smooth pipe.

aluminum foil: hydrophilic or bare.

fin type:  flat or corrugated or sine-wave

Slide plate: galvanized steel plate.



aluminum fin space:can up to 7.5mm max

pitch of holes and pitch of rows:   25*21.65mm and 31.75*27.5mm.

product length:   up to 4meters.

product height:   not limited

Size from 1/4HP to 20HP

available temperature is above -40 degree.



We can supply according to your drawings or samples,also we can design as you need.



vending machin condenser,fin condenser,air cooled condenser,heat exchanger,copper condenser, aluminum condenser,condenser coil,refrigerator condenser,fridge condenser,freezer condenser,air-conditioner condenser,refrigeration parts,HVAC parts.





No. Drawing No. Dimensions (mm) Heat Exchange Area m2 FAN
(φmm)		 Cooling Capacity
(Watt) 		Rated Input of Fan Motor
(Watt)
La Lb Lc D Df Di Dg H 3.5mm 2.5mm
1 SFN-1/4HPD-A 320 290 260 100 210 3/8 3/8 270 1.6 2.2 200 774 33
2 SFN-1/4HPD-B 235 230 925 38
3 SFN-1/3HPD 360 330 300 100 260 3/8 3/8 320 2.4 3.4 250 1235 70
4 SFN-3/8HPD 360 340 310 100 260 3/8 3/8 320 2.5 3.5 250 1333 70
5 SFN-1/2HPD 360 330 300 120 260 3/8 3/8 290 3.3 4.6 250 1570 70
6 SFN-3/4HPD-A 390 360 330 120 260 3/8 3/8 320 4.1 5.7 250 1779 70
7 SFN-3/4HPD-B 310 300 2406 120
8 SFN-1HPD-A 390 360 330 145 260 3/8 3/8 320 5.4 7.6 250 2025 70
9 SFN-1HPD-B 310 300 2817 120
10 SFN-1HP-CD 660 630 600 160 2*260 1/2 1/2 295 6.7 9.4 2*250 3117 2*70
11 SFN-1.5HPD 460 430 400 145 310 1/2 1/2 320 6.5 9.1 300 3214 120
12 SFN-1.5HPD-CD 660 630 600 160 2*260 5/8 1/2 295 9.0 12.6 2*250 3476 2*70
13 SFN-2HPD 440 410 380 165 310 5/8 1/2 360 9.1 12.7 300 3867 140
14 SFN-3HPD 660 630 600 200 420 3/4 5/8 520 22.8 31.9 400 7775 180
15 SFN-4HPD 660 630 600 220 420 3/4 5/8 520 27.3 38.2 400 9550 180
16 SFN-5HPD 1110 1080 1050 200 2*420 7/8 5/8 520 39.9 55.9 2*400 13975 2*180
17 TSFN-1/3HP 295 265 235 150 235 3/8 3/8 260 2.4 3.4 230 1285 38
18 TSFN-1/2HP 390 360 330 150 235 1/2 3/8 260 3.8 5.3 230 1510 38
19 TSFN-3/4HP 460 430 400 150 235 1/2 3/8 260 4.6 6.4 230 1835 38
20 TSFN-1HP 590 560 530 160 2*235 5/8 1/2 260 6.0 8.4 2*230 2791 2*38
21 TSFN-1.5HP 645 615 580 160 2*235 5/8 1/2 260 8.0 11.2 2*230 3235 2*38
