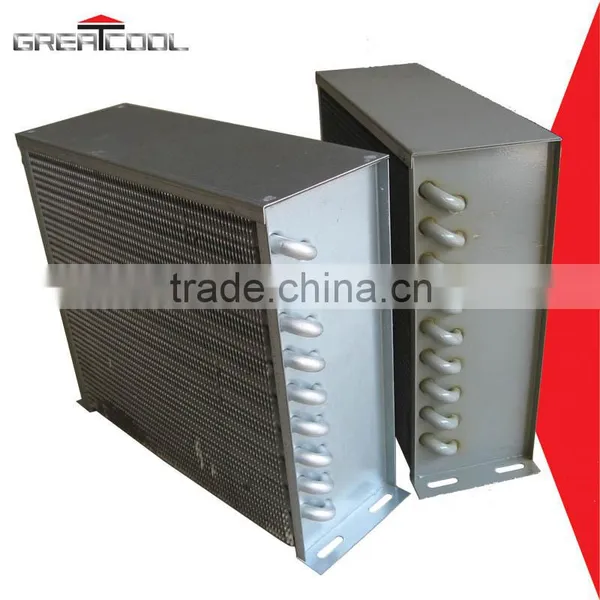

GREATCOOL Refrigeration & Heat Exchange Parts Air Cooled Condenser

Name: GREATCOOL Refrigeration & Heat Exchange Parts Air Cooled Condenser
Brand: GREATCOOL
Availability: InStock

FOB Price

USD $5 - $20 / Piece

100 Pieces(Min.Order)

Supply Ability 15000 Piece / Pieces per Month
Port SHANGHAI NINGBO
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	GREATCOOL
Model Number	fc29	Type	Condenser
Application	Refrigeration Parts	Certification	Other, RoHS, RoHs

Product Description

Specifications of Air Cooled Condenser

Product Description

SPECIFICATION of SFN Condenser
No.	Drawing No.	Dimensions (mm)								Heat Exchange Area m²		FAN (φmm)	Cooling Capacity (Watt)	Rated Input of Fan Motor Watt
No.	Drawing No.	La	Lb	Lc	D	Df	Di	Dg	H	3.5mm	2.5mm	FAN (φmm)	Cooling Capacity (Watt)	Rated Input of Fan Motor Watt
1	SFN-1/4HPD-A	320	290	260	100	210	3/8	3/8	270	1.6	2.2	200	774	33
2	SFN-1/4HPD-B	320	290	260	100	235	3/8	3/8	270	1.6	2.2	230	925	38
3	SFN-1/3HPD	360	330	300	100	260	3/8	3/8	320	2.4	3.4	250	1235	70
4	SFN-3/8HPD	360	340	310	100	260	3/8	3/8	320	2.5	3.5	250	1333	70
5	SFN-1/2HPD	360	330	300	120	260	3/8	3/8	290	3.3	4.6	250	1570	70
6	SFN-3/4HPD-A	390	360	330	120	260	3/8	3/8	320	4.1	5.7	250	1779	70
7	SFN-3/4HPD-B	390	360	330	120	310	3/8	3/8	320	4.1	5.7	300	2406	120
8	SFN-1HPD-A	390	360	330	145	260	3/8	3/8	320	5.4	7.6	250	2025	70
9	SFN-1HPD-B	390	360	330	145	310	3/8	3/8	320	5.4	7.6	300	2817	120
10	SFN-1HP-CD	660	630	600	160	2-260	1/2	1/2	295	6.7	9.4	2-250	3117	2-70
11	SFN-1.5HPD	460	430	400	145	310	1/2	1/2	320	6.5	9.1	300	3214	120
12	SFN-1.5HPD-CD	660	630	600	160	2-260	5/8	1/2	295	9.0	12.6	2-250	3476	2-70
13	SFN-2HPD	440	410	380	165	310	5/8	1/2	360	9.1	12.7	300	3867	140
14	SFN-3HPD	660	630	600	200	420	3/4	5/8	520	22.8	31.9	400	7775	180
15	SFN-4HPD	660	630	600	220	420	3/4	5/8	520	27.3	38.2	400	9550	180
16	SFN-5HPD	1110	1080	1050	200	2-420	7/8	5/8	520	39.9	55.9	2-400	13975	2-180
17	TSFN-1/3HP	295	265	235	150	235	3/8	3/8	260	2.4	3.4	230	1285	38
18	TSFN--1/2HP	390	360	330	150	235	1/2	3/8	260	3.8	5.3	230	1510	38
19	TSFN-3/4HP	460	430	400	150	235	1/2	3/8	260	4.6	6.4	230	1835	38
20	TSFN-1HP	590	560	530	160	2-235	5/8	1/2	260	6.0	8.4	2-230	2791	2-38
21	TSFN-1.5HP	645	615	580	160	2-235	5/8	1/2	260	8.0	11.2	2-230	3235	2-38
					Condenser Capacity calculations are based on the following conditions:

											TA/Inlet Air temperature			35
											TC/Condensing temperature			50
											Refrigerant			R404A
											TD=TC-TA			15
											TE/Evaporation temperature			-10

EXHIBITIONS

2013 Thailand Bangkok RHVAC

2015 ACREX INDIA EXHIBITION

2015 SHANGHAI REFRIGERATION FAIR

Packaging & Shipping

More details,please feel free to contact with us.
