Electric Power Fitting, Line Fitting Suspension Clamp-clamp

Hebei Weichuang Electric Power Technology Co.,Ltd

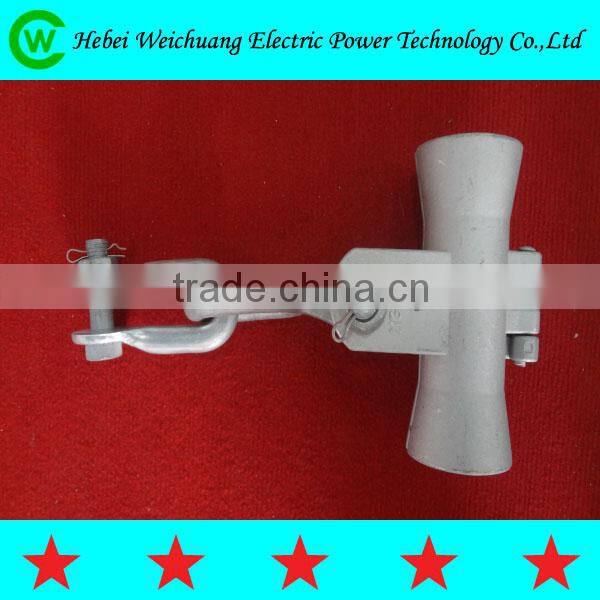

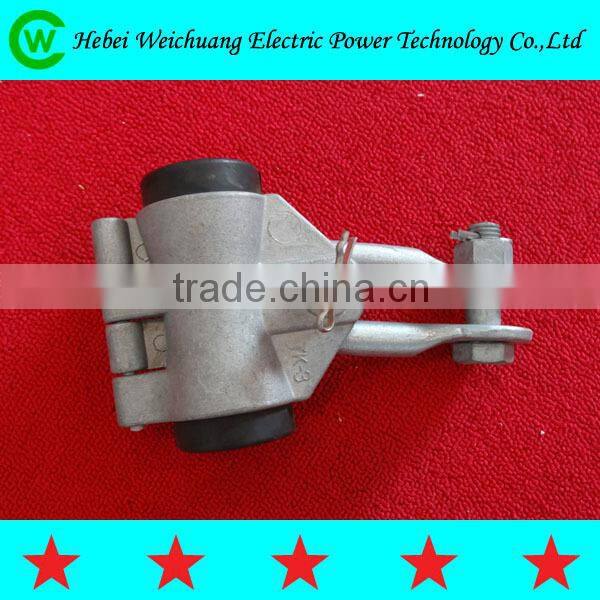

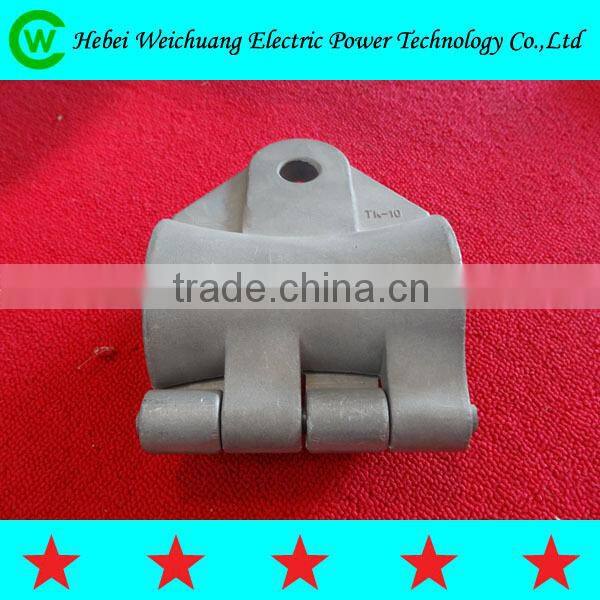

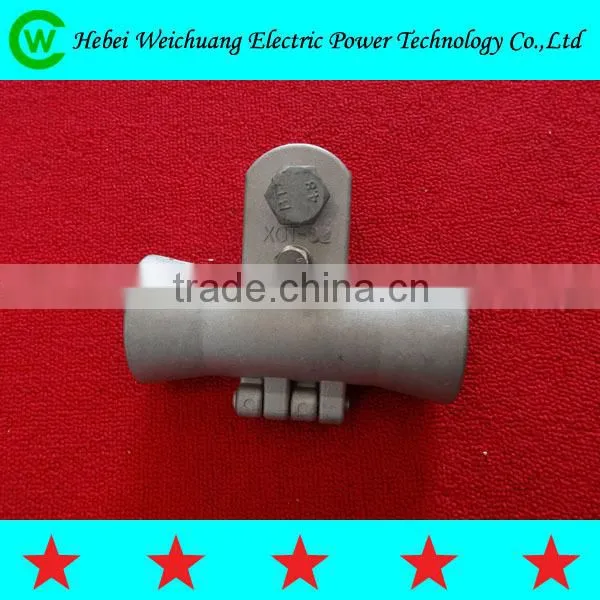

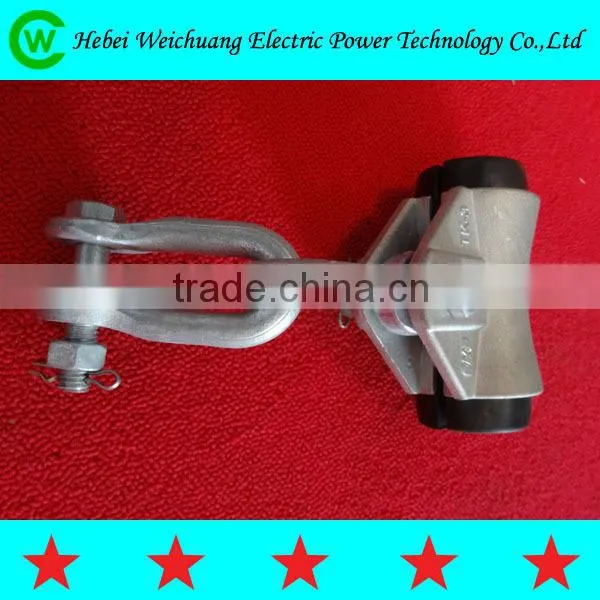

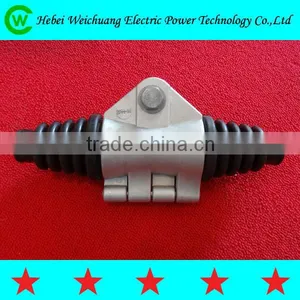

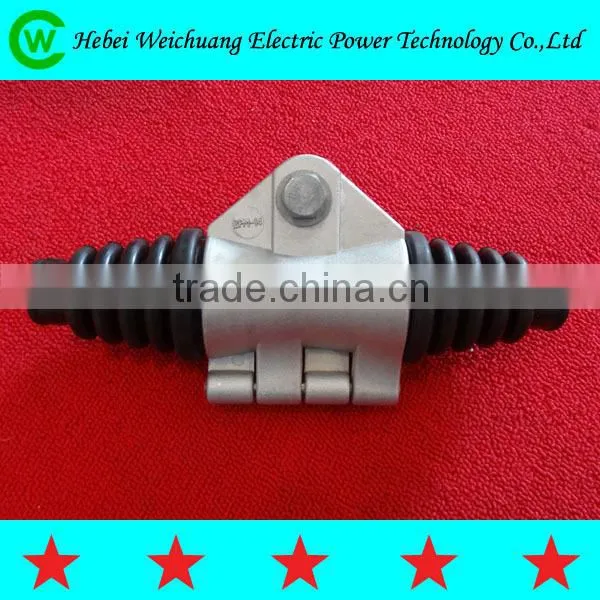

1) Suspension clamps are used to hang conductor or ground wire through insulators or link fitting to tower arms or substation structure. The clamps are made of malleable iron or aluminium alloy.

2) The meanings of the letter & Arabic figure in the catalog are show as follow.

X-suspension clamp G-fixed S-double clamp U-U bolt J-strength H-alunimium alloy F-corona control K-under axle type T-envelope type A-with a socket-clevis B-with U clevis C-hang-down type

3) The suspension angle of suspension clamps is not less than 25’( , the radius of curvature is not less than the dia of installed by 8-10, and the percentage of the grip on different kinds O leads to the calculating capability of snap show in following table.

4) As the suspension clamps are used to AAC and ACSR, the conductor may be wound by aluminium tapes or preformed armour rods for protecting these taps or rods are included in the diameter of suitable conductor.

The body and keeper are made of malleable iron. Cotter-pins are made of stainless steel. Other parts are made of steel. All ferrous parts are hot-dip galvanized

.

Packaging:
