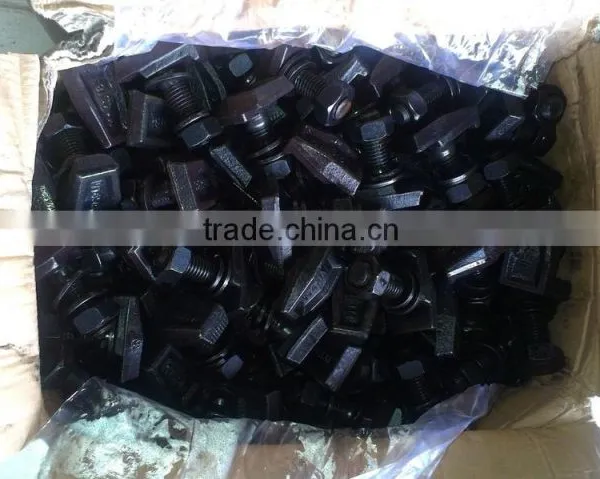

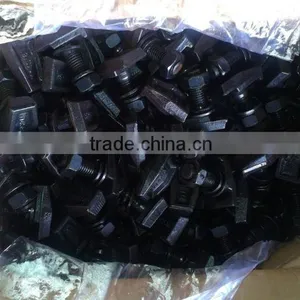

Elevator Guide Rails – Frequently Asked Questions
How to name guide rails?
The departure point of naming guide rails varies from country to country. Some name the guide rail according to the width of its aspect of guiding, such as T9, T16. While others name based on its weight, like 8LB, 12LB . However, we mostly name guide rail according to its width of bottom, for example: T70, T50.
What difference is there between cold-drawn and planed guide rails?
The process for cold-drawn involves stretching the material thus modifying its structure. Planing involves machining the guide rail by stripping the edgings.
Are the speed limits for the different qualities precise?
No, the calculations for comfort are carried out using a mathematical model validated with practical tests, hence the speed limits set are approximate.
Why are the guide rails 5 meters long?
The guide rails are 5 meters long because it is the appropriate manufacturing length and allows the parameters for straightening to be checked properly.
Do the guide rails have any surface treatment?
No, the guide rails do not have surface treatments. On cold-drawn guide rails the cold-drawn process modifies the mechanical features of the material.
1. Material: all types of guide rails material is Q235
Item Grade |
Chemical Composition |
||||
C |
Mn |
Si |
S |
P |
|
Q235 |
0.14-0.22 |
0.35-0.65 |
0.12-0.30 |
≤0.05 |
≤0.045 |
Mechanical property |
|
||||
Yield Strength N/mm2 |
Tensile Strength N/mm2 |
Elongation |
|
||
≥235 |
400-450 |
≥24 |
|
||

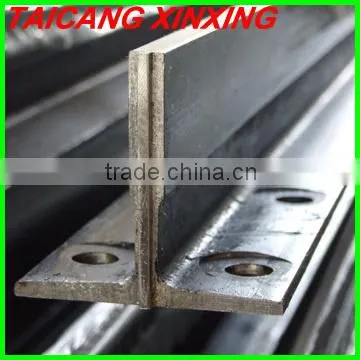

2.The types of guide rails basic dimensions: are as follow
T45/A: 45*45*5mm
T50/A: 50*50*5mm
T70-1/B,T70/A: 70mm*65mm*9mm
T75/B orT75-3/B: 75mm*62mm*10mm
T78/B: 78mm*56mm*10mm
T82/B: 82.5mm*68.25mm*9mm
T82-3/B:82mm*62mm*15.88mm
T89/B or T89-1/B: 89mm*62mm*16mm
T90/B: 90mm*75mm*16mm
T114/B:114*89*16mm
T127-1/B: 127*89*16mm
T127-2/B: 127*89*16mm
TK5A
TK5
TK3A
8. remarks
All our products are produced according to ISO7465 international standard. If you have your own standard, we can also produce according to your specific dimensions. Dimensions displayed here is only a brief version. If you want details, please contact me.

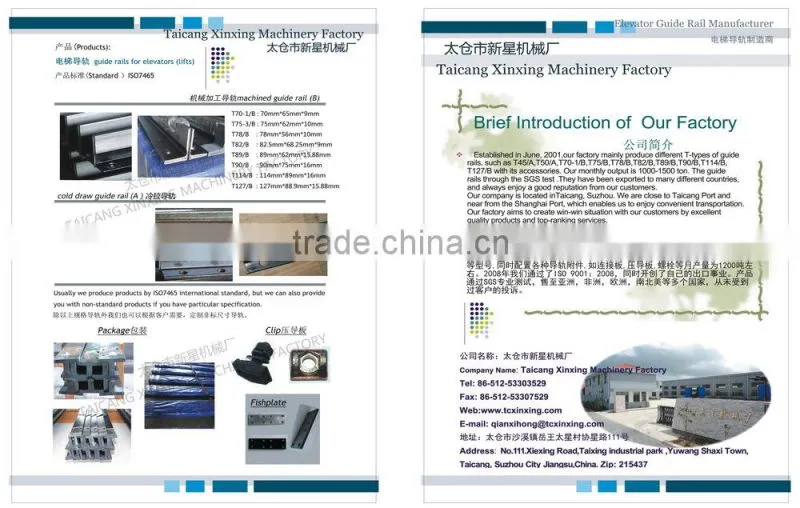

With more than 30 years' experience in machinery industry, Mr. Qian has the factory of his own in 2001.
Since 2006, our factory has been developed from a factory that mainly providing machinery processing services to a specialized manufacturer of a series of guide rails for elevators. In 2008, we started foreign trade business.
As rich experience in machinery and elevator guide rails, our company also provides some equipment modification and maintenance work for other guide rails companies. At the same time we never stop improving the manufacturing processes to keep the good quality of the rails.

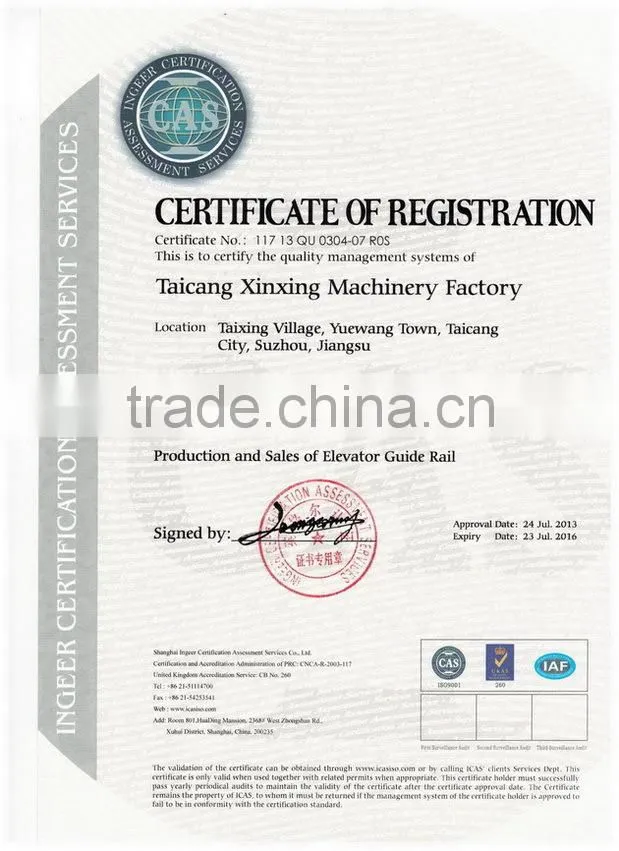

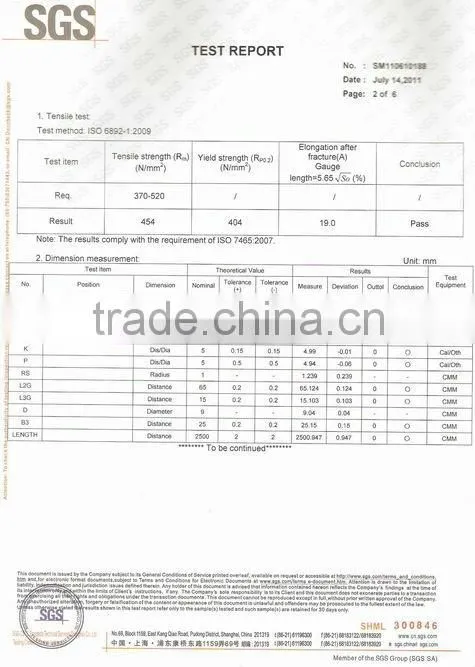

Our factory has passed ISO 9001 Certification. And our guide rails has passed type test in our industry.
The daughter of Mr. Qian is in charge of the foreign trade business. We are able to listen carefully to the needs of customers and prepare the goods well and quickly.
