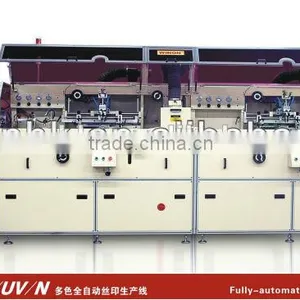

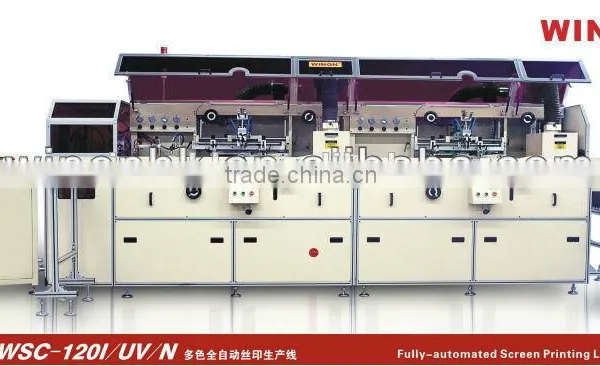

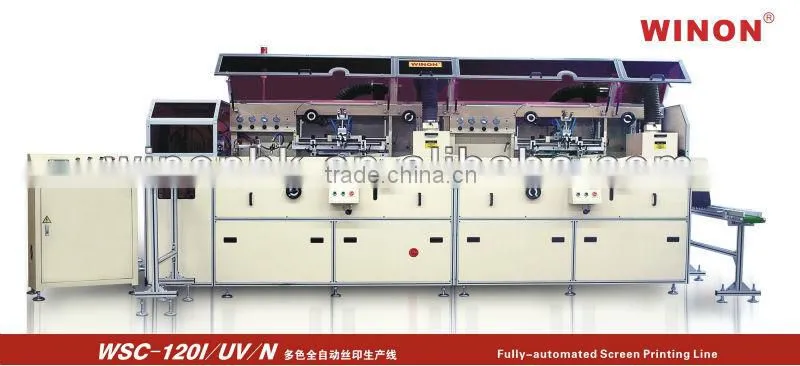

Help CenterWINON WSC-120 I/UV/N Fully Automated High Speed Multi Screen Printing Machine With UV
Related Products
-
WinonWSC-260A Curve Screen Printing MachineNegotiableMOQ: 1 Unit -
WINON WSC-360A Curve Screen Printing MachineNegotiableMOQ: 1 Unit
-
WINON WSC-500 Cup Surface Screen Printing MachineNegotiableMOQ: 1 Unit
-
WSC-160B WINON Electrical Flat Screen PrinterNegotiableMOQ: 1 Unit
-
WINON WSC-700BEV High Precision Suction Flat Screen Printing MachineNegotiableMOQ: 1 Unit
Specifications
Pneumatic and control system from Germany and JapanHigh printing quality
Easy operation with Touch Screen control panel

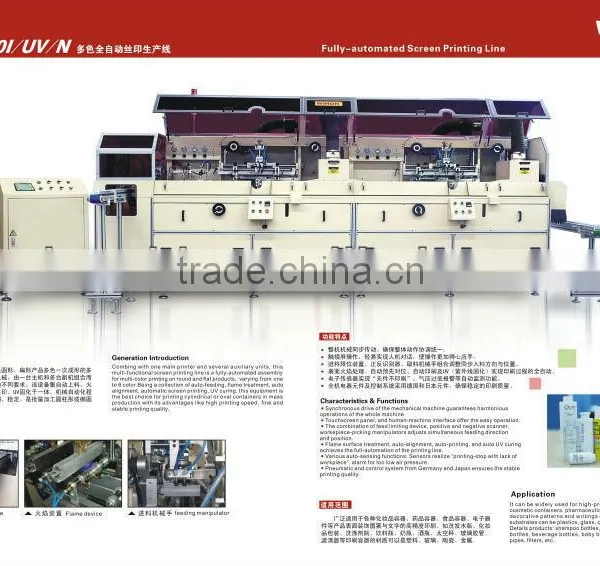

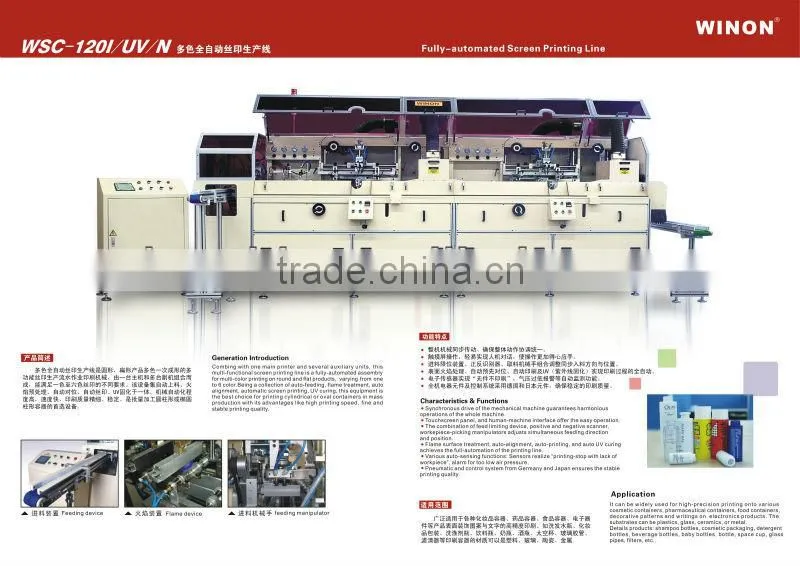

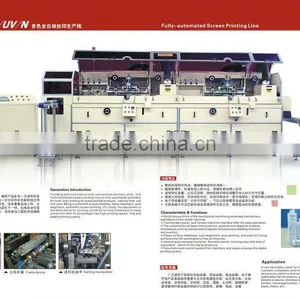

Coming with one main printer and several auciliary units, this milti-functional screen printing line is a fully automated assembly for multi color printing on round and flat products, varying from one to 6 color.
Being a collection of auto feeding, flame treatment, auto alignment, automatic screen printing, UV curing, this equpment is the best choice for printing cylindrical or oval containers in mass production with its advantags like high printing speed, fine and stable printing quality.
Functions:
-The combination of feed limiting device, positive and negative scanner, workpiece picking manipulators adjusts simultaneous feeding direction and position.
-Flame surface treatment, auto alignment, auto printing, and auto UV curing achieves the full auotmation of the printing line.
-Various auto sensing functions: sensors realize " printing stop with lack of workpiece", alarm for too low air pressure.

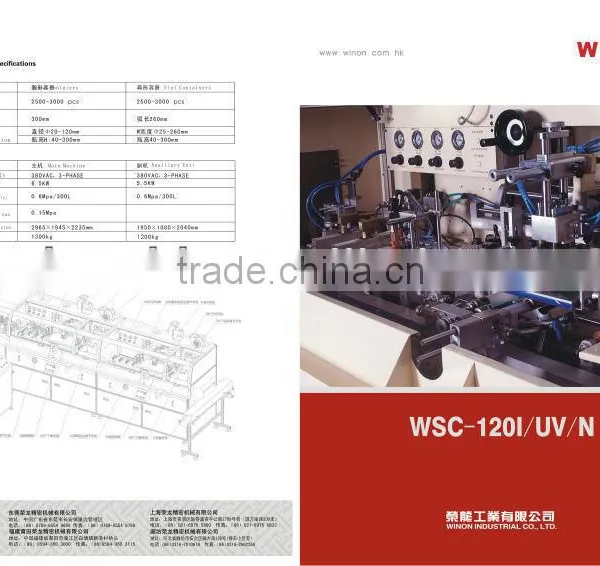

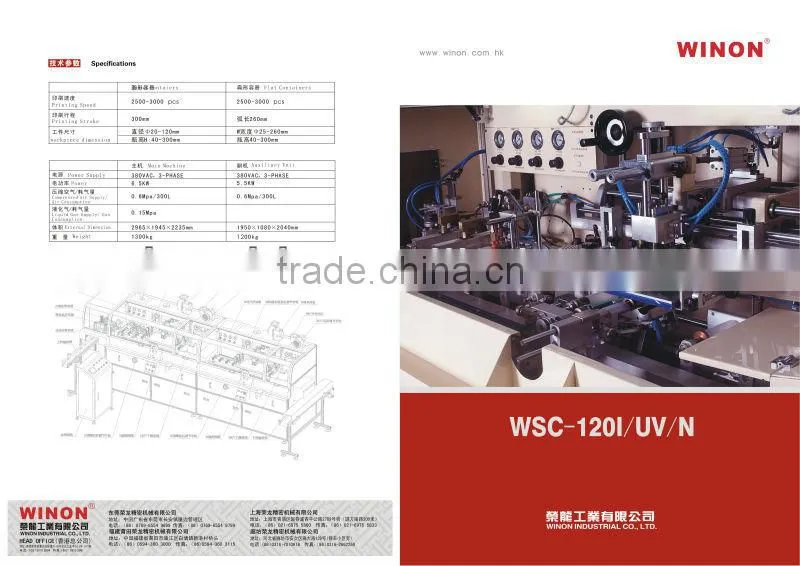

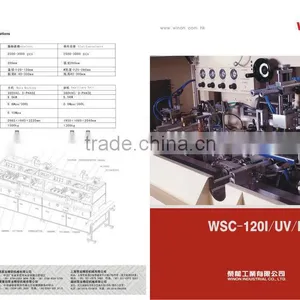

| TECHNICAL SPECIFICATIONS FOR ROUND CONTAIERS: | |
| Model: | WSC-120I/UV/2 |
| Printing Color: | 2 |
| Printing area (mm): | 120x300mm |
| Printing Speed (hr): | 2500-3000 PCS/Hour |
| Printing Product Size (mm): | D(Φ20-120mm) x H(40-300mm) |
| Stroke: | 300mm |
| Power Supply: | 380V, 3-PHASE, 6.5KW |
| Voltage: | 380V |
| Air Supply: | 0.6 Mpa/ 300L |
| Gas Sypply: | 0.15Mpa |
| Auotmatic Grade: | Fully Automated |
| CONTROL PANEL | PLC |
| Machine Dimension (mm): | 2965x1945x2235mm |
| Machine Net Weight (kg): | 1300kg |
| Dimension of Wooden Case (mm): | |
| Gross Weight of Wooden Case (kg): | |
| TECHNICAL SPECIFICATIONS FOR FLAT CONTAIERS: | |
| Model: | WSC-120I/UV/2 |
| Printing Color: | 2 |
| Printing area (mm): | 260x300mm |
| Printing Speed (hr): | 2500-3000 PCS/Hour |
| Printing Product Size (mm): | W(Φ25-260mm) x H(40-300mm) |
| Stroke: | 260mm |
| Power Supply: | 380V, 3-PHASE, 5.5KW |
| Voltage: | 380V |
| Air Supply: | 0.6 Mpa/ 300L |
| Gas Sypply: | |
| Auotmatic Grade: | Fully Automated |
| CONTROL PANEL | PLC |
| Machine Dimension (mm): | 1950x1080x2040mm |
| Machine Net Weight (kg): | 1200kg |
| Dimension of Wooden Case (mm): | |
| Gross Weight of Wooden Case (kg): | |
WOODEN CASE
PLEASE ADVISE IF YOU NEED FUMIGATION
