Specifications
High Quality Pad printing machine with Germany/Japan parts usedQuiet & Stable operation.
High Precision
Reasonable price
This is New Version of 160 Stroke Pad printing machine.
This is Standard with New Control Panel and PAD CYLINDER PROTECTOR already.

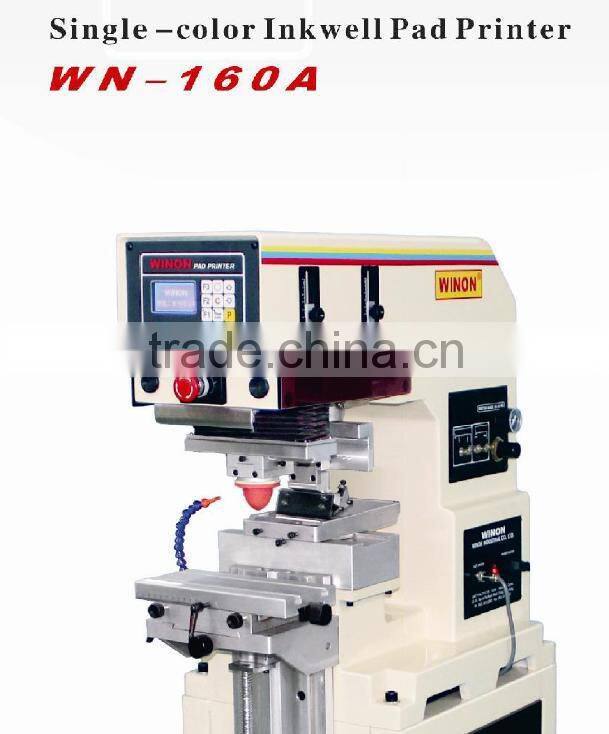

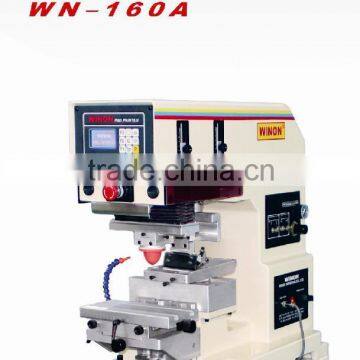

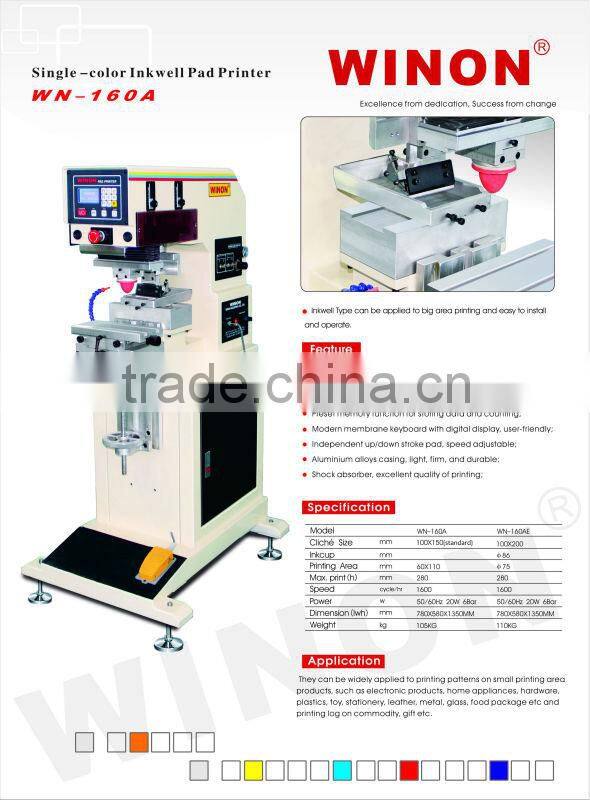

TECHNICAL SPECIFICATIONS of single color inkwell pad printer:
| MODEL: | WN-160A |
| INKCUP(MM): | N/A |
| CLICHE SIZE(MM): | 150 X 100 (6"x4") |
| PRINTING AREA(MM): | 110 X 60 |
| MAX PRINT(MM): | 280 |
| CYCLE/HOUR: | 1600 |
| POWER(W): | SINGLE-PHASE, 110V OR 220V, 50/60HZ, 20W, 6BAR |
| DIMENSION(MM): | 780 X 580 X 1350 |
| NET WEIGHT(KG): | 105 |

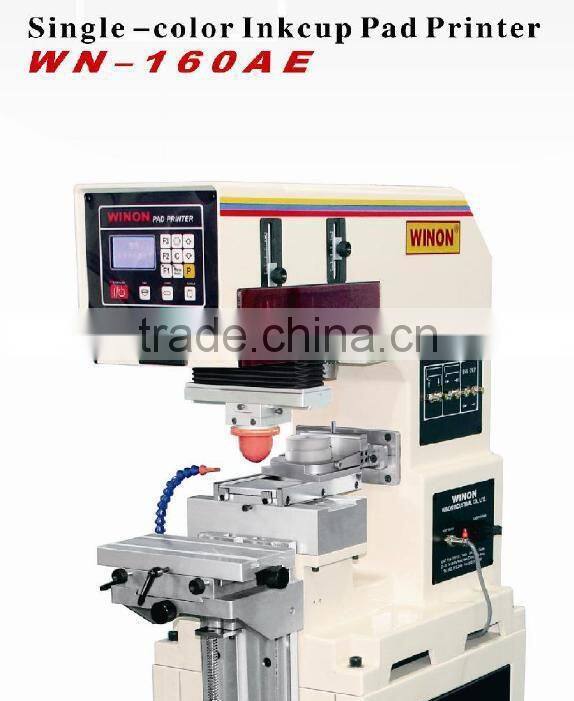

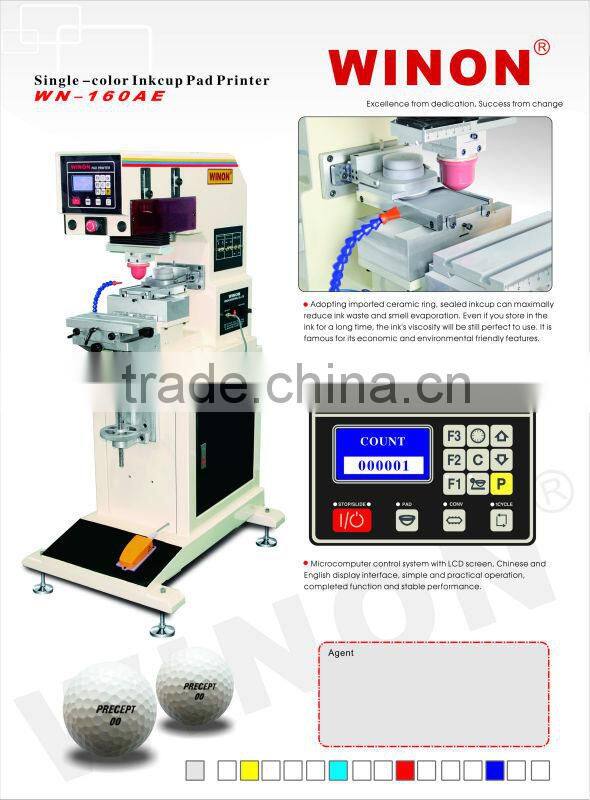

TECHNICAL SPECIFICATIONS of single color inkcup pad printer:
| MODEL: | WN-160AE |
| INKCUP(MM): | Diameter 86 |
| CLICHE SIZE(MM): | 100 X 200 (4"x8") |
| PRINTING AREA(MM): | Diameter 75 |
| MAX PRINT(MM): | 280 |
| CYCLE/HOUR: | 1600 |
| POWER(W): | SINGLE-PHASE, 110V OR 220V, 50/60HZ, 20W, 6BAR |
| DIMENSION(MM): | 780 X 580 X 1350 |
| NET WEIGHT(KG): | 110 |

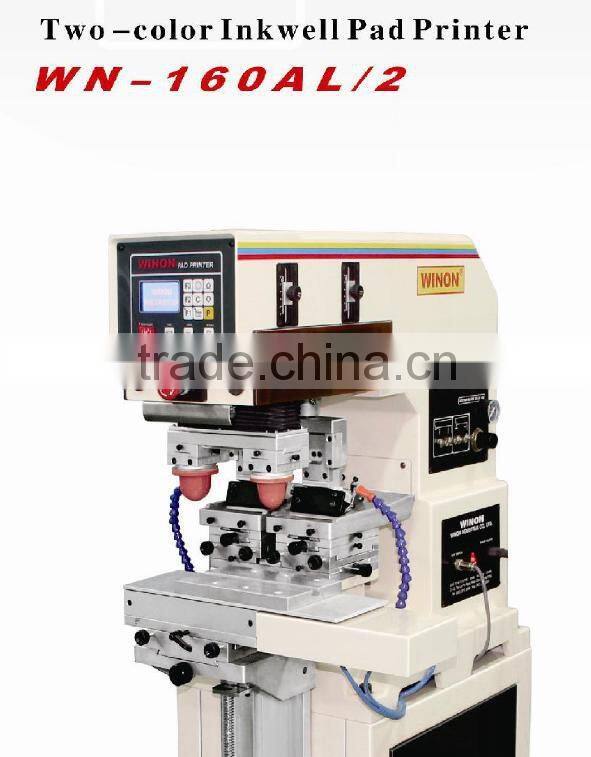

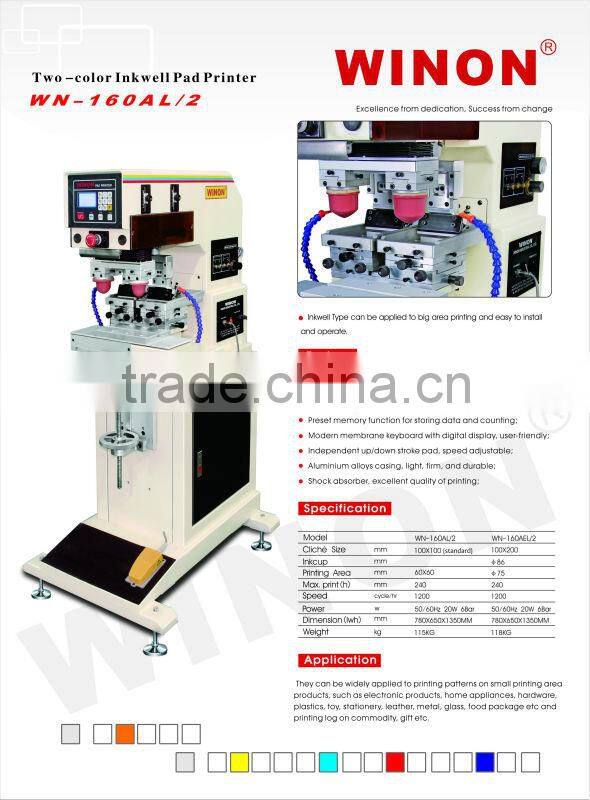

TECHNICAL SPECIFICATIONS of Two color inkwell pad printer:
| MODEL: | WN-160AL/2 |
| INKCUP(MM): | N/A |
| CLICHE SIZE(MM): | 100 X 100 (4"x4") |
| PRINTING AREA(MM): | 60 X 60 |
| MAX PRINT(MM): | 240 |
| CYCLE/HOUR: | 1200 |
| POWER(W): | SINGLE-PHASE, 110V OR 220V, 50/60HZ, 20W, 6BAR |
| DIMENSION(MM): | 780 X 650 X 1350 |
| NET WEIGHT(KG): | 115 |

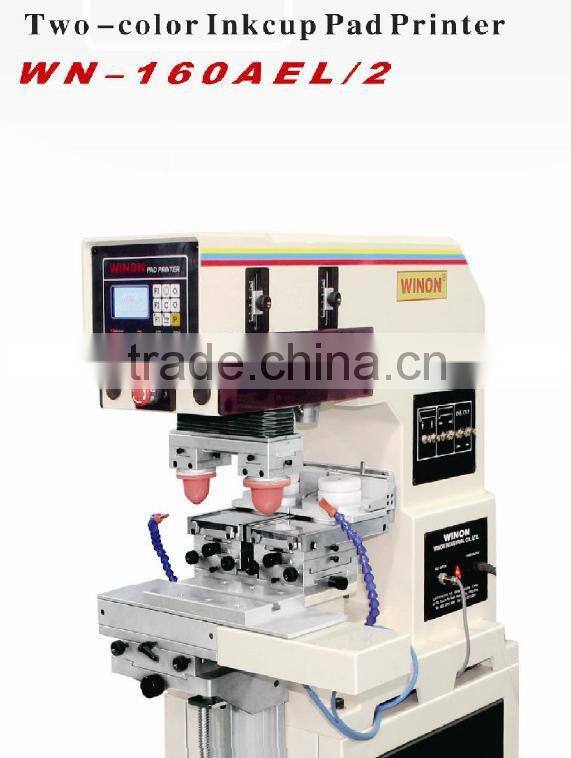

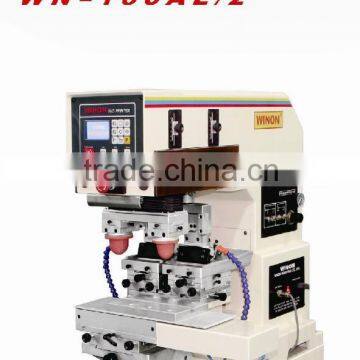

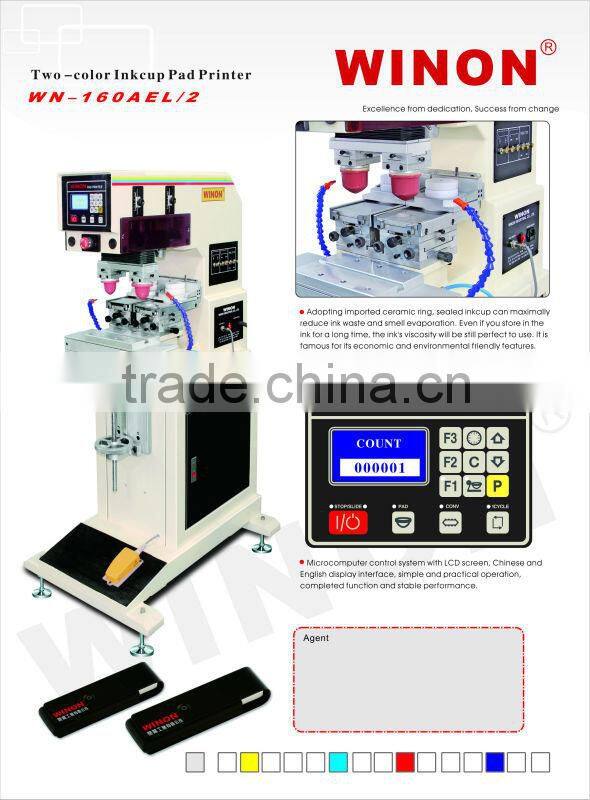

TECHNICAL SPECIFICATIONS of Two color inkcup pad printer:
| MODEL: | WN-160AEL/2 |
| INKCUP(MM): | Diameter 86 |
| CLICHE SIZE(MM): | 100 X 200 (4"x8") |
| PRINTING AREA(MM): | Diameter 75 |
| MAX PRINT(MM): | 240 |
| CYCLE/HOUR: | 1200 |
| POWER(W): | SINGLE-PHASE, 110V OR 220V, 50/60HZ, 20W, 6BAR |
| DIMENSION(MM): | 780 X 650 X 1350 |
| NET WEIGHT(KG): | 118 |
New design of 160 Stroke.
-The Machine body and inkcup pushing is improved with New Design.
Low caoyin and more stability when machine in printing.
This is more User friendly of Parts Interoperability.
ADDITIONAL OPTIONAL ASSEMBLY with additional Charge.
LET US KNOW, IF YOU NEED ADDITIONAL OPTIONAL ASSEMBLY FOR WN-160.
-FOOTSWITCH (THE FOOTSWITCH FS-5 WITH COVER ON TOP FOR MORE SAFETY. )
-MAGNETIC INKWELL ( FOR INKWELL MACHINE ONLY.)
-METALLIC INKCUP ( LOWER INKCUP, HIGH INKCUP, TOP FORCE INKCUP)
-CERAMIC RING ( METALLIC OR PLASTIC INKCUP.)
-STEEL RING ( FOR PLASTIC INKCUP ONLY)
-HOT AIR SYSTEM
The following equipment is temporarily not available now.
-NO PAD CLEANING SYSTEM
-SAFETY EQUIPMENT (SAFETY DOOR, SAFETY CIRCUIT, +QUICK EXHAUST VALVE FUNCTION, ADD RETURN VALVE)
Please contact us, if you are Interested.
We will send you more information and quotation asap.
WOODEN CASE
PLEASE ADVISE IF YOU NEED FUMIGATION
Please scan with following QR code for know more about WINON !!
Please scan with following QR code to Email us!!
