Galvanized Preformed Opgw Tension Clamp

Specifications

Thank you for you to pay attention to my product ,If you want to know more about ,pls see under ;If you have any reuqires,pls without hesitate contact me

opgw tension clamp

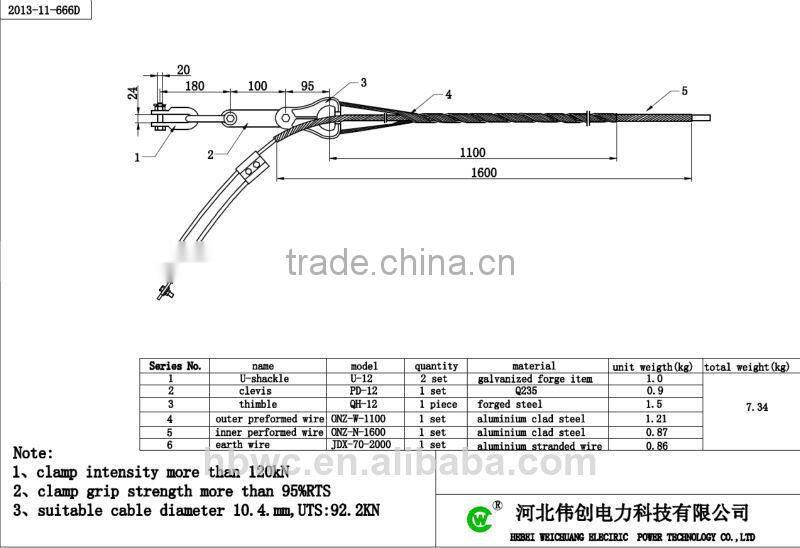

OPGW Tension ClampProduct Composition:

Dead-end componet, thimble clevis, shackle OPGW Tension Clamp

Function and Purpose:

The clamp bears the tensile force. ADSS is connected to strain pole or tower with the clamp

Product Characteristic:

1. The clamp connects with the pole or tower and bears the line load

2.  Cables are finely preotected because stress is equally distributed without intensive stress pivot.

3. The clamp provides gtreat gripping power in the premise no more than the edgewise compressive strength of cable

4. The grip is more than 95% RTS of ADSS and protect cable not be damaged

5. The materials of the rod selected good quality aluminum covered steel wire are against corrosion and improve the mechanical properties.

 OPGW Tension Clamp

Technical Requirements:

Compliant with of DL/T 767-2003: Technical requirements and testing method of helical fittings forADSS

Select Matching Style:

According to the diameter, strength and application span of ADSS

Number of configuration: 2 sets/strain pole or tower

                                        2 sets/connecting pole tower

                                        1 set/terminal pole or tower

Provides the connection type of the first fitting when connection with the pole or tower

Strength class: 15KN

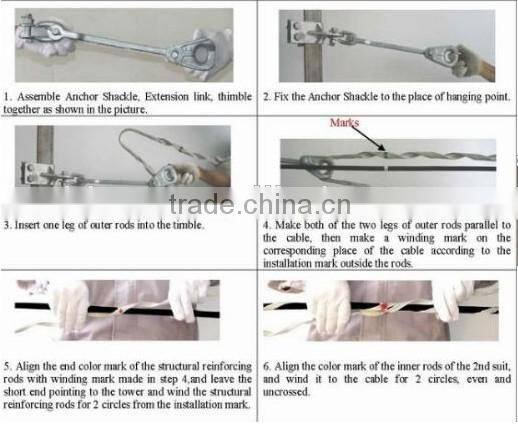

installation step
