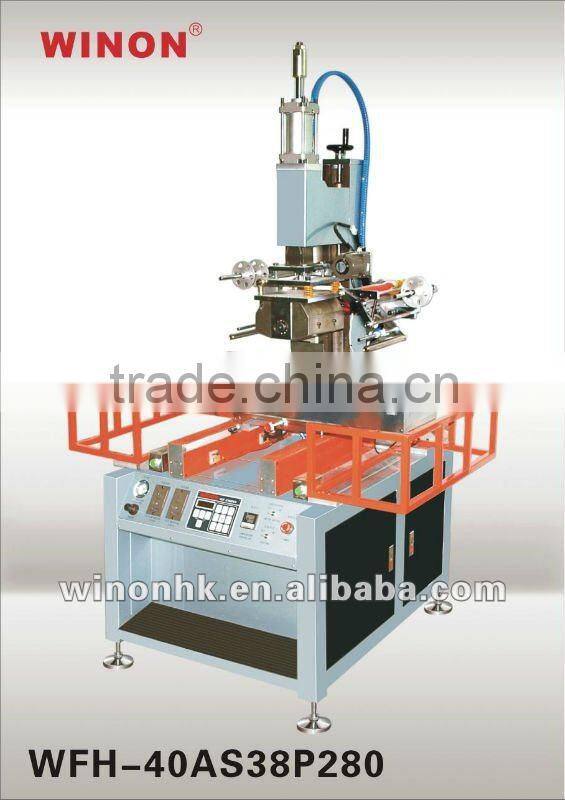

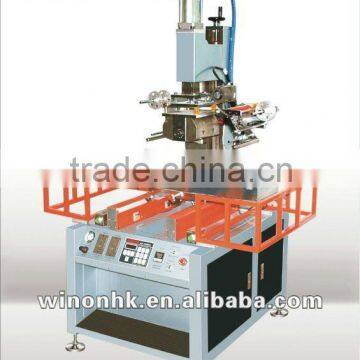

WFH-40AS38P280 WINON High Precision and Efficiency Heat Transfer Machine
Specifications
Applications:Widely applied in the industries of plastics, wood, caps, bottles, pens, panels and labels.
Applications:
Widely applied in the industries of plastics, wood, caps,
bottles, pens, panels and labels.
TECHNICAL SPECIFICATIONS:
| MODEL: | WFH-40AS38P280 |
| STAMPING FORCE: | 400KG |
| SILICONE ROLLER SPEC.: | DIAMETER 100 X 30-150 |
| WORKTABLE: | 480 X 280MM |
| WORKTABLE STROKE: | 380MM |
| WORKTABLE FORTH STROKE: | 280MM |
| STAMPING STROKE: | 70MM |
| CENTRAL DISTANCE: | 240MM |
| WORKPIECE HEIGHT: | 150MM |
| VOLTAGE: | 220V |
| HEATING PIPE POWER: | 250W X 6 |
| DIMENSION (L X W X H): | 1480 X 680 X 1950MM |
| NET WEIGHT: | 400KG |
Features:
1. High Quality Steel;
2. Handy and druable;
3. Micro-computer system control with various delay and stamping force setting;
4. Easy to operate
5. High precision and efficiency
Applications:
1. Suitable for flat, round or curvy surfaces
2. Can be used with various types of foils, calico papers, heat transfer papers.
WOODEN CASE
PLEASE ADVISE IF YOU NEED FUMIGATION
