WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP

WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP thumbnail-1

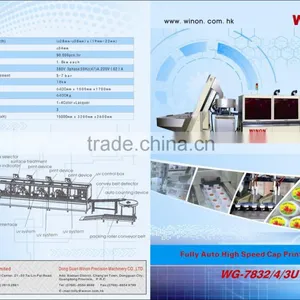

WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP thumbnail-2
WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP thumbnail-3
WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP photo-1
WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP photo-2
WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, OFFSET PRINTER
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Wing Long Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, OFFSET PRINTER
Place of Origin Guangdong, China
Brand Name WINON
Model Number WG-7832-4-3UV
Usage Other, PLASTIC CAP PRINTER
Automatic Grade Automatic
Voltage Two - Four color
Gross Power 380V 3PHASE 50HZ
Dimensions(L*W*H) 15000*3200*2600
Weight 6400
After-sales Service Provided Engineers available to service machinery overseas

Specifications

WG-6232-2-2UV for 2 color
WG-7832-4-3UV for 4 color
Features: High Speed, Auto-feed & Auto-discharge, PLC and Touch Screen.



Product Description

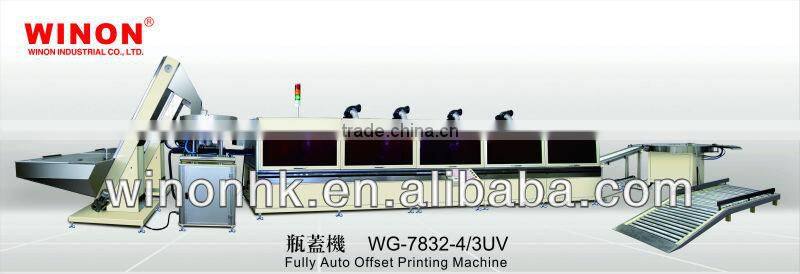

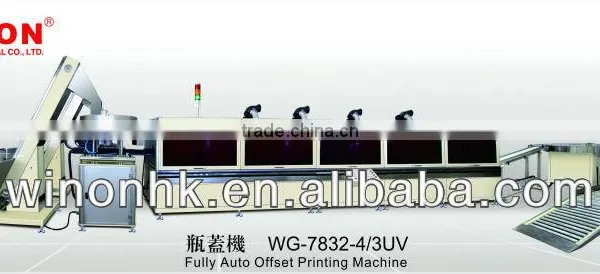

WG-7832-4-3UV Fully-Automated Offset Printer

Features: High Speed, Auto-feed & Auto-discharge,

PLC and Touch Screen.

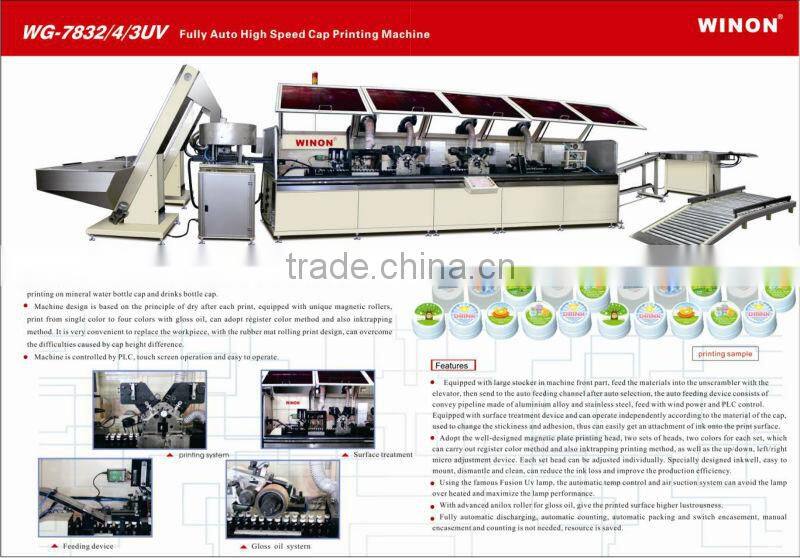

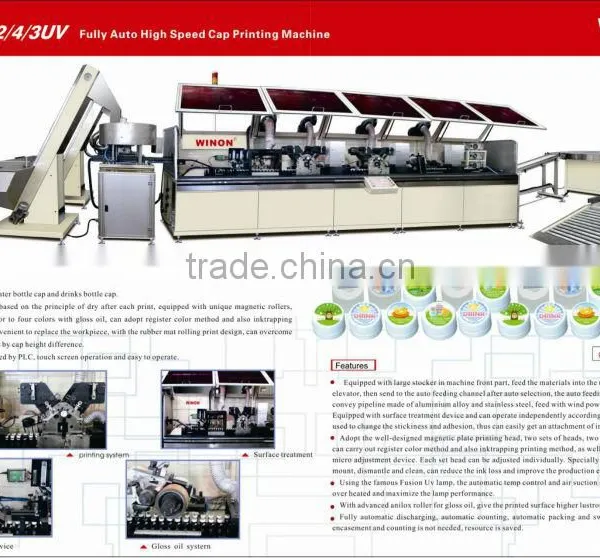

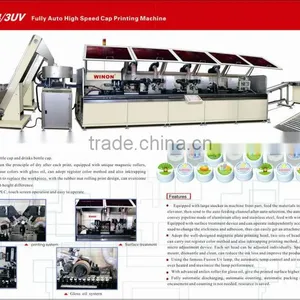

Technical Characteristice:

1. Adopt PLC and touch screen operation, easy for parameters;

2. Fully automatically and standard operation to enhance efficiency;

3. The machine is installed with full automatically systems,

     including a large hooper/ up-lift converyor/ bottle cap opening

     upwards device/ auto-feeding device/ mechnical cap-pressing upon

     fixture/ flame surface treatment/ silica gel rolling printing device

     / UV drying device/ glossy oil surface treatment/ auto-discharging

     device/ inspecting converyor/ auto-quota encasement.

4. The large hooper can be either connected to product line or fed

     with workpieces manually.

5. The machine is applied to print single / double/ three/ four colors,

     as well as installed with glossy oil treatment.

6. Either overprint or superimposing print is achievable.

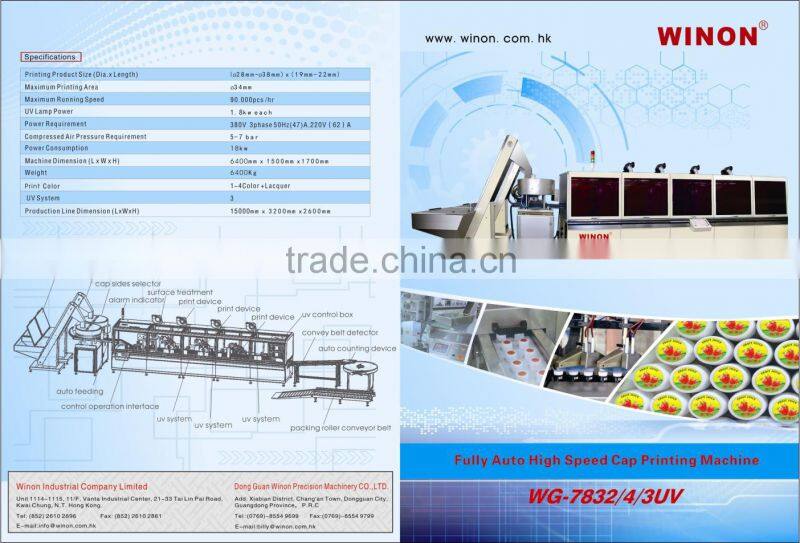

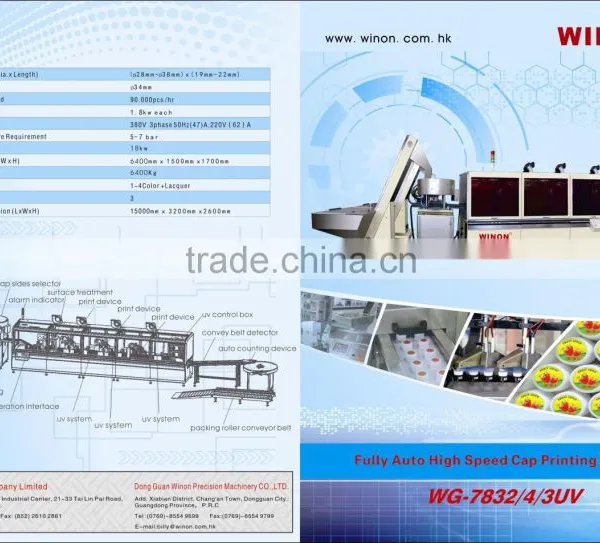

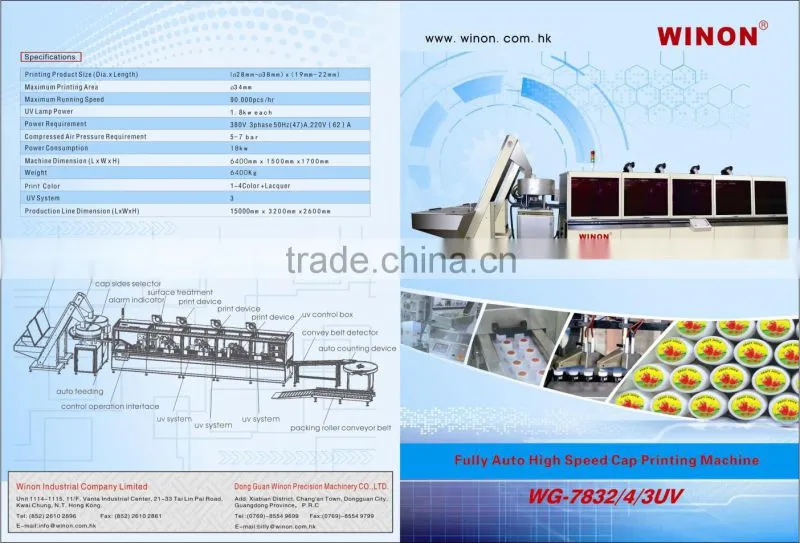

TECHNICAL SPECIFICATIONS:
Model: WG-7832-4-3UV
Printing Color: Two - Four color
Printing area (mm): Standard for 32mm and Max. 34mm(Diameter)
Printing Speed (hr): 90,000 PCS/HOUR
Printing Product Size (mm): Bottle cap diameter 28-38mm, H 19-22mm
Precision:
Power Supply: 380V 3PHASE 50HZ
Voltage: 18KW
Air Supply: 5-7 bar
Auotmatic Grade: FULLY AUTOMATIC
CONTROL PANEL TOUCHSCREEN
Machine Dimension (mm): 15000*3200*2600
Machine Net Weight (kg): 6400
Dimension of Wooden Case (mm):
Gross Weight of Wooden Case (kg):



WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAPWG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP



Packaging & Shipping

WOODEN CASE

PLEASE ADVISE IF YOU NEED FUMIGATION

WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAPWG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP





Company Information

Please scan with following QR code for know more about WINON !!

WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP  WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP WG-7832-4-3UV WINON FULLY AUTOMATIC HIGH SPEED OFFSET PRINTING MACHINE FOR PLASTIC CAP
