Help Center3D Grid (3D Geomat)
Related Products
Specifications
1)3D grid2)Polyethylene (PE)
3)Tensile strength:0.8 ~ 3.5kn/m
4)220-480g/m2
5)thickness:10~20mm

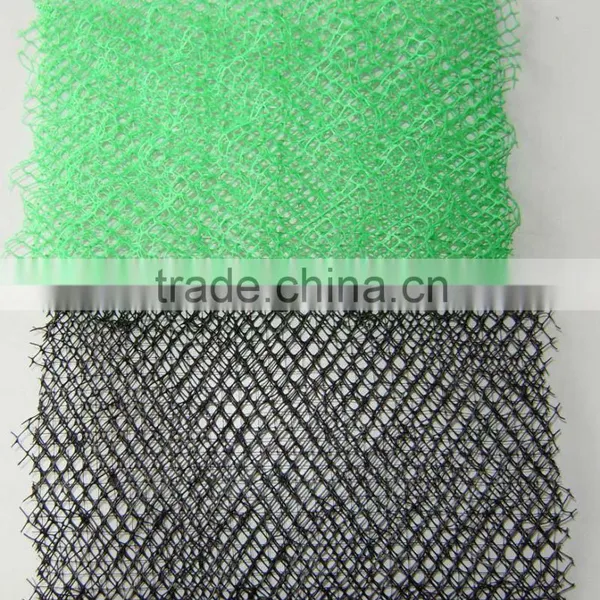

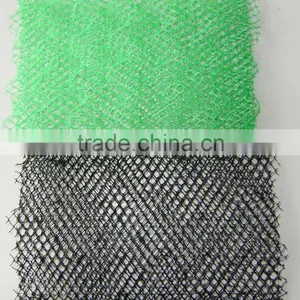

3D grid (Erosion control mat) Characteristics:
It is a kind of 3D structural geosynthetic , which is applied to keep the water and land, increase the greening area, and improve the environment.
Function:
1.Before the greensward grows, it prevents the surface of the land from the erosion of the wind and rain.
2 .Form compound protection layer with the vegetable, standing the wash-out of the high water level and large speed current.
3.Replace the concrete, asphalt, and block, using in the slope surface protection of roadway, railway, river-way, dyke, and the hillside, etc.
Specification of the erosion control mat (3D Geomat)
Item Spec |
EM2 |
EM3 |
EM4 |
EM5 |
Weight per sq.m. ≥(g/m2) |
220 |
260 |
350 |
430 |
Thickness ≥(mm) |
10 |
12 |
14 |
16 |
Width≥(m) |
2 |
|||
Length ≥(m) |
30 |
|||
Vertical tensile strength ≥(KN/m) |
0.8 |
1.4 |
2.0 |
3.2 |
Horizontal tensile strength ≥(KN/m) |
0.8 |
1.4 |
2.0 |
3.2 |
Remark |
The special spec or size can be manufactured according to the demands of the contract |
|||
