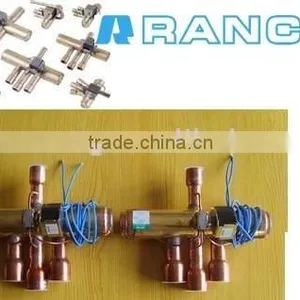

RANCO Heat Pump 4 Way Reversing Valve
US$ 10 - 20
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Other, Air Conditioner Parts, chiller
Application:
Industrial
Certification:
Other, UL,CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Other, Air Conditioner Parts, chiller
Application
Industrial
Certification
Other, UL,CE
Place of Origin
Shanghai, China
Brand Name
RANCO
Model Number
VH2,VH9,VH4,VH6,VH5,VH1
we are selling RANCO 4 way reversing valve with competitive price and please see the follwing types:
Valve Specifications
| Minimum/Maximum Delta P to reverse | 15/440 psi (V12 - 15/400 psi) |
| Maximum normal working pressure | 680 psi (V12 - 500 psi) |
| Maximum abnormal pressure (fatigue) | 833 psi (V1 - V10 only) |
| Minimum burst pressure | 2500 psi |
| Maximum operating temperature | 250° F |
| Maximum brazing temperature1 | 250° F |
| Maximum sound level2 | 50dB |
| Maximum external leakage3 | 0.1 ounce per year |
Known compatible refrigerants |
R12, R22, R134a, R500, R502, R410a, R407c, R404a |
| Minimum life | 165,000 cycles |
| Mounting position | Any |
2 A-scale, 0.0002 Dyne/cm2 reference, 12" from valve, 40 dB or less background.
3 Leakage measured at 400 psig internal pressure.
Valve Selection Guide
Valve Selection Guide
| Valve Type | Capacity, Tons Minimum to Nominal R22 | Internal Leakage, cc/min | Tube Style | Standard Connections Tube Sizes Female I.D., Inches | |
| Discharge | Suction,L,R | ||||
| V1 | 0.4 to 1 | 400 to 2000 | A, B | 1/4", 5/16", 3/8", | 3/8", 1/2" |
| V2 | 0.75 to 2 | 400 to 2000 | A, B | 1/4", 5/16", 3/8", | 3/8", 1/2" |
| V2 | 1 to 2.5 | 400 to 2000 | C, D | 3/8", 1/2" | 5/8" |
| V3 | 1 to 2.8 (3 on 3/4) | 500 to 2000 | E | 3/8", 1/2" | 5/8", 3/4" |
| V4 | 1 to 4 | 500 to 4000 | A | 1/2", 5/8", 3/4" | 3/4", 7/8" |
| V6 | 1/ 5.5 | 500 to 4000 | A | 3/8", 1/2", 5/8", 3/4" | 3/4", 7/8" |
| V10 | 3 to 8.5 (9.5 on 1/8) | 800 to 6000 | A | 1/2", 5/8", 3/4", 7/8" | 7/8", 1 1/8" |
| V12 | 5 to 12 | 1500 to 15000 | F | 1 1/8" | 1 3/8" |
