Specifications
power fitting/power accessories/power hardware fittinghigh strength and well durable
Professional manufacturer
Thank you for you to pay attention to my product ,If you want to know more about ,pls see under ; If you have any requires ,pls without hesitate contact me
power fitting/power accessories/power hardware

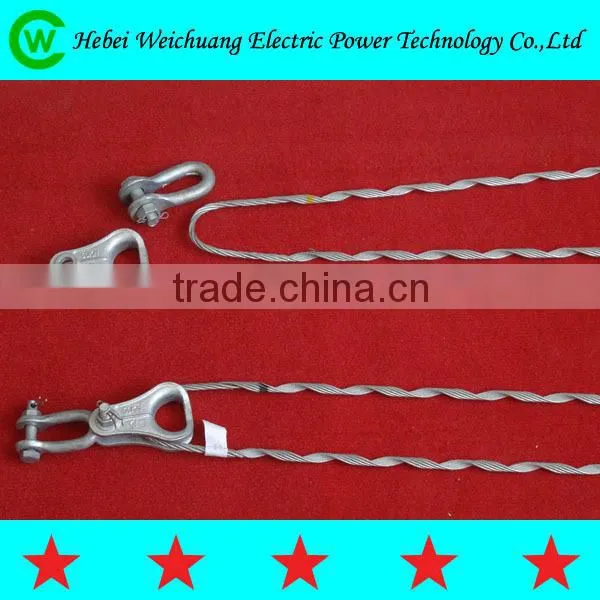

The product is used to connect OPGW cable and tower in the optic fiber cable erection, the ground wire can
protect the OPGW cable and improve the antivibration.
The special design of the ground wire can guarantee that the preformed tension clamp will not lead to the stress concentration, which does damage to the OPGW cable, so that, ensure the normal life of the cable system.
material&strcture
Shackle:Hot galvanized steel shackles play a role in connection with the tower fasteners. Failure load: U-7 to 70kN, U-10 to 100kN, U-12 to 120kN.
Thimble:Hot dip galvanized steel precision thimble, in the U-shape bending head, which can make tension clamp connect with exstrain rod.

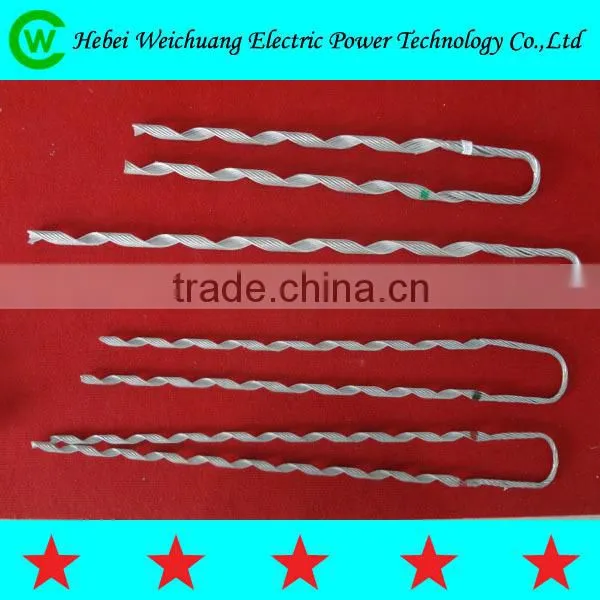

Preformed tension rods:Be made of galvanized steel wire or aluminum clad steel and preformed into the process when prefabricated beam, inner wall layer of emery stick, and enhance the friction between clamp and cable.

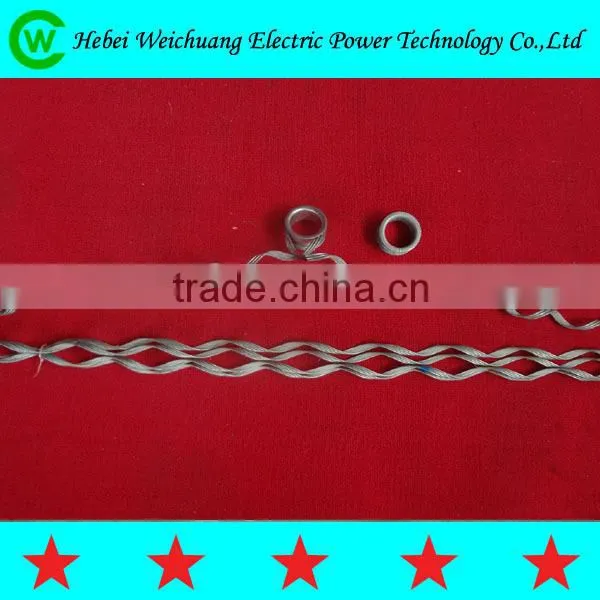

Preformed armour rods:Galvanized steel or aluminum clad steel wire, preformed armour rods wall sticky particulate silicon carbide to increase friction and reduce the pressure on the cable side. preformed rods when the pre-processing into several sub-beams, to avoid installation errors and to facilitate rapid installation. Preformed wire toward the end of different specifications according to the radial lateral bending, to avoid vibration in the breeze under the cable clamp at the end of the friction and prevent damage to cable extrusion.
