Sanrong Brass Compressor Service Valve, Refrigerant Compressor Valve
US$ 15 - 50
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Shutoff
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sanrong Brass Compressor Valve, Cast Iron Compressor ValveUS$ 15 - 50MOQ: 100 Pieces -
Sanrong Cast Iron / Brass Compressor ValveUS$ 15 - 50MOQ: 100 Pieces
-
Sanrong Cast Iron Compressor ValveUS$ 15 - 50MOQ: 100 Pieces
-
SEH-50 Electronic Expansion Valve for Heat Pump, ETS 50 50B Bi-Flow Electric Expansion Valve R410A for 30RB 30RQ Carrier ChillerUS$ 150 - 300MOQ: 4 Pieces
-
Bi-Flow Valve Expansion, Stepper Motor Driven Electronic Expansion Valve, Emerson EX Electrical Control Valve for RefrigerationUS$ 150 - 300MOQ: 4 Pieces
Standard or Nonstandard
Standard
Structure
Shutoff
Pressure
Medium Pressure
Power
Manual
Material
Forged
Temperature of Media
Medium Temperature
Media
Other, Refrigerant
Port Size
28.8 x 49
Place of Origin
Zhejiang, China
Model Number
CPA, CPB
Brand Name
Sanrong
Application
General

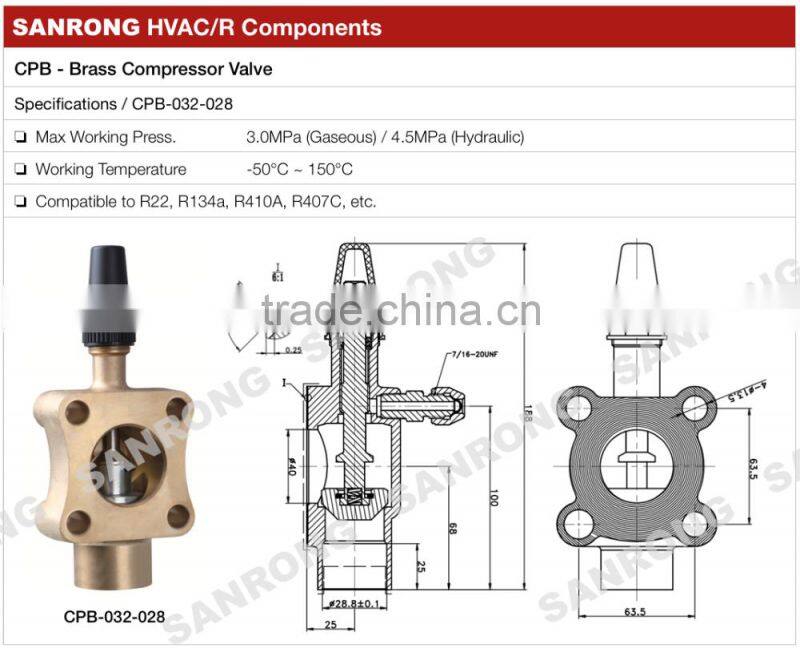

CPB - Brass Compressor Valve
CPA - Cast Iron Compressor Valve
SPECIFICATIONS
- Maximum working pressure (PS): 700 psig, 48 bar
- Working temperature range (TS): -40°F/300°F, -40°C/149°C
- Compatible with all CFC, HCFC and HFC refrigerants and oils
- 100% tested
- Asbestos-free valve packing
- Valve openings designed for maximum flow and minimum pressure drop
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
CPA-032-035 |
252.5 |
64x64 |
110.5 |
13.5 |
47 |
35 |
54 |
70 |
68 |
CPA-032-038 |
38 |
50 |
62 |
||||||
CPA-032-042 |
42 |
54 |
70 |
||||||
CPA-050-042 |
290 |
78x78 |
121 |
17.2 |
61 |
42 |
60 |
74 |
86 |
CPA-050-054 |
54 |
64 |
82 |
||||||
CPA-050-067 |
67 |
||||||||
CPA-070-067 |
318 |
99x99 |
149 |
19.0 |
77 |
67 |
85 |
105.5 |
116 |
CPA-070-076 |
76 |
||||||||
CPA-070-080 |
80 |
||||||||
CPA-100-100 |
415 |
122x122 |
203.5 |
20.0 |
93 |
100 |
111 |
130 |
142 |
CPA-100-105 |
105 |
||||||||
CPA-100-125 |
125 |
