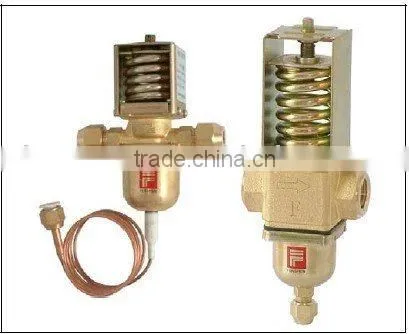

Temperature actuated water valve

Specifications

TWV series temperature controlled water valves can be used in refrigeration, machinery, washing and chemicals, etc.

TWV series temperature controlled water valves are usually installed on the inlet of condenser.
TWV series temperature controlled water valves can be used in refrigeration, machinery, washing and chemicals, etc.
TWV series temperature controlled water valve takes outlet temperature of cooling water as signal. Its thermal bulb is inserted into outlet pipe. When the temperature rises, the valve is opened; the temperature reduces, the valve turns down.
Type data

Model	Adjusting range (oC)	Max. Bulb temp. (oC)	Setting opening temp. (oC)	Bulb dimension (mm)	Media	Max. Media temp. (oC)	Max. working pressure (MPa)
TWV30B	0→30	50	10	Φ16×150	Fresh water	60	1
TWV65B	25→65	80	40
TWV90B	50→90	120	60

Connection

Model	Connection	Kv value (m3/h)
			TWV30B,TWV65B,TWV90B	3/8" flare	0.8
TWV30B,TWV65B,TWV90B	G1/2	2.5
TWV30B,TWV65B,TWV90B	G3/4	3.2
TWV30B,TWV65B,TWV90B	G1	5.0
