Home > Industrial Equipment & Components > Heater & Heat Exchanger > Heat Exchanger > Refrigeration SRW Oil Separators
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SANRONG
Model Number:
SRW-5205
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SANRONG Oil Separators for RefrigerationNegotiableMOQ: 50 Pieces -
Oil Separator for Refrigeration SystemNegotiableMOQ: 50 Pieces
-
Oil Separator for Refrigeration SystemNegotiableMOQ: 50 Pieces
-
Oil Separators for Refrigeration SystemNegotiableMOQ: 50 Pieces
-
Refrigeration SR Liquid ReceiverNegotiableMOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
SANRONG
Model Number
SRW-5205
Type
Other, Oil separator
Application
Refrigeration Parts
Certification
Other, ISO9001:2000
Specifications
1.SRW oil separator selling to Dunhum-Bush,Haier,Midea and so on2.Hermetic welded construction with steel oil return system
SRW oil separator:
Refrigerant: R22/R134a/R404A/R407C/R502/R507
Medium temperature: -40 to +120
Max working Pressure:3100Kpa.
Destructive testing reached 17.5 to 19Mpa.
The thickness of paint film: 50 to 80 micron.
Oil Storage Capacity: 55824-559011/ 5201-5205 600ml
569011-569417 /6203-6205 800ml

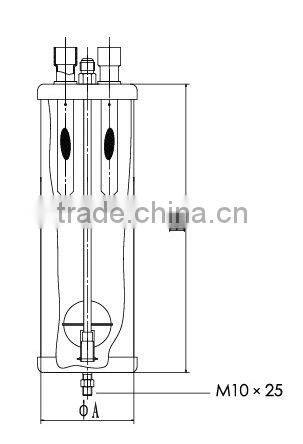

| TYPE | ODF Connections only(in) | SAE Oil Connection(SAE Flare) | Dimensions | ||
| in | mm | A(in) | B(in) | ||
| SRW-5201 | 1/2 | 12.8 | 1/4" or 3/8" | 4.00 | 10.75 |
| SRW-5202 | 5/8 | 16.0 | 1/4" or 3/8" | 4.00 | 14.25 |
| SRW-5203 | 7/8 | 22.4 | 1/4" or 3/8" | 4.00 | 17.75 |
| SRW-5204 | 1-1/8 | 28.8 | 1/4" or 3/8" | 4.00 | 21.00 |
| SRW-5205 | 1-3/8 | 35.0 | 1/4" or 3/8" | 4.00 | 21.25 |
| SRW-6203 | 1-3/8 | 35.0 | 1/4" or 3/8" | 6.00 | 15.75 |
| SRW-6204 | 1-5/8 | 42.0 | 1/4" or 3/8" | 6.00 | 19.00 |
| SRW-6205 | 2-1/8 | 54.0 | 1/4" or 3/8" | 6.00 | 19.95 |

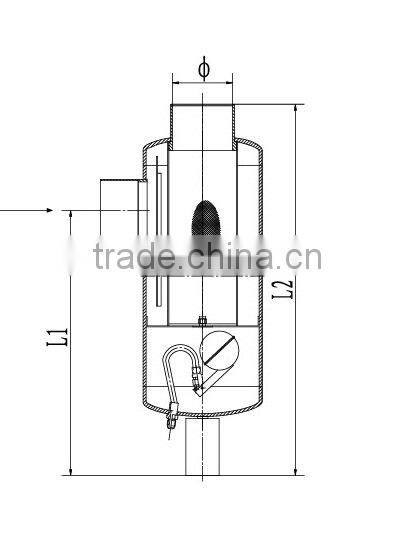

| TYPE | Max.Working Pressure (MPa) | Connections(in) | SAEOil Connection(SAE Flare) | Diameter(in) | L1(in) | L2(in) | Oil Charge Amount | |
| OZ | ml | |||||||
| SRW-606 | 4.5 | 1-5/8"ODF | 3/8" | 6" | 13-1/2 | 18-3/8 | 29 | 850 |
| SRW-607 | 4.5 | 2-1/8"ODF | 3/8" | 6" | 14-1/2 | 19-3/8 | 29 | 850 |
| SRW-608 | 4.5 | 2-5/8"ODF | 3/8" | 6" | 14-1/2 | 19-3/8 | 29 | 850 |
| SRW-609 | 4.5 | 3-1/8"ODF | 3/8" | 6" | 14-1/2 | 19-3/8 | 29 | 850 |
