Help CenterJBL/JBT/JB-TL Series Parallel Groove Clamp for Cable
Related Products
-
Hot Selling High Quality Aluminium Parallel Groove Clamp PG 3 Bolts for AL Cable ConductorUS$ 0.89 - 5.99MOQ: 1000 Sets -
Parallel Groove Clamp for Overhead Line FittingsUS$ 0.89 - 5.99MOQ: 1000 Sets
-
Galvanized Parallel Groove Clamp for Overhead Line FittingsUS$ 0.67 - 5.68MOQ: 500 Sets
-
Copper-aluminium JB Parallel Groove ClampUS$ 0.5 - 5.6MOQ: 500 Sets
-
Electrical Line Fitting/ Power Line Hardware Galvanized Steel Parallel Groove ClampUS$ 1 - 3MOQ: 1000 Sets
Specifications
parallel groove clamp1.Technic: Hot-dip Galvanized
2.Certification:ISO9001
3.Professional manufacture
4.Best price

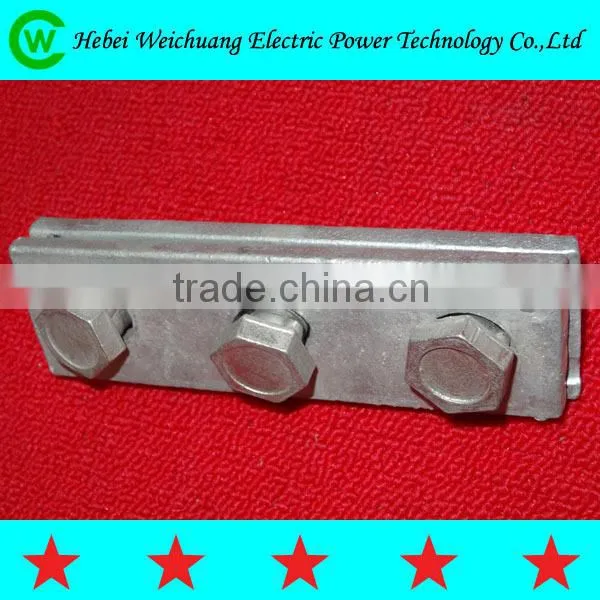

JBL/JBT/JB-TL series parallel groove clamp for cable
We can choose the right type according to customer's technical data,and also design as per technical drawings .
Material:Body:High strength,corrosion-resistant,aluminium 99.5
Bolts:DIN933,steel8.8.Dacroment.Nut:DIN93.4,ed into lower part.
Pressure Pad:aluminium alloy Spring washers:DIN127,steel
Concial Washer(according to order):DIN6796,corrosion-protected
Stainless steel A 2bolts and nuts avaiabale according to order:
Recommended Torque momnets:M8:23NmM10:46Nm
CAPG is used for tapping or jointing copper conductor to aluminum overhead conductors AAC, AAAC, or ACSR. Forging creates a high strength clamp. slotted holes allow adjustment for varying conductors to each side. Tap off conductor groove is lined with hot compressed copper sheet on both upper and lower parts. Contact area between copper and aluminum is sealed with epoxy resin. threaded bottom part of connector can provide easy installation. its tpe test is in accordance with IEC .
Usually we pack goods by box, wooden cases or according to client’s requirements to adjust. We will be responsible for packing the stores suitable for transit by sea/ rail/ road so as to ensure their
being free from loss. Usually we export the product on Tianjin Port . We will do our best to meet the client's requirements.
1. We are specialized in manufacturing overhead power line fittings.
2. Rich manufacture experience.
3. Certificates: ISO9001.
4. High quality with competitive price.
5. Domestic and Overseas markets.
6. Well equipped with complete facilities.
7. Strict quality control and excellent after-sales service.
8. In addition to supplying varieties of types and specifications to our customers, we also
accept customized product. According to the detailed drawings,our well-trained serve staff and professional engineers will get back to you according to your requirement.
Hebei Weichuang Electric Power Technology Co., Ltd. is located in Ma Jiawu Industrial District, Flextronics Renqiu City, Hebei Province. We are near Beijing and Tianjin, with 150km away from the national highway. The traffic is very convenient. Our company was founded in 2002, and is specialized in the production and operation of cable fittings, electrical fittings, overhead line pieces of iron and steel wire products.Our company strictly implements ISO9001:2008 international quality system certification and ISO14001 environment system certification standards. With first-class scientific and technological capabilities, we improve the service support system in the industry and establish a good reputation among clients.Our export volume is doubling every year. Our products are exported to Russia, Africa, the Middle East, Australia, North and South America and other international markets. We will make more energetic efforts to create values for customers and take it as our social responsibility. We are willing to work with new and old customers hand in hand for a better future.
We promise
Honesty is our faith. We take our heart to deal with every order hoping that we can set up a long-term business relationship with you. We promise that we will provide you with products of high quality.
How's the delivery time ?
Usually it will take about 15 days for the order of 100,000pcs for production
Tell me the standard of package?
For inner box and master carton are made as per international standards,and we can make special design for you if need.
Also if necessary, will be packed in pallet to avoid any damage.
