Carrier 06DR241 Refrigeration Compressor, Carlyle 06DR Semi-Hermetic Reciprocating Compressor
US$ 1,000 - 10,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Carlyle
Model Number:
06DR241
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
06NW2300S5EC Carlyle Screw Compressor for Carrier 30HXC 30HXY R134a ChillerUS$ 7,500 - 15,000MOQ: 1 Piece -
06NW2250W7EC Carlyle GTS104 Geared Twin Screw Compressor for Carrier 30HXC 30HXY R134a Water-Cooled ChillerUS$ 7,500 - 15,000MOQ: 1 Piece
-
06NW2250S7EC Carrier Screw Compressor, Carlyle Screw Refrigeration Compressor for R134a 30HXY Water-Cooled Chiller Quality ChoiceUS$ 7,500 - 15,000MOQ: 1 Piece
-
06NW2250S7NC Carlyle R134a Water-Cooled Geared Twin Screw Compressor for Carrier 30HXC ChillerUS$ 7,500 - 15,000MOQ: 1 Piece
-
06NW2123S6NC Carlyle 06NW Water-Cooled Screw Compressor for Carrier 30HXY ChillerUS$ 7,500 - 15,000MOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
Carlyle
Model Number
06DR241
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
UL
New 06DR241 Carrier Carlyle Refrigeration Compressor
06DR Semi-Hermetic Reciprocating Compressor for Refrigerator, Freezer
PRODUCT DESCRIOTION
Carlyle 06D/E semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cooling, and environmental chambers. They are extremely flexible and may be used with many of the new HFC refrigerants such as R-507, R-404A, R-407C and R-134a, in addition to the conventional refrigerants (R-12, R-22, and R-502). The compressors may be operated at 50 or 60 hertz and are UL, CE, CSA, and ISO 9002 approved. Many of the prominent features of the 06D/E compressors are listed below.
FEATURES
High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
Crankcase venting system equalizes pressure during startup and assures oil return to sump.
Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
High-efficiency valves provide increased refrigerant flow and lower pressure drops.
Electronic oil-pressure switch.
SPECIFICATIONS
| MODEL | HP | CFM @ 1750 RPM | SUCTION TEMPERATURE RANGE (DEGREES F) | CYL NO | BORES (INCHES) | STROKE (INCHES) | OIL CHARGE (PINTS) | |||||
| R502/R404A/R507 | R12/R134a | R22 | ||||||||||
| MIN | MAX | MIN | MAX | MIN | MAX | |||||||
| 06DR109 | 2.0 | 8.7 | -40 | 0 | -10 | 55 | -35 | 0 | 2 | 2.00 | 1-3/8 | 3.00 |
| 06DM808 | 3.0 | 8.0 | 0 | 50 | – | – | 0 | 55 | 2 | 2.00 | 1-1/4 | 3.00 |
| 06DR013 | 3.0 | 13.1 | -40 | 0 | -10 | 55 | -35 | 0 | 4 | 2.00 | 1 | 4.50 |
| 06DM313 | 5.0 | 13.1 | 0 | 50 | – | – | 0 | 55 | 4 | 2.00 | 1 | 4.50 |
| 06DR316 | 5.0 | 15.9 | -40 | 25 | -10 | 55 | -35 | 25 | 4 | 2.00 | 1-1/4 | 4.50 |
| 06DM316 | 5.0 | 15.9 | 0 | 25 | – | – | 0 | 45 | 4 | 2.00 | 1-1/4 | 4.50 |
| 06DR718 | 5.0 | 18.3 | -40 | 0 | -10 | 55 | -35 | 0 | 4 | 2.00 | 1-7/16 | 5.50 |
| 06DA818 | 6.5 | 18.3 | 0 | 50 | – | – | 0 | 55 | 4 | 2.00 | 1-7/16 | 5.50 |
| 06DR820 | 6.5 | 20.0 | -40 | 40 | -10 | 55 | -35 | 45 | 4 | 2.00 | 1-9/16 | 5.50 |
| 06DR724 | 6.5 | 23.9 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-1/4 | 8.00 |
| 06DR725 | 6.5 | 23.9 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-1/4 | 8.00 |
| 06DA825 | 7.5 | 23.9 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-1/4 | 8.00 |
| 06DA824 | 7.5 | 23.9 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-1/4 | 8.00 |
| 06DR228 | 7.5 | 28.0 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-15/32 | 8.00 |
| 06DA328 | 10.0 | 28.0 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-15/32 | 8.00 |
| 06DR337 | 10.0 | 37.1 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2.00 | 1-15/16 | 8.00 |
| 06DM337 | 10.0 | 37.1 | 0 | 25 | – | – | 0 | 45 | 6 | 2.00 | 1-15/16 | 8.00 |
| 06DA537 | 15.0 | 37.1 | 0 | 50 | – | – | 0 | 55 | 6 | 2.00 | 1-15/16 | 8.00 |
| 06DR541 | 15.0 | 41.0 | -40 | 25 | -10 | 55 | -35 | 25 | 6 | 2.00 | 2.15 | 8.00 |
| 06ER450 | 15.0 | 50.3 | -40 | 0 | – | – | -35 | 0 | 4 | 2-11/16 | 2-3/16 | 14.00 |
| 06EM450 | 15.0 | 50.3 | 0 | 25 | -10 | 55 | 0 | 45 | 4 | 2-11/16 | 2-3/16 | 14.00 |
| 06EA550 | 20.0 | 50.3 | 0 | 50 | – | – | 0 | 50 | 4 | 2-11/16 | 2-3/16 | 14.00 |
| 06ER465 | 20.0 | 68.3 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 1-63/64 | 19.00 |
| 06EA565 | 25.0 | 68.3 | 0 | 50 | -10 | 55 | 0 | 50 | 6 | 2-11/16 | 1-63/64 | 19.00 |
| 06ER475 | 20.0 | 75.4 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 2-3/16 | 19.00 |
| 06EM475 | 25.0 | 75.4 | 0 | 40 | -10 | 55 | 0 | 45 | 6 | 2-11/16 | 2-3/16 | 19.00 |
| 06EA575 | 30.0 | 75.4 | 0 | 50 | – | – | 0 | 50 | 6 | 2-11/16 | 2-3/16 | 19.00 |
| 06ER399 | 30.0 | 99.0 | -40 | 0 | – | – | -35 | 0 | 6 | 2-11/16 | 2-7/8 | 19.00 |
| 06EM499 | 35.0 | 99.0 | 0 | 40 | -10 | 55 | 0 | 45 | 6 | 2-11/16 | 2-7/8 | 19.00 |
| 06EA599 | 40.0 | 99.0 | 0 | 50 | – | – | 0 | 50 | 6 | 2-11/16 | 2-7/8 | 19.00 |

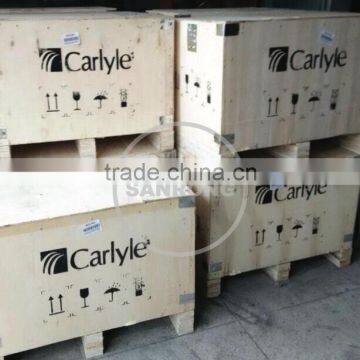

PACKAGING & SHIPPING
OTHER INFORMATION
06D REGULAR MODELS
| R22 | R404A |
| 06DR1090GC3600 | 06DR1090GC3660 |
| 06DR0130CC3600 | 06DR0130CC3660 |
| 06DR3160CC3600 | 06DR3160CC3660 |
| 06DR7180DC3600 | 06DR7180DC3660 |
| 06DR8200DC3600 | 06DR8200DC3660 |
| 06DR7250DC0600 | 06DR7250DC0660 |
| 06DR2280DC0600 | 06DR2280DC0660 |
| 06DR3370DC0600 | 06DR3370DC0660 |
| 06DR5410DC0600 | 06DR5410DC0660 |
| 06DM8080GC3600 | 06DM8080GC3660 |
| 06DM3130CC3600 | 06DM3130CC3660 |
| 06DM3160CC3600 | 06DM3160CC3660 |
| 06DM3370DC3600 | 06DM3370DC3660 |
| 06DA8182AC3600 | 06DA8182AC3660 |
| 06DA8252DC0600 | 06DA8252DC0660 |
| 06DA3282DC0600 | 06DA3282DC0660 |
| 06DA5372DC0600 | 06DA5372DC0660 |
| 06DR0130CC3640 | 06DR0130CC3690 |
| 06DR3160CC3640 | 06DR3160CC3690 |
| 06DR7180DC3640 | 06DR7180DC3690 |
| 06DR8200DC3640 | 06DR8200DC3690 |
| 06DR7250DC0640 | 06DR7250DC0690 |
| 06DR2280DC0640 | 06DR2280DC0690 |
| 06DR3370DC0640 | 06DR3370DC0690 |
| 06DR5410DC0640 | 06DR5410DC0690 |
| 06DM3130CC3640 | 06DM3130CC3690 |
| 06DM3160CC3640 | 06DM3160CC3690 |
| 06DM3370DC3640 | 06DM3370DC3690 |
| 06DF8182AC3600 | 06DF8182AC3660 |
| 06DF8252DC0600 | 06DF8252DC0660 |
| 06DF3282DC0600 | 06DF3282DC0660 |
| 06DF5372DC0600 | 06DF5372DC0660 |
| 06DR7250DC06A0 | 06DR7250DC06B0 |
| 06DR2280DC06A0 | 06DR2280DC06B0 |
| 06DR3370DC06A0 | 06DR3370DC06B0 |
| 06DR5410DC06A0 | 06DR5410DC06B0 |
| 06DM3370DC36A0 | 06DM3370DC36B0 |
| 06DG8252DC0600 | 06DG8252DC0660 |
| 06DG3282DC0600 | 06DG3282DC0660 |
| 06DG5372DC0600 | 06DG5372DC0660 |
