Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > TNC to SMA Apto

TNC to SMA Apto

Name: TNC to SMA Apto
Brand: Jingchengnuo
SKU: 115396953
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Jingchengnuo

Model Number:

TNC/SMA-50KK

Contact Supplier Request Quote Chat Now

Yangzhou Jingcheng Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Jingchengnuo

Model Number TNC/SMA-50KK

Type Adapter

Application RF

Gender Other, female to female

Specifications

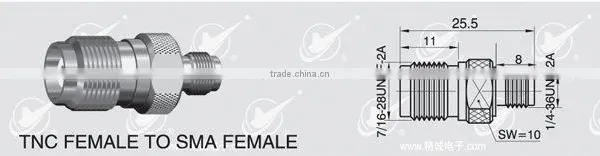

1.Type:TNC to SMA
2.Female to female,50 ohm
3.Body:brass/nickel plated
4.Socket:berylllium-copper/gold/silver plated

SPECIFICATION

Adaptor is the basic product that used in the connection between the instrument cables with different interface.These are two kinds of them:within-type adaptor and inter-type adaptor.It has the same technical special characteristic with same class product.Within-type adaptor is listed in the catalogue of that product.Our company designs and produces various adaptors with all kinds of specification.They have wide frequency range and low VSWR characteristics.Welcome to visit and choose.

MAJOR TECHNICAL CHARACTERISTICS

Temperature Range	-55~+155°C
Vibration	150m/s²(10-2000Hz)15g
Impedance	50Ω
Frequency Range	DC~11GHz
Working Voltage	500V r.m.s at sea level
Withstanding Voltage	1500V r.m.s at sea level
Contact resistance	Center Contact ≤10mΩ Outer Contact ≤2.5mΩ
Insulation resistance	≥5000MΩ
Center conductor retention force	≥0.57N
Insertion Loss	≤0.20dB
Voltage Standing Wave Ratio	Straight ≤1.22/3GHz Right angle ≤1.30/3GHz
Durability(mating)	≥500times(cycles)
