Description
This plug is specially for many types of mobile telephone such as Nokia, Motorola, Philip, Samsung etc. As a kind of connecting the piecing with the antenna amplifier device, it has played an important role in improving conversation quality, especially on the condition that the indoor conversation signal is bad. These special plugs have characteristics of light nimble, reliable connect, stable performance, various varieties.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Technical Characteristics
Temperature Range |
-55~+155°C |
|
Impedance |
50Ω |
|
Frequency Range |
DC-3GHz |
|
Withstanding Voltage |
500V r.m.s at sea level |
|
Working Voltage |
170Vr.m.s at sea level |
|
Insulation Resistance |
>= 1000 MΩ |
|
Durability |
>= 500(cycles) |
|
Contact resistance: |
Center Contact <=3mΩ |
|
Outer Contact <=2mΩ | ||
Voltage Standing Wave Ratio: |
Straight |
<= 1.15/1GHz |
Right angle |
<= 1.25/1GHz |
|
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Us
Our company occupies 13500 m field, where the building area is 12000 m. There are more than 300 employees, 15 % of them are engineers and technicians. We are professional in designing, developing, producing and sales of radio frequency coaxial connectors.
According to the national and professional standards(GB&JS), we produce all kinds of RF coaxial connector:
SMA, SMB, SMC, BNC, TNC, N, 7/16(L29), 1.6/5.6(L9),MCX, MMCX, SSMA, SSMB, SSMC, SMZ, MC CARD(C2), 1.0/2.3(CC4), FME, UHF, MINI UHF, F, RCA, TAC etc.
And assembly of antenna, cable-package, audio and video connector, big specification connector of feeder line.
All kinds of adapter, impedance converter, fixed attenuator, termination loading, arrester.
All kinds of RF coaxial cable—SYV, SFF, RG, semi-rigid, etc.
This is our website:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------

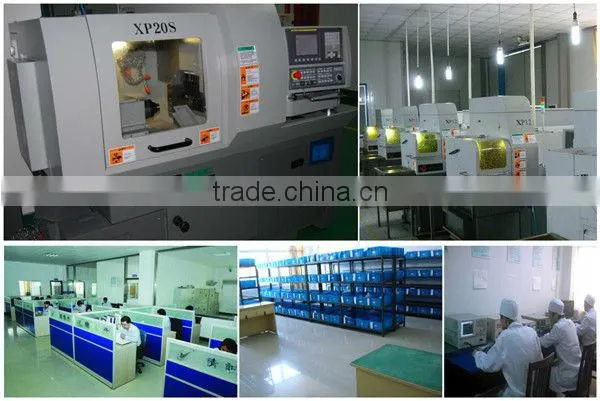

Workplace and professinal team
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Company Glories
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Contact Us
If you are interesting in any of our products, please feel free to contact with me.
Quotation and pictures will be sent to your email within 24 hours after receive your specific enquires.
