Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > N Female to Female ,jack to Jack ,gas Tube Arrester,surge Protector,cable Surge Protector,surge Voltage Protector

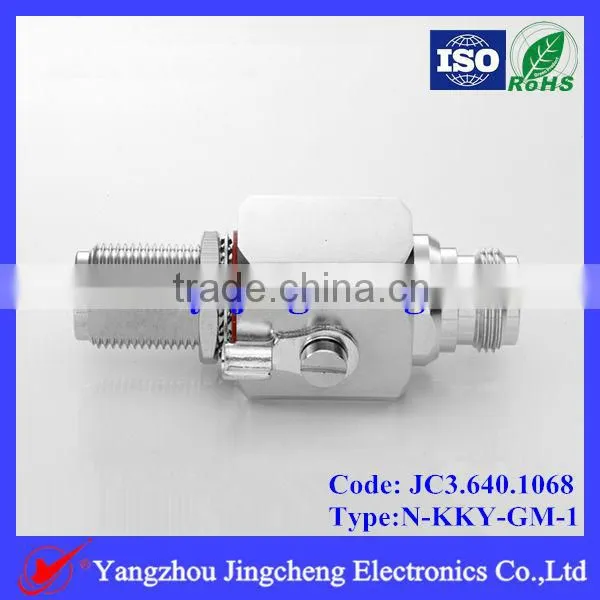

N Female to Female ,jack to Jack ,gas Tube Arrester,surge Protector,cable Surge Protector,surge Voltage Protector
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jingchengnuo
Model Number:
N-KKY-G-M-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
N Female to Female With Bracket ,jack to Jack ,gas Tube Arrester,surge Protector,cable Surge Protector,surge Voltage ProtectorNegotiableMOQ: 1 Piece -
N Male to Female ,2.5G ,50ohm,gas Tube Arrester,surge Protector,cable Surge Protector,surge Voltage ProtectorNegotiableMOQ: 1 Piece
-
N Male to Female Lightning Arrester With Flange , Surge Protectors,lightning ArresterNegotiableMOQ: 1 Piece
-
N Male to Male Lightning Arrester , Surge Protectors,lightning ArresterNegotiableMOQ: 1 Piece
-
N Female With Bukhead to U.FL(IPX) Connector for 1.13 Cable,cable Assembly ,patch Cord ,pigtailNegotiableMOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Jingchengnuo
Model Number
N-KKY-G-M-1
Type
Other
Application
RF
Gender
Other
MATERIALS & PLATING
|
Description |
Material |
Surface Plating |
Remark |
1 |
Shell/Body |
BRASS |
NICKEL |
|
2 |
Contact |
PHOSPHOR BRONZE |
SILVER |
|
3 |
Insulator |
PTFE |
|
|
4 |
Gas discharge tube |
- |
- |
230V |
ELECTRICALCHARACTERISTICS
|
Item |
Technical Data |
1 |
Impedance |
50ohm |
2 |
Frequency range max |
DC-2.5 GHz |
3 |
Dielectric Withstanding Voltage |
2500V (RMS) |
4 |
Contact Resistance |
Center conductor ≤1m ohm, Outer conductor ≤ 1m ohm |
5 |
Insulation Resistance |
≥5000M ohm |
6 |
VSWR. |
≤1.2 |
7 |
IL |
≤0.2dB |
MECHANICAL CHARACTERISTICS
1 |
Mating |
5/8”-24UNEF-2A |
2 |
Durability |
≥ 500 cycles |
ENVIRONMENTAL CHARACTERISTICS
1 |
Temperature range |
- 40°C to +85 °C |
