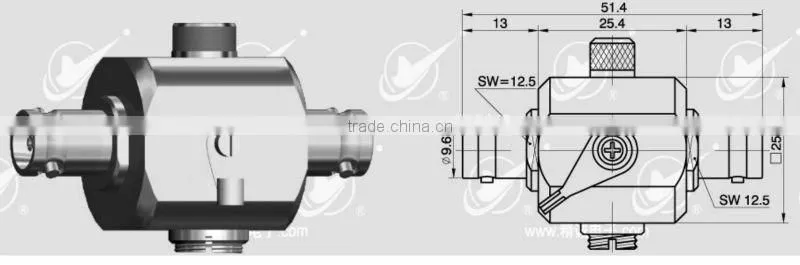

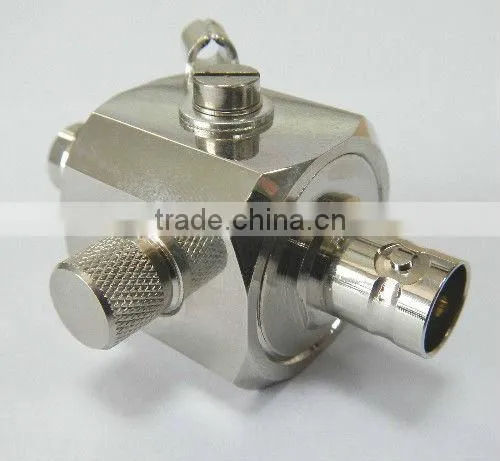

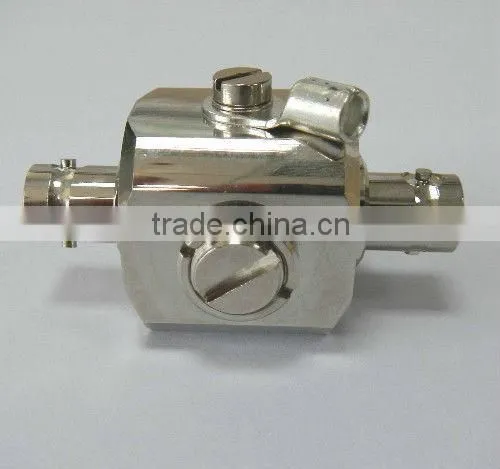

Help CenterBNC Female to Female, Lightning Arrester, Lightning Protector
Related Products
-
SMA Lighting Arrester, Female to MaleNegotiableMOQ: 10 Pieces -
RF Connector, N Female to N Female, Bulkhead, Lightning Arrester, Surge ProtectorNegotiableMOQ: 10 Pieces
-
SMA Lightning Arrester, Female to FemaleNegotiableMOQ: 10 Pieces
-
DIN Female to DIN Female, 90V Gas Tube, 7/16 Lightning ArresterNegotiableMOQ: 10 Pieces
-
7/16 DIN Male to Female, Lightning ArresterNegotiableMOQ: 10 Pieces
Lighting strike by lighting means a test to the radio equipment. Perhaps in a few microseconds instant, the voltage of surge can be as the dozens kilovolt/meter. The whole system will load enormous, and bring the damage to the equipment as a consequence. Our company produces arresters will meet the requirement of switching voltage. It is an essential selection and a safe-guard accessory when build the base station. Correct exertion is a guarantee to the high-efficient system.
GAS TUBE DISCHARGE TYPES
Utilizing special gas to be in charge of discharging, the principle suppress the too high voltage.
When the wave wells up to the regulation that the voltage is greater than the gas and in charge of , gas in charge of discharge earth connection too high voltage, protect the apparatus systematically.
Under the normal situation, it will not influence the systematic work.
MATERIALS & PLATING
|
Description |
Material |
Surface Plating |
Remark |
1 |
Shell/Body |
BRASS |
Nickel |
|
2 |
Contact |
BRONZE |
CuSnZn3 |
|
3 |
Insulator |
PTFE |
- |
|
ELECTRICALCHARACTERISTICS
|
Item |
Technical Data |
1 |
Impedance |
50ohm |
2 |
Frequency range max |
DC-2 GHz |
3 |
Dielectric Withstanding Voltage |
1500V (RMS) |
4 |
Contact Resistance |
Center conductor ≤ 1.5m ohm, Outer conductor ≤ 1m ohm |
5 |
Insulation Resistance |
≥ 5000Mohm |
MECHANICAL CHARACTERISTICS
1 |
Mating |
bayonet lock |
2 |
Durability |
≥ 500 cycles |
ENVIRONMENTAL CHARACTERISTICS
1 |
Temperature range |
-40°C to +85 °C |
About us
1.Company Introduction
Our company occupies 13500 m field, where the building area is 12000 m. There are more than 300 employees, 15 % of them are engineers and technicians. We are professional in designing, developing, producing and sales of radio frequency coaxial connectors.
According to the national and professional standards(GB&JS), we produce all kinds of RF coaxial connector:
SMA, SMB, SMC, BNC, TNC, N, 7/16(L29), 1.6/5.6(L9),MCX, MMCX, SSMA, SSMB, SSMC, SMZ, MC CARD(C2), 1.0/2.3(CC4), FME, UHF, MINI UHF, F, RCA, TAC etc.
And assembly of antenna, cable-package, audio and video connector, big specification connector of feeder line.
All kinds of adapter, impedance converter, fixed attenuator, termination loading, arrester.
All kinds of RF coaxial cable—SYV, SFF, RG, semi-rigid, etc.
This is our website:
2.Our workplace and professional team
3.Company Glories
4.Packing Details
Remark
If you are interesting in any of our products, please feel free to contact with me!
Quotation and pictures will be sent to your email within 24 hours after receive your specific enquires.
