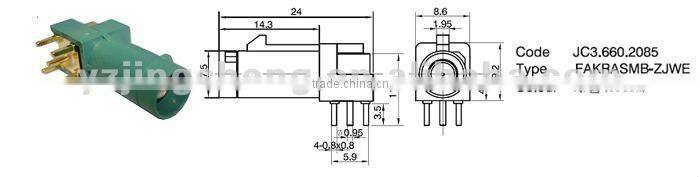

Help CenterFAKRA Connector SMB Plug
Related Products
Description
TYPE SMB products is one kind of low power miniature RF coaxial connectors with snap-on coupling mechanism. Characteristic impedance has two types:50ohm and 75ohm. The characteristic of connectors is in small volume,light weight, excellent electrical performance, easy to use. They are widely used in connection with RF coaxial cable in RF circuit of radio communication, meter, radio station, TV station, the base station of the microwave system.
Specification
Temperature Range -55~+155°C (PE Cable -40~+85°C)
Impedance 50Ω, 75Ω
Vibration 98m/S2 (10~2000Hz), 10g
Frequency Range DC-4GHz(50Ω), DC-2GHz(75Ω)
Insertion Loss 0.30dB/1.5GHz
Withstanding Voltage 1000V r.m.s at sea level
Working Voltage 335Vr.m.s at sea level
Insulation Resistance more than or equal to 1000 MΩ
Durability more than or equal to 500(cycles)
Engagement force 8~63N
Disengagement force 8~63N
Contact resistance:
Center Contact less than or equal to 6mΩ
Outer Contact less than or equal to 1mΩ
Voltage Standing Wave Ratio:
Straight flex cable less than or equal to 1.35/3GHz
Right angle flex cable less than or equal to 1.45/1GHz
About us
1.Company Introduction
Our company occupies 13500 m field, where the building area is 12000 m. There are more than 300 employees, 15 % of them are engineers and technicians. We are professional in designing, developing, producing and sales of radio frequency coaxial connectors.
According to the national and professional standards(GB&JS), we produce all kinds of RF coaxial connector:
SMA, SMB, SMC, BNC, TNC, N, 7/16(L29), 1.6/5.6(L9),MCX, MMCX, SSMA, SSMB, SSMC, SMZ, MC CARD(C2), 1.0/2.3(CC4), FME, UHF, MINI UHF, F, RCA, TAC etc.
And assembly of antenna, cable-package, audio and video connector, big specification connector of feeder line.
All kinds of adapter, impedance converter, fixed attenuator, termination loading, arrester.
All kinds of RF coaxial cable—SYV, SFF, RG, semi-rigid, etc.
This is our website:
2.Our workplace and professional team
3.Company Glories
4.Packing Details
Remark
If you are interesting in any of our products, please feel free to contact with me.
Tel: +86-755-83747911
Fax: +86-755-83747926
Email: sale001 yzjingcheng com
Online Service:
Skype: yzjingcheng002
MSN: yzjingcheng002 hotmail com
Alibaba: cn1001092421
Quotation and pictures will be sent to your email within 24 hours after receive your specific enquires.
