New 3-in-1 Automatic Hot Fruit Juice (tea) Filling Machine (hot Sale)

New 3-in-1 Automatic Hot Fruit Juice (tea) Filling Machine (hot Sale) photo-1
US$ 5,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V/220V
Power 4.5kw
Place of Origin Jiangsu, China
Brand Name hyford, hyford
Model Number KDGF
Dimension(L*W*H) 2230*1630*2250mm
Weight 2200kg
Certification CE /ISO /SGS
After-sales Service Provided Engineers available to service machinery overseas

New 3-in-1 automatic hot fruit juice (tea) filling machine (hot sale)

Product Description



The complete  production system including:

  • water treatment system
  • juice processng systm
  • juice filling line
  • packing line

We can supply the complete line and any parts of the line according customer's needs.

Characteristics:

1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

2. It is very convenient to change sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology

3. It is equipped with temperature control system, the filling temperature can be set. When the supplied material temperature is higher or lower than the set one, it will auto stop. When the material temperature is lower than the set one, the material will be conveyed to the circulate system to treat it again to ensure the set temperature in filling.

4. Advanced programmable PLC is equipped to control the main machine.

5. Working speed can be adjusted by frequency conversion device.

6. Main electronic components are all from famous international enterprises

7. The liquid level is correct and the filling characteristics are steady.

Main Technical Paramenters:

Model:

RCGF18-18-6

RCGF24-24-8

RCGF32-32-12

RCGF40-40-12

Production Capacity :500ml

5000

8000

12000

15000

Suitable Bottle Standard :(mm)

150-340

Suitable Cap Standard :(mm)

50-110

Filling Temperature :

80°-90°

Filling Pressure :(Mpa)

0.2-0.25

Installed Capacity :(L)

3.5

4

6

8

Overall Size L×W×H(mm)

2400×1800×2350

2800×2200×2350

3600×2650×2350

3800×2950×2400

Total Weight :(kg)

3200

4200

5200

6200





Product Pictures

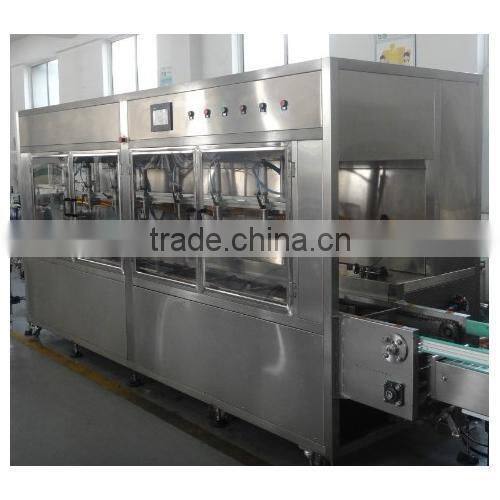

 New 3-in-1 automatic hot fruit juice (tea) filling machine (hot sale)

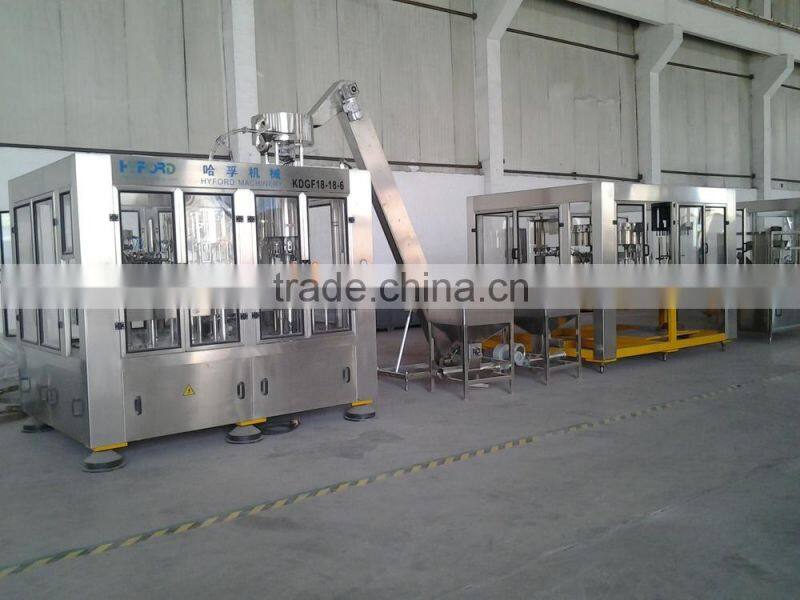

 New 3-in-1 automatic hot fruit juice (tea) filling machine (hot sale)



Packaging & Shipping

 New 3-in-1 automatic hot fruit juice (tea) filling machine (hot sale)
