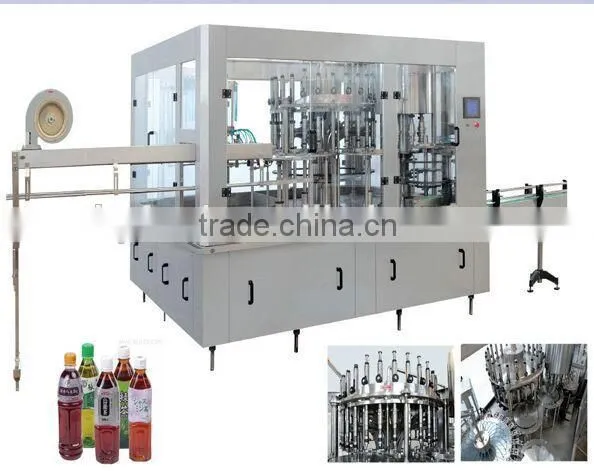

Fruit juice bottle Filling Machine
The complete juice hot filling production system including:
- water treatment system
- juice processng systm
- juice filling line
- packing line
We can supply the complete line and any parts of the line according customer's needs.
Characteristics:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology
3. It is equipped with temperature control system, the filling temperature can be set. When the supplied material temperature is higher or lower than the set one, it will auto stop. When the material temperature is lower than the set one, the material will be conveyed to the circulate system to treat it again to ensure the set temperature in filling.
4. Advanced programmable PLC is equipped to control the main machine.
5. Working speed can be adjusted by frequency conversion device.
6. Main electronic components are all from famous international enterprises
7. The liquid level is correct and the filling characteristics are steady.
Main Technical Paramenters:
Model: |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-12 |
RCGF40-40-12 |
Production Capacity :500ml |
5000 |
8000 |
12000 |
15000 |
Suitable Bottle Standard :(mm) |
150-340 |
|||
Suitable Cap Standard :(mm) |
50-110 |
|||
Filling Temperature : |
80°-90° |
|||
Filling Pressure :(Mpa) |
0.2-0.25 |
|||
Installed Capacity :(L) |
3.5 |
4 |
6 |
8 |
Overall Size L×W×H(mm) |
2400×1800×2350 |
2800×2200×2350 |
3600×2650×2350 |
3800×2950×2400 |
Total Weight :(kg) |
3200 |
4200 |
5200 |
6200 |
