Specifications
Carbonated Drink Filling machine1.Product: carbonated drink
2.Capacity: 3000-30000b/h(500ml)
3.PLC control, touch screen

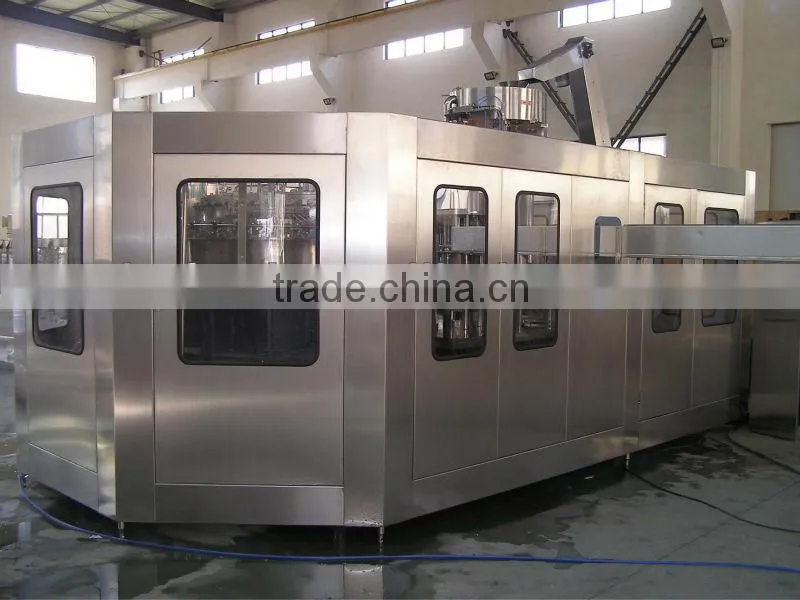

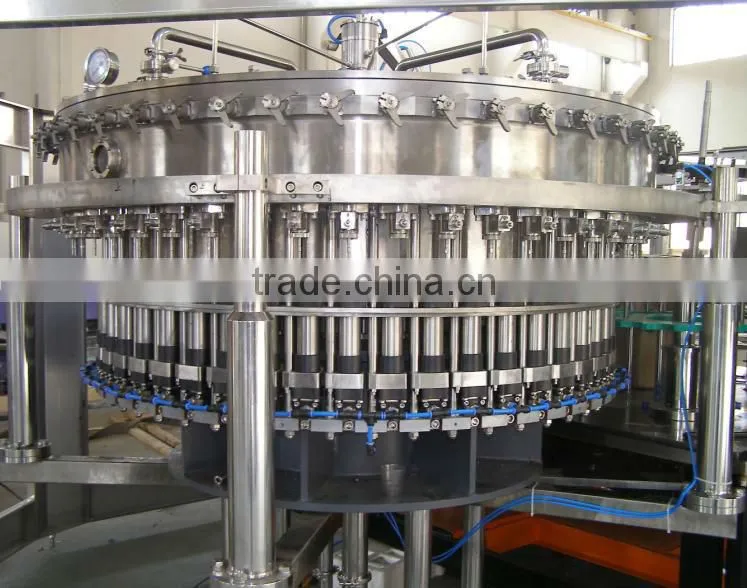

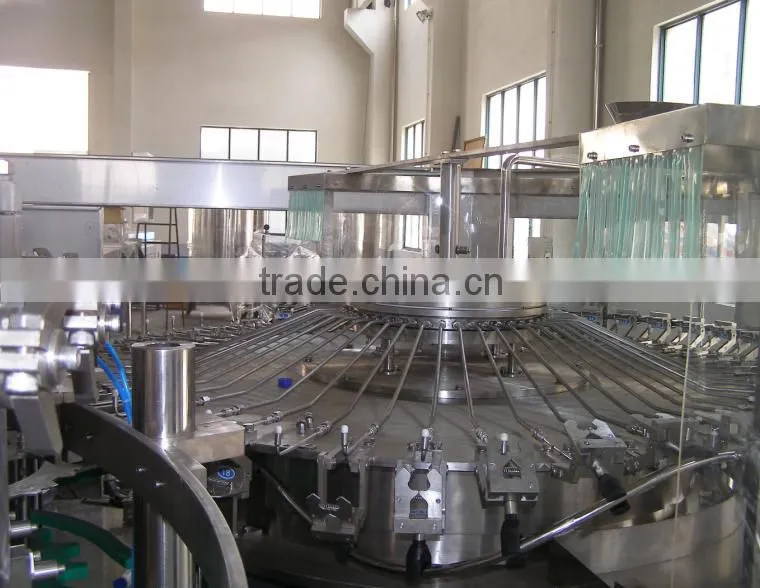

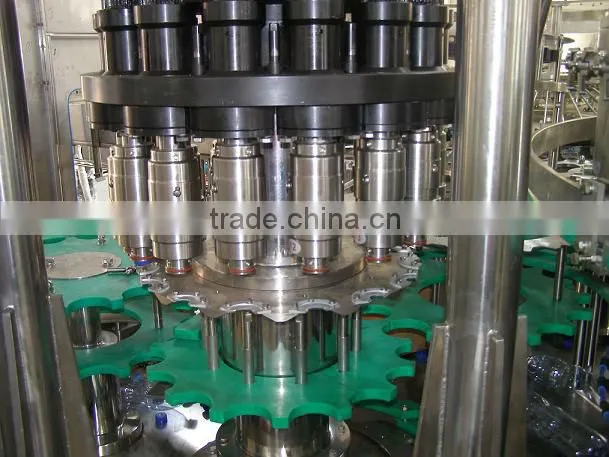

Carbonated Drink Filling Machine (DGCF 50-50-15)
Introduction:
This machine contains washing, filling and capping with complete automation. It is suitable for filling all kinds of carbonated drinks such as coco cola, soda water etc into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.
Main Parameters
| Model | Washing Heads | Filling Heads | Capping Heads | Production Capacity (B/h 500ml) | Main Motor Power (KW) |
| DGCF18-18-6 | 18 | 18 | 6 | 5000 | 3.5 |
| DGCF24-24-8 | 24 | 24 | 8 | 8000 | 3.8 |
| DGCF32-32-10 | 32 | 32 | 10 | 12000 | 5.5 |
| DGCF40-40-10 | 40 | 40 | 10 | 15000 | 6 |
| DGCF50-50-15 | 50 | 50 | 15 | 18000 | 7.5 |
| DGCF60-60-15 | 60 | 60 | 15 | 24000 | 13.5 |
| DGCF72-72-16 | 72 | 72 | 16 | 28000 | 15 |
Main Features:
Air Conveyor connectes with bottle-in starwheels. Bottle neck holding transferred.
Clamp transferring technology varied bottle types.
With little abrasion. Stable Transferring. Easy to change bottles.
With ring type pressure bearing hydraulic cylinder.
With high filling speed and exact liquid level.
Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.
The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles. Easy to operate and maintain.
PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.
