Specifications
Mineral Water Plant Machinery1.Product: water
2.Bottle: PET
3.Capacity: 2000-20000b/h
4.PLC,touch screen, SS304
Mineral Water Plant Machinery
Introduction of the Mineral Water Plant Machinery
This mineral water plant machinery contains washing, filling and capping with complete automation. It is suitable for filling water, such as mineral water, pure water, still water etc into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.
Main Parameters of CGF Series Mineral Water Plant Machinery
| Model | Washing Heads | Filling Heads | Capping Heads | Production Capacity (B/h 500ml) | Main Motor Power (KW) |
| CGF18-18-6 | 18 | 18 | 6 | 5000-7000 | 3.5 |
| CGF24-24-8 | 24 | 24 | 8 | 6000-8000 | 3.8 |
| CGF32-32-10 | 32 | 32 | 10 | 8000-12000 | 5.5 |
| CGF40-40-10 | 40 | 40 | 10 | 12000-15000 | 7.5 |
| CGF50-50-12 | 50 | 50 | 12 | 15000-20000 | 12 |
| CGF60-60-15 | 60 | 60 | 15 | 20000-25000 | 13.5 |
| CGF72-72-16 | 72 | 72 | 16 | 25000-30000 | 15 |
Main Features of the Mineral Water Plant Machinery
1.Air Conveyor connectes with bottle-in starwheels. Bottle neck holding transferred.
2.Clamp transferring technology varied bottle types.
3.With little abrasion. Stable Transferring. Easy to change bottles.
4.With ring type pressure bearing hydraulic cylinder.
5.With high filling speed and exact liquid level
6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.
7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles. 8.Easy to operate and maintain.
9.PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

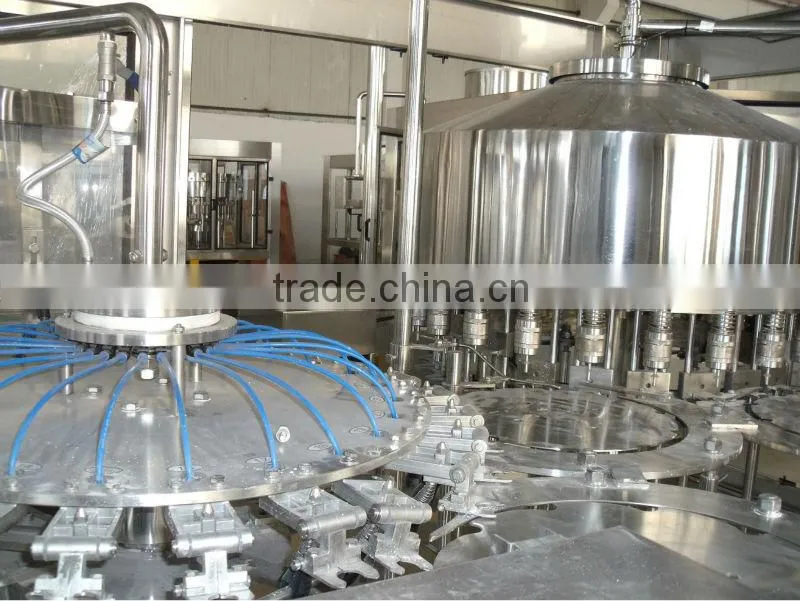

Washing Part

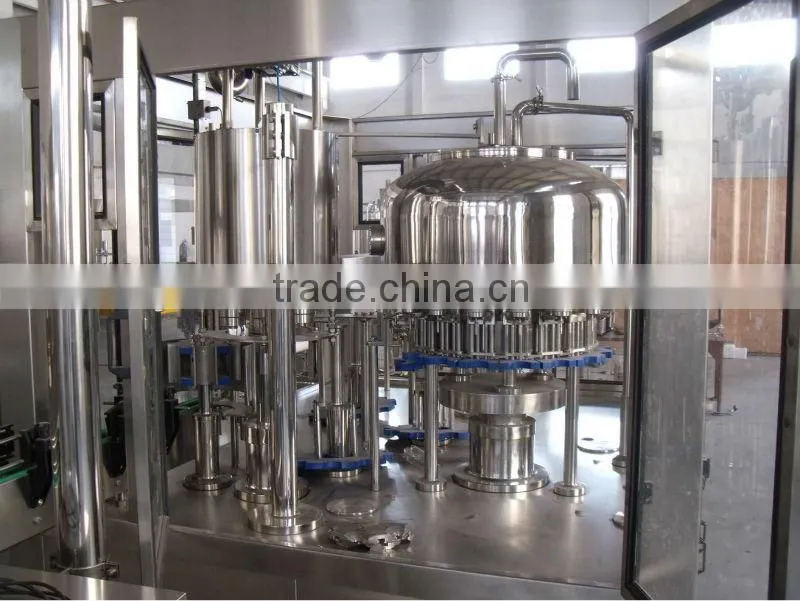

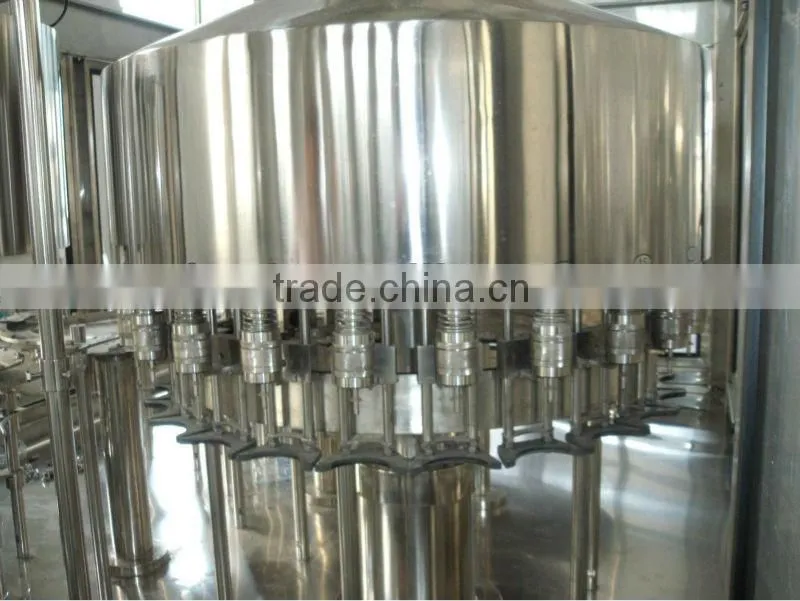

Filling Part
Capping Part

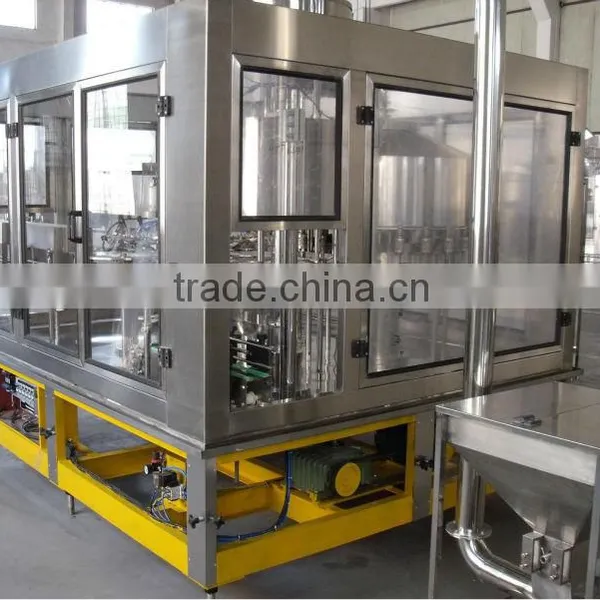

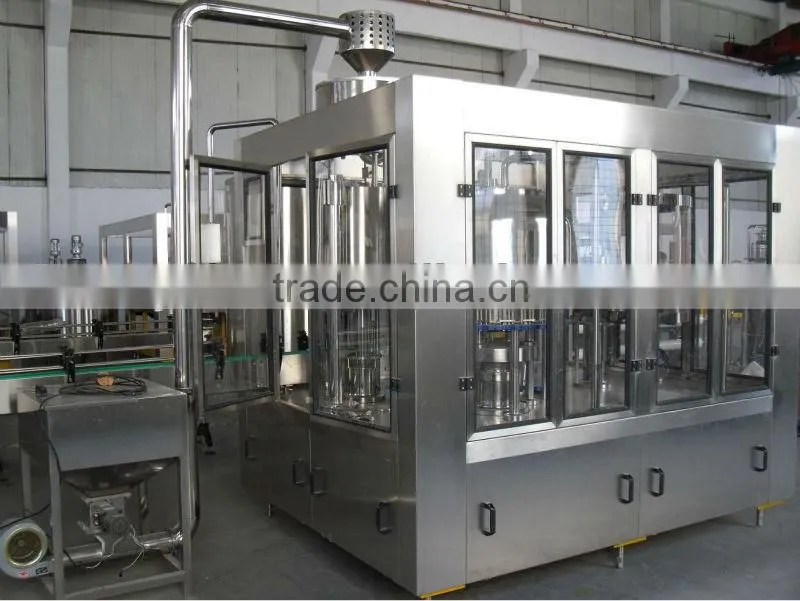

Side View
Factory, Workings and Packing
Hyford keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, Hyford owns a professional aftersale customer service team. Therefore, If you have any inquiries or questions, please visit our store, have a look other products and leave your message. Your message will be highly appreciated! Welcome to Hyford!
