Specifications
water filling machine1.Product: water
2.Bottle: Pet
3.Capacity: 3000-36000b/h(500ml)
4.PLC control, touch screen, SS304
CGF Series Automatic PET Bottle Water Filling Machine
Introduction of the Water Filling Machine
This water filling machine contains washing, filling and capping with complete automation. It is suitable for filling all kinds of water such as mineral water, pure water, still water and tab water into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.
Main Parameters of CGF Series Water Filling Machine
| Model | Washing Heads | Filling Heads | Capping Heads | Production Capacity (B/h 500ml) | Main Motor Power (KW) |
| CGF18-18-6 | 18 | 18 | 6 | 8000 | 3.5 |
| CGF24-24-8 | 24 | 24 | 8 | 10000 | 3.8 |
| CGF32-32-10 | 32 | 32 | 10 | 15000 | 5.5 |
| CGF40-40-10 | 40 | 40 | 10 | 18000 | 7.5 |
| CGF50-50-12 | 50 | 50 | 12 | 24000 | 12 |
| CGF60-60-15 | 60 | 60 | 15 | 28000 | 13.5 |
| CGF72-72-16 | 72 | 72 | 16 | 32000 | 15 |
Main Features of the Water Filling Machine
1.Air Conveyor connectes with bottle-in starwheels. Bottle neck holding transferred.
2.Clamp transferring technology varied bottle types.
3.With little abrasion. Stable Transferring. Easy to change bottles.
4.With ring type pressure bearing hydraulic cylinder.
5.With high filling speed and exact liquid level.
6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.
7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles. 8.Easy to operate and maintain.
9.PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc
Washing Part of the Water Filling Machine
Filling Part of the Water Filling Machine
Capping Part of the Water Filling Machine
Back View of the Water Filling Machine

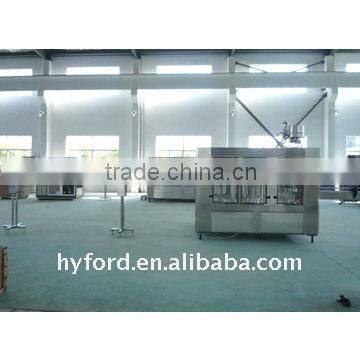

Factory, Workings and Packing
Hyford keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, Hyford owns a professional aftersale customer service team. Therefore, If you have any inquiries or questions, please visit our store,have a look other products and leave your message. Your message will be highly appreciated! Welcome to Hyford!
