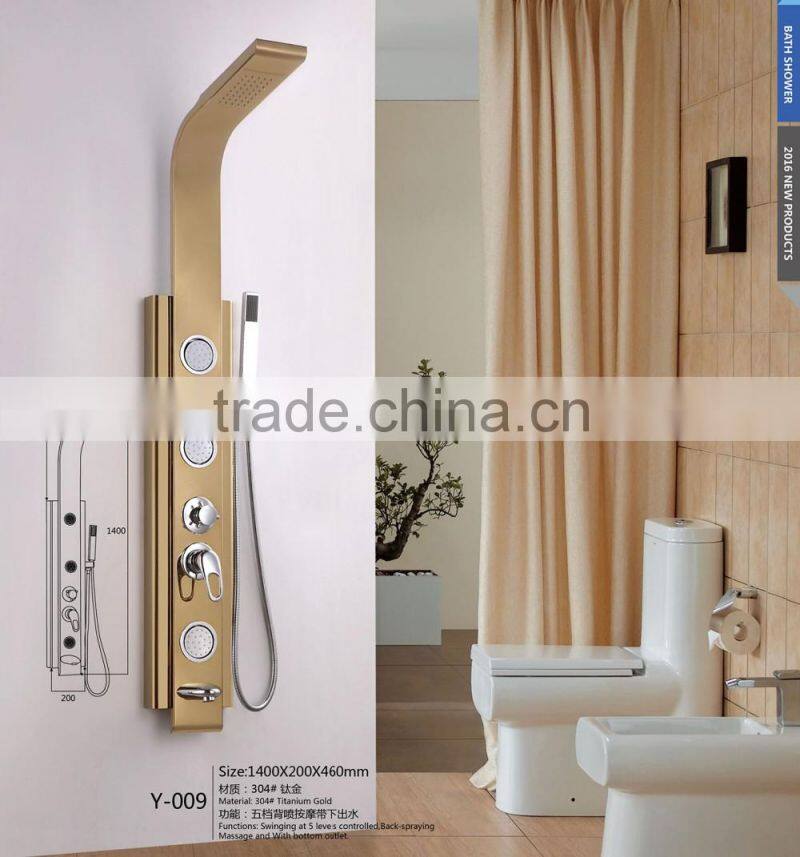

Building Materials Golden Set Column Shower Panel Y-009

building materials golden  set column shower panel

1.Name:shower panel

2.Model number:Y-009

3.Size:1400x200x460mm

4.Body material:304 stainless steel and no fingerprint

5.Body finished:brushed ,chromed mirror for select

6.Funtion: Rain shower,waterfallshower ,hand shower, massage jet and  faucet

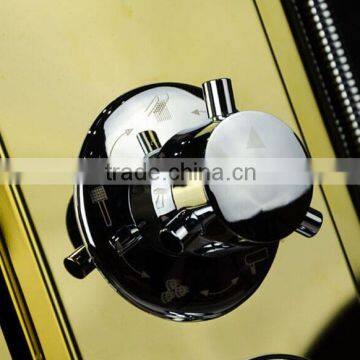

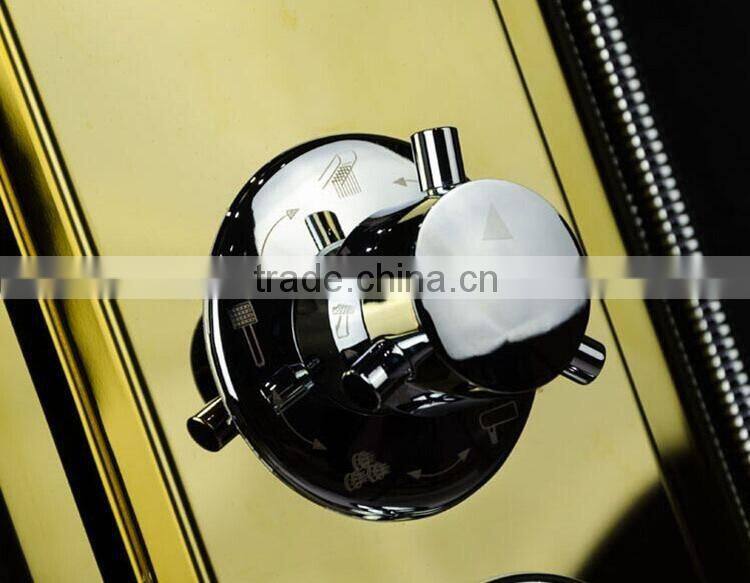

7.Two switches: multiunction switch and cold and hot water switch

8.Rain shower with 3 colors LED light: purple,red and green

9.1.5 meters S/S flexible hose

10.Hose inner material : epdm

11.Easy to install: Wall plates and hangers

Packing List

Advantage

-Stainless Steel Shower Panel. Steel Body not plastic.
-This high end bathroom shower unit is for people with great taste.
-Multi Functional Valve unit.This will allow the user to control multiple functions at the same time.
-Easy to Install in all Bathrooms
-Easy clean up

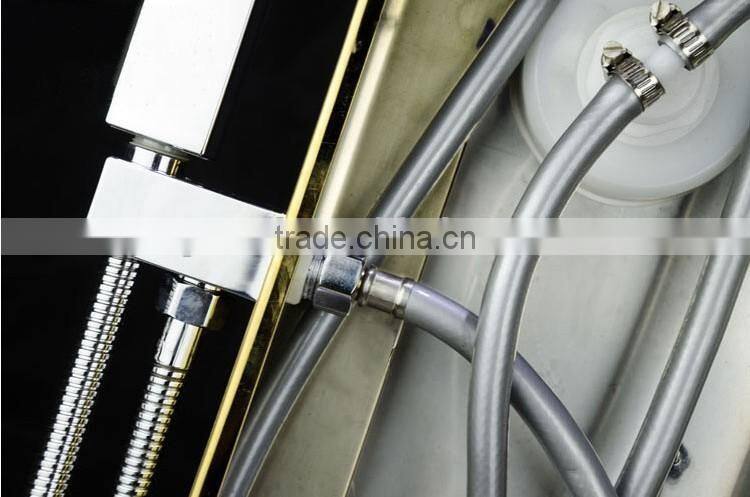

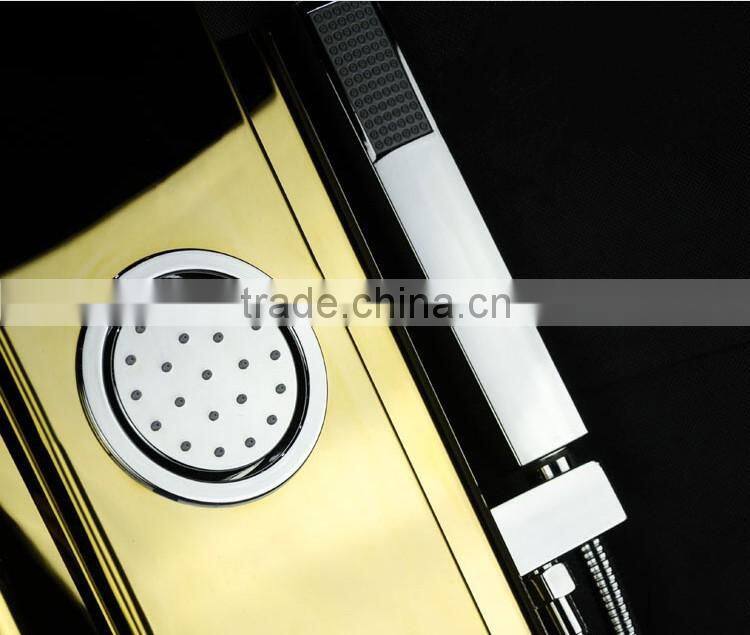

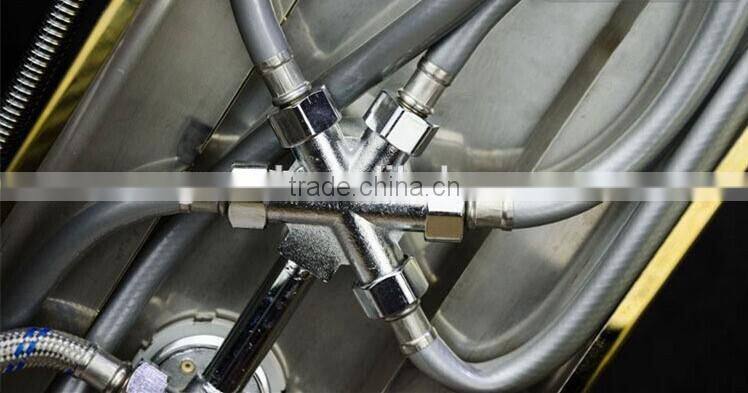

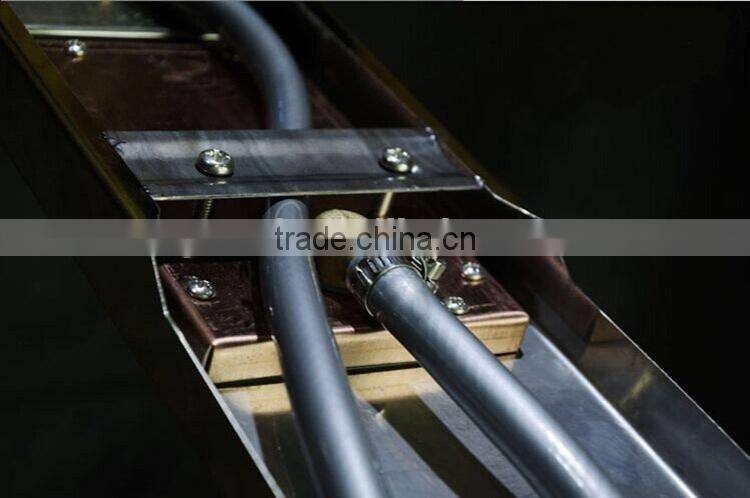

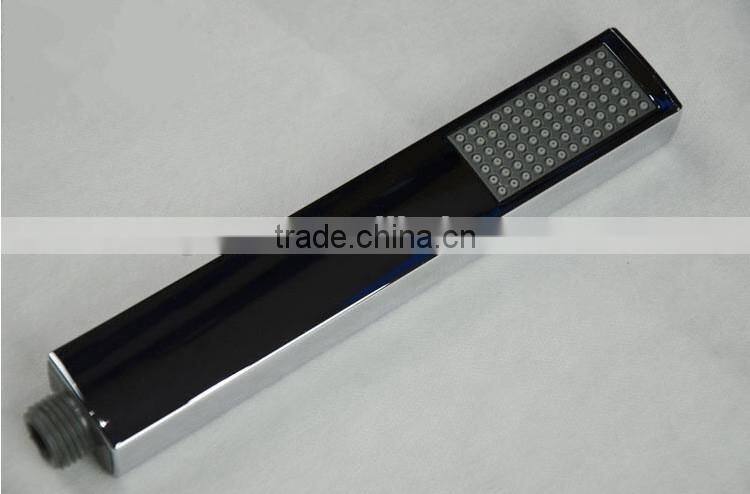

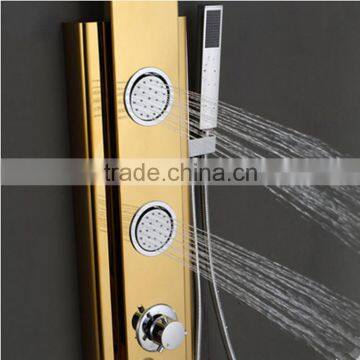

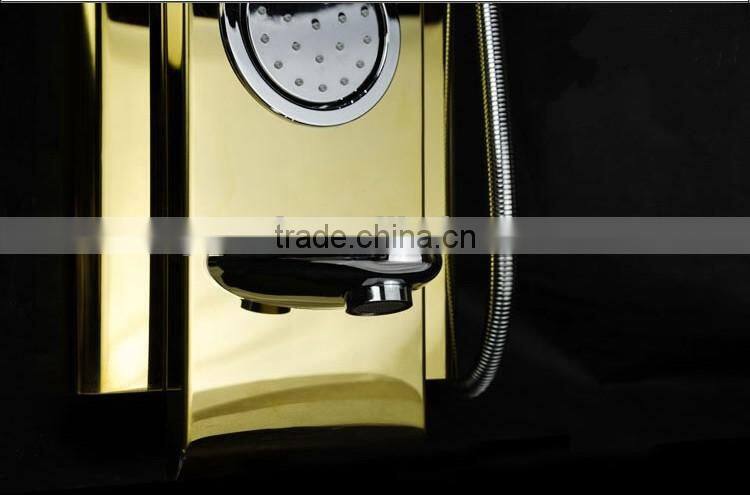

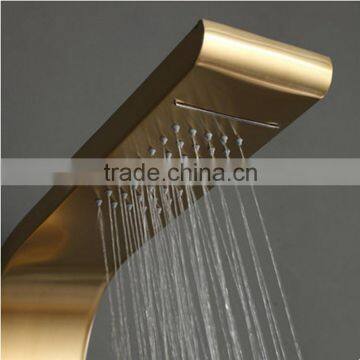

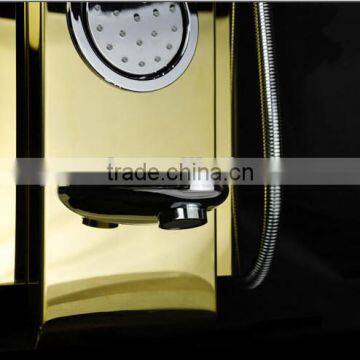

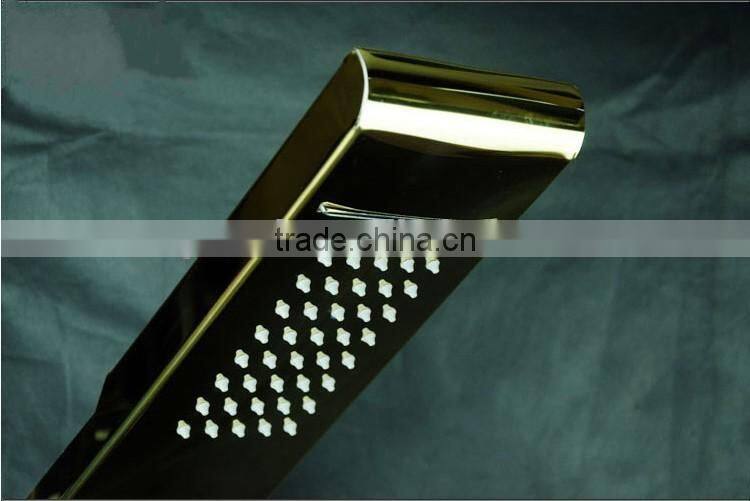

Detail photo

This high end bathroom shower unit is for people with great taste.

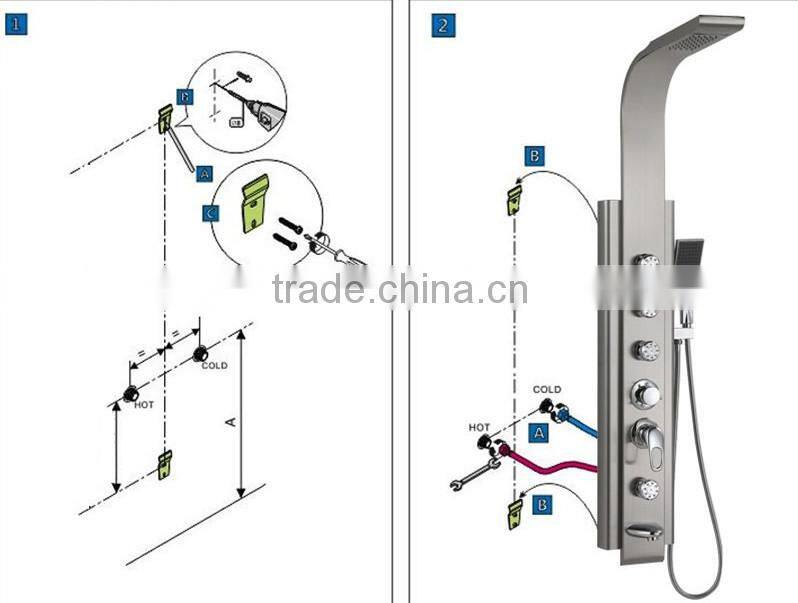

Fixing drawings

1) Combined with the center of hot and cold wall drainage holes and the height of the installation, then put the shower screen on the wall to fix the position of the hook.

2) Using percussion drill two holes on the wall, and then put the good plastic expansion pipe into the hole, then, susing a screwdriver to fix the position of the hook, and then the others.

3) Installed the bend in the hot and cold wall drainage holes on the wall, and connect the  hot and cold water pipe in the back of shower screen with the bend, final, use the tools tightened it up.

4) Adjusted the water pipe, and then  hung the shower screen on the wall, it done.

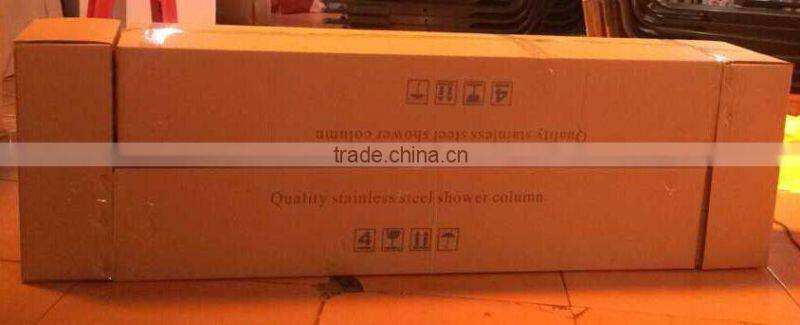

Packing

Two pieces pack like this to save room.
