Product Description:

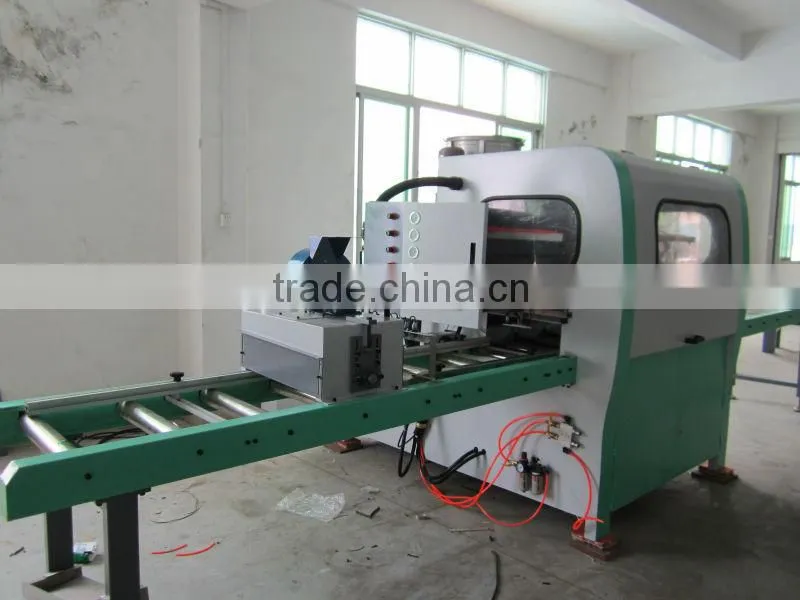

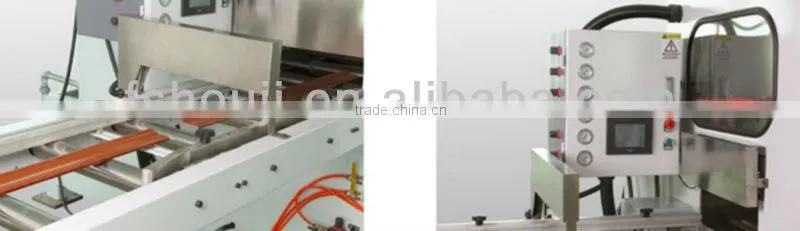

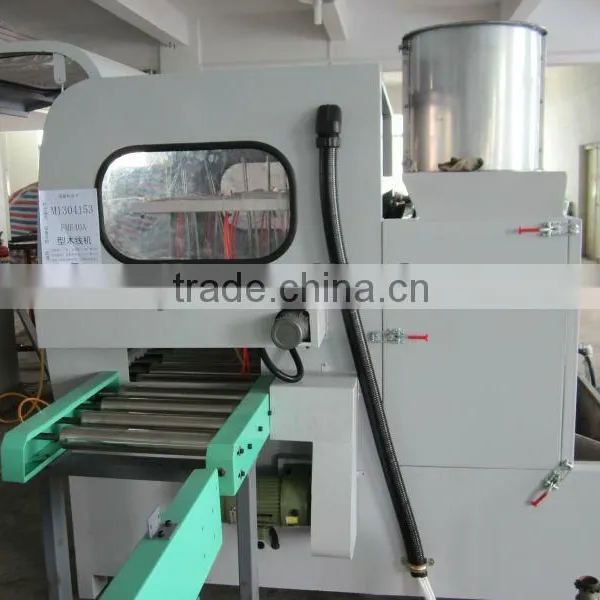

FME 40 (spray painting machine)
|
1. PLC controller controls each spray gun’s switch independently in order to save paint. 2. Automatic identification infrared sensor is provided to test the product’s length and width. PLC adjusts spray gun’s position automatically when the product's length and width are changeable. 3. The automatic spray gun is imported from Japan originally —Anest Iwata or Meiji spray gun. The spray gun's paint quantity and angles can be adjusted in advance. Each spray gun can be control separately. 4. Waste gas purification system is provided to release the waste gas created during the painting, whih can protect the enviroment from pollution in a large extent. 5. Stable paint supply is offered by a set high-capacity diaphragm pump and stabilizert to make the painting work more stable and paint change more convenience. 6. The conveyor’s speed can be frequency controlled to meet different painting requierments. 7. The paint recovery device can recycle 70%-80% wasted painting in order to improve the paint's use ratio. |
Standard Technique Parameters | |
Dimensions |
6.5*2.3*2.2 (m) |
Weight of the machine |
1000 kg |
Min processing length |
700 mm |
Max processing width |
70 - 300 mm |
Max processing height |
5 - 80 mm |
Conveying speed |
10 - 15 m/min |
Transmission power |
0.75 KW |
Fan power |
1.5 KW |
Pump power |
0.75 KW |
Working gun |
6 |
Gun caliber |
0.8/1.0/1.3 mm |
Types of paint |
PE, PU, UC, NC, UV, Waterborne paint |
The amount of paint used |
60-200g/ m² |
Air pressure |
0.6MPA |
Air flowing |
2400L/min |
Power supply |
380V 50HZ (three-phase four-wire power line power supply) |
Packing:
How to distinguish between genuine and fake:
My machine have the Patent certificate of the People's Republic of China as below:
The contact way of our company:
